Makita 18-Volt LXT Lithium-Ion 1/2 In. Brushless Sub-Compact Cordless Hammer Drill (Tool Only)

Model #XPH15ZB Item #360231 UPC 00088381733083
Tap to view
Product overview

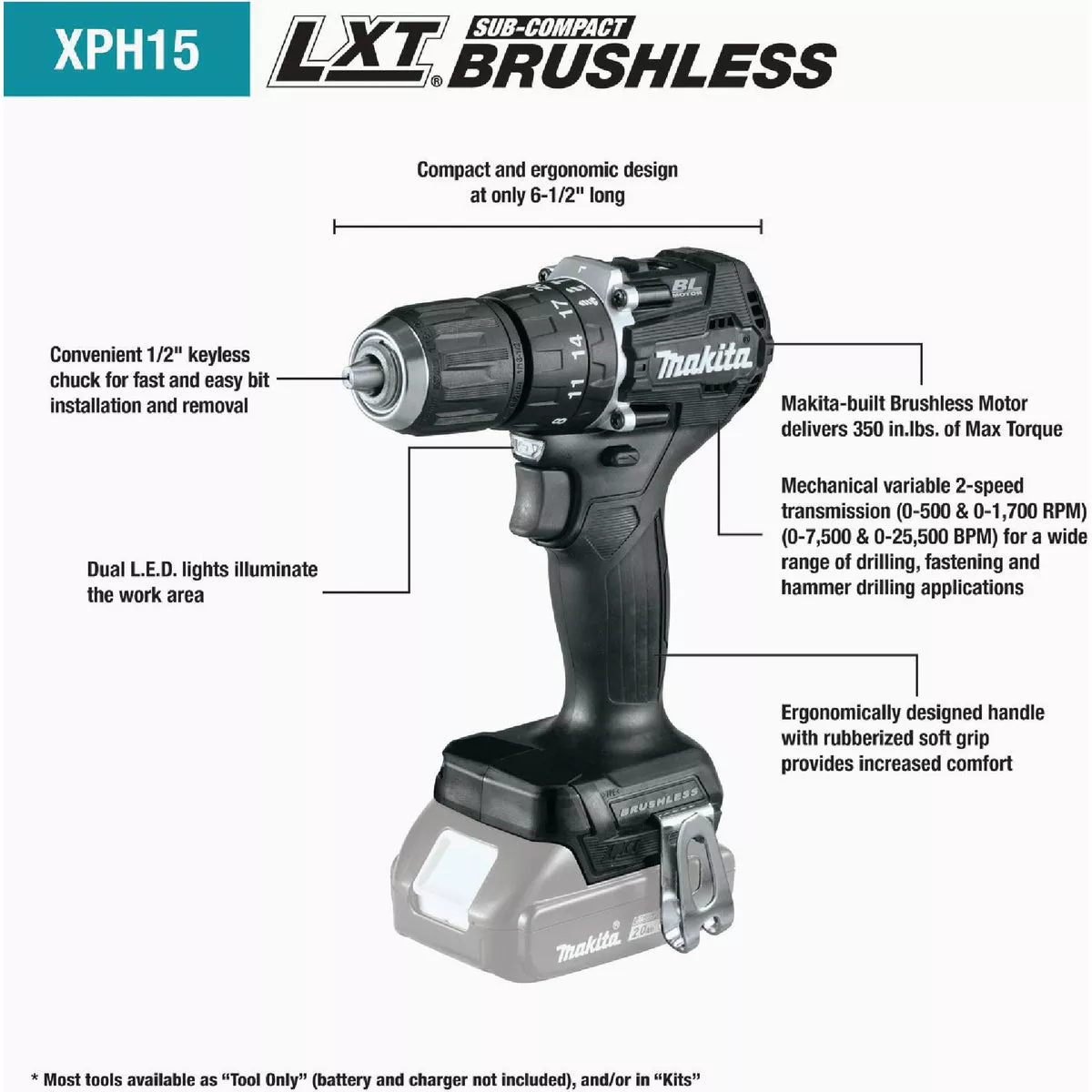

The 18V LXT Sub-Compact Brushless Hammer Driver-Drill Kit (XPH15ZB) is an ultra-compact drilling and driving solution with significantly less weight. The 18V Sub-Compact Hammer Driver-Drill offers the size and weight of lower voltage tools, but with the performance, power, and compatibility of 18-Volt. For drilling holes in concrete or masonry, set the tool to hammer mode which applies a percussive motion during drilling (for use with a masonry bit, sold separately). The XPH15ZB has an efficient brushless motor with two speed settings and dual LED lights to illuminate the work area. At only 6-1/2 In. long, it is an ultra-compact drilling and driving solution with superior comfort and handling. Tool Only - battery and charger not included.

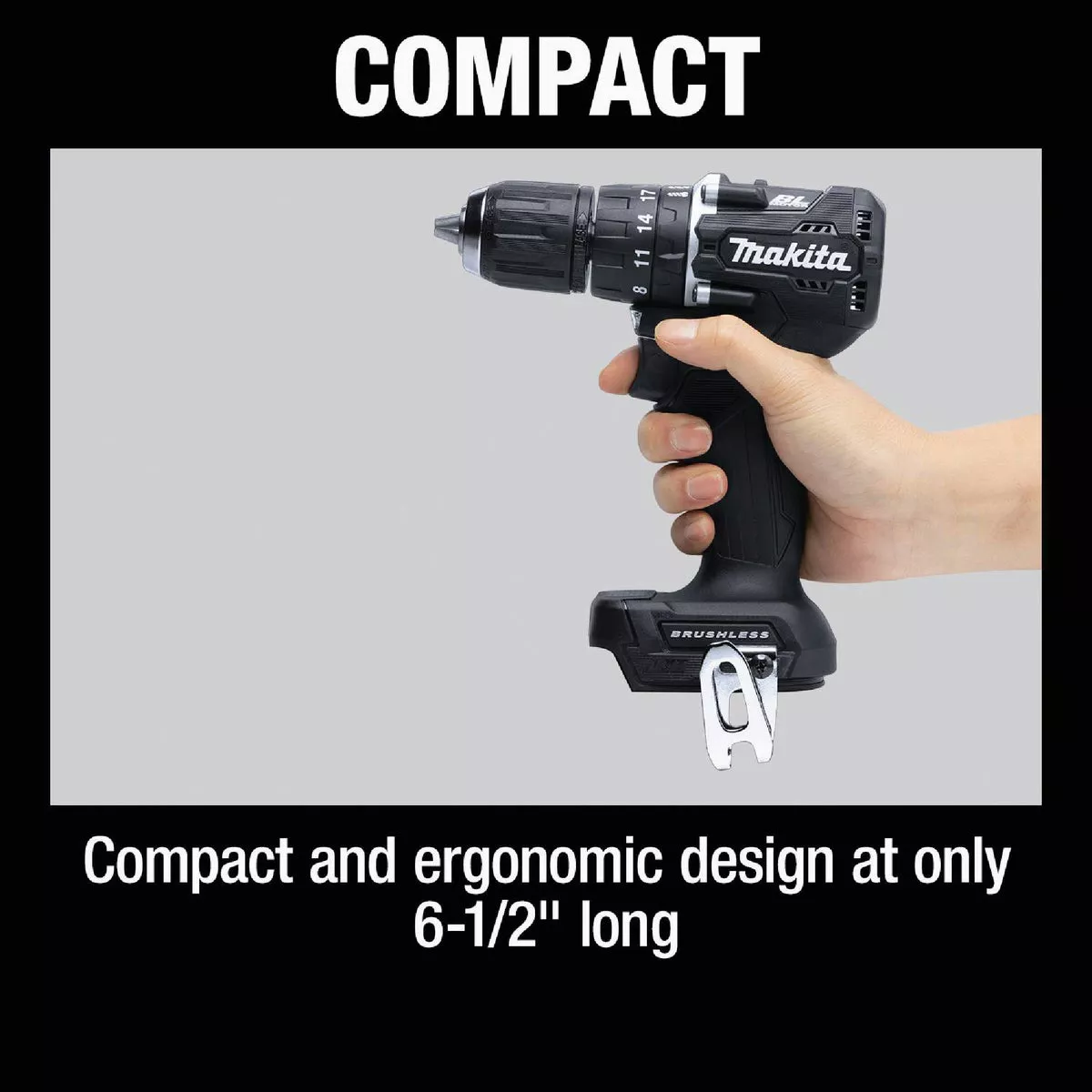

  • Compact and ergonomic design at only 6-1/2 In. long

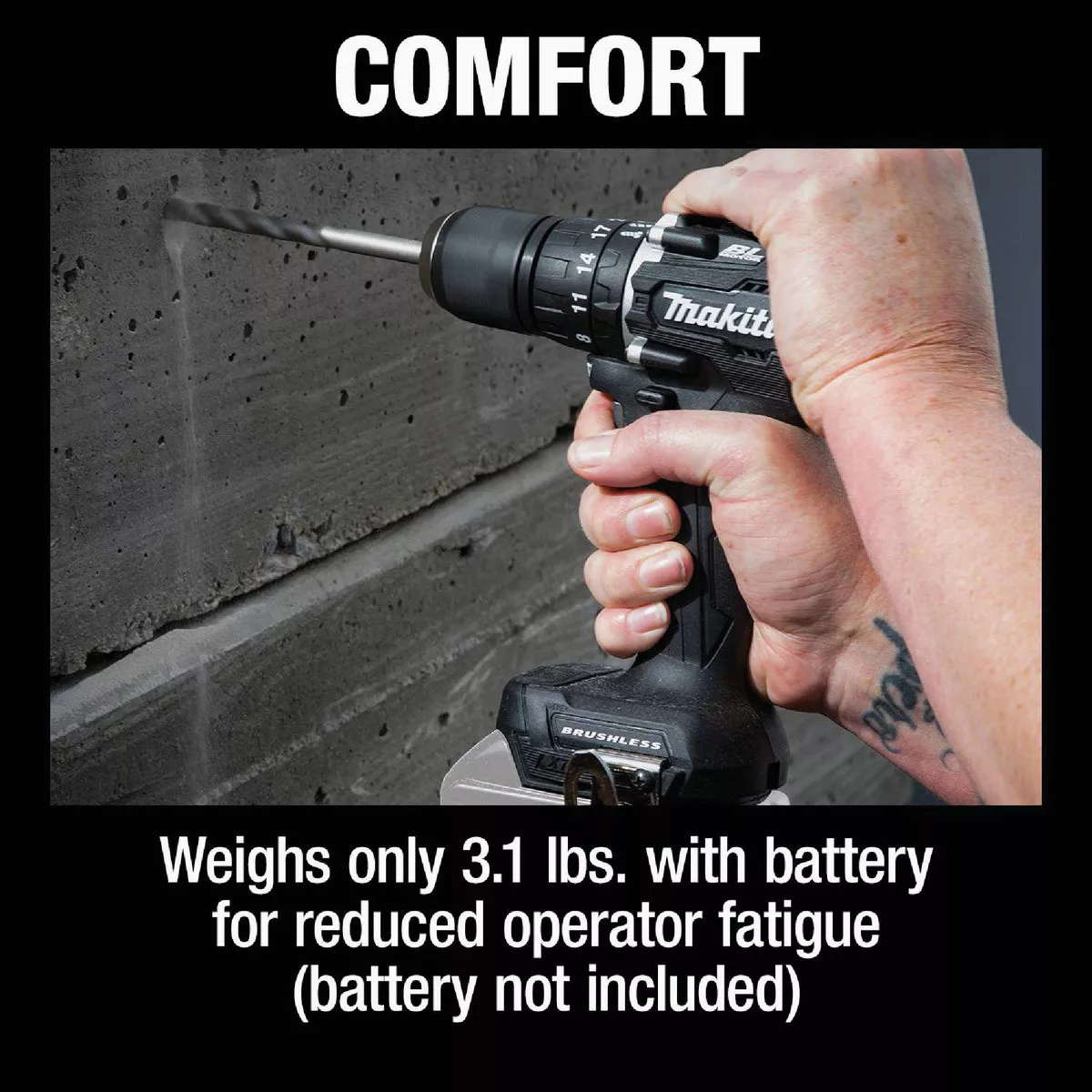

  • Weighs only 3.1 Lb. with battery for reduced operator fatigue (battery not included)
  • Ideal for working in tight spaces

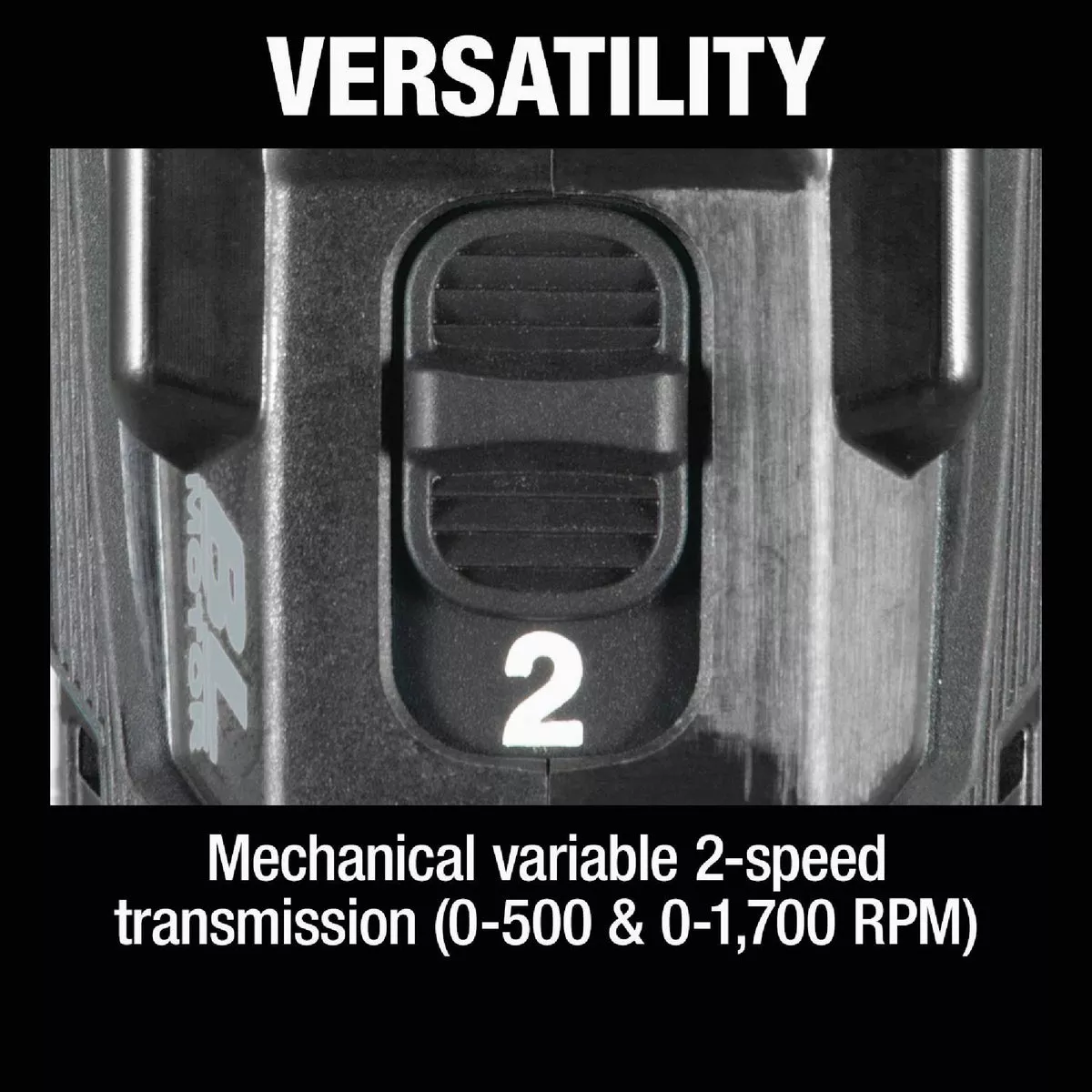

  • Mechanical variable 2-speed transmission (0-500 & 0-1,700 RPM) (0-7,500 & 0-25,500 BPM) for a wide range of drilling, fastening and hammer drilling applications

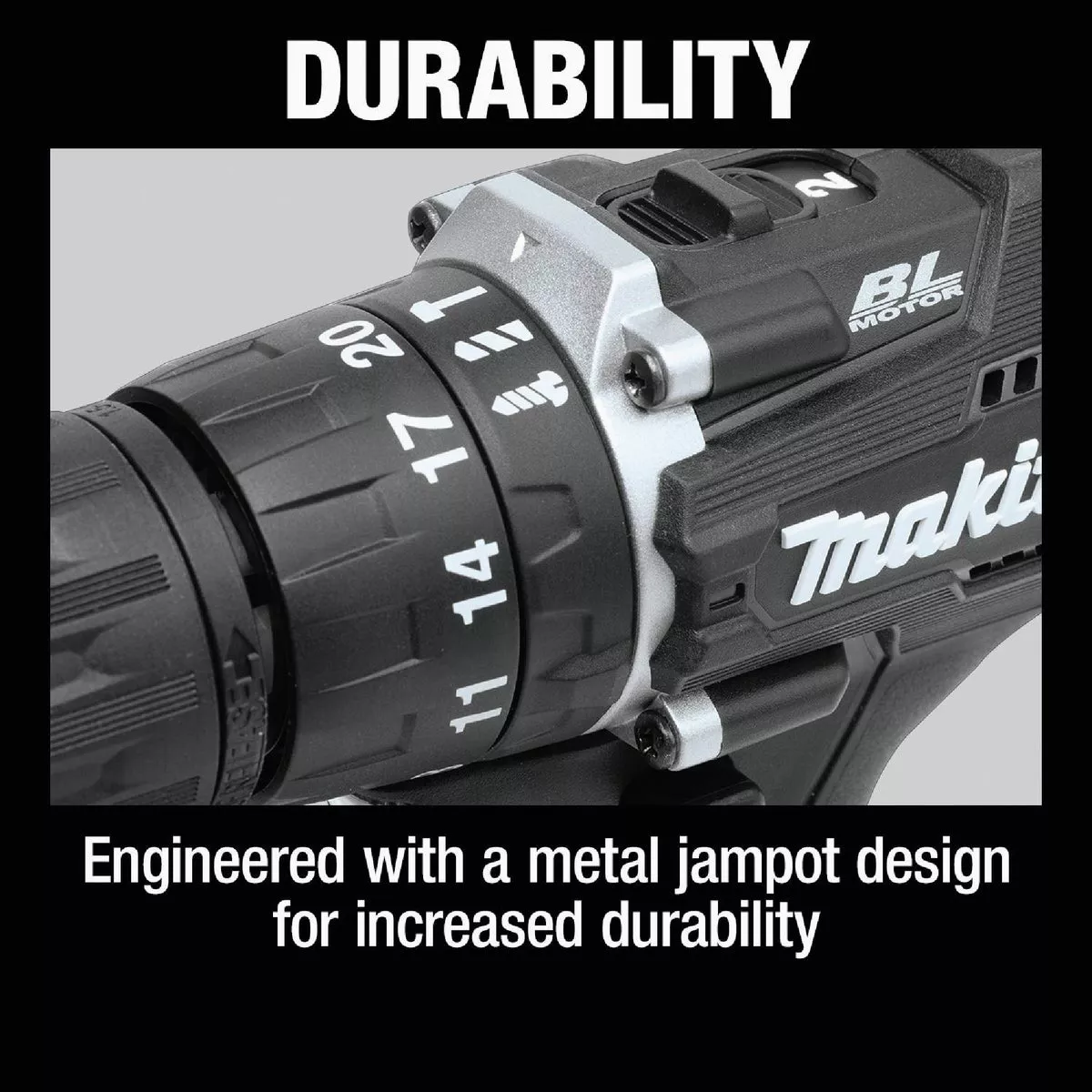

  • Engineered with a metal jampot design for increased durability
  • Dual LED lights illuminate the work area
  • Ergonomically designed handle with rubberized soft grip provides increased comfort
  • Makita-built Brushless Motor delivers 350 In./Lb. of Max Torque
  • The brushless motor eliminates carbon brushes, enabling the motor to run cooler and more efficiently for longer life
  • Only use genuine Makita 18V batteries and chargers

Product manuals and information

  • Buying Guides
  • Related Product Articles

    Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: lead from lead-based paints, crystalline silica from bricks and cement and other masonry products, and arsenic and chromium from chemically-treated lumber. Your risk from these exposures varies, depending on how often you do this type of work. To reduce your exposure to these chemicals: work in a well ventilated area, and work with approved safety equipment, such as those dust masks that are specially designed to filter out microscopic particles. For more information, visit

  • Request Safety Data Sheet (SDS)
Voltage 18
Weight 3.1 Lb.
Warranty 3 Year
Battery Type Lithium-Ion
Charger Included No
Corded/Cordless Cordless
Case Included No
Motor Type Brushless
Batteries Included No
Dimensions 6-1/2 In. L
Chuck Size 1/2 In.
Chuck Type Keyless
Torque 350 In./Lb.
Maximum Speed 1700 rpm
Impacts per Minute 25,500
Clutch Settings 20
Battery Platform Makita 18V LXT
Length (In.) 6.5
Weight (Lb.) 3.1
Brand Makita
UPC 00088381733083
