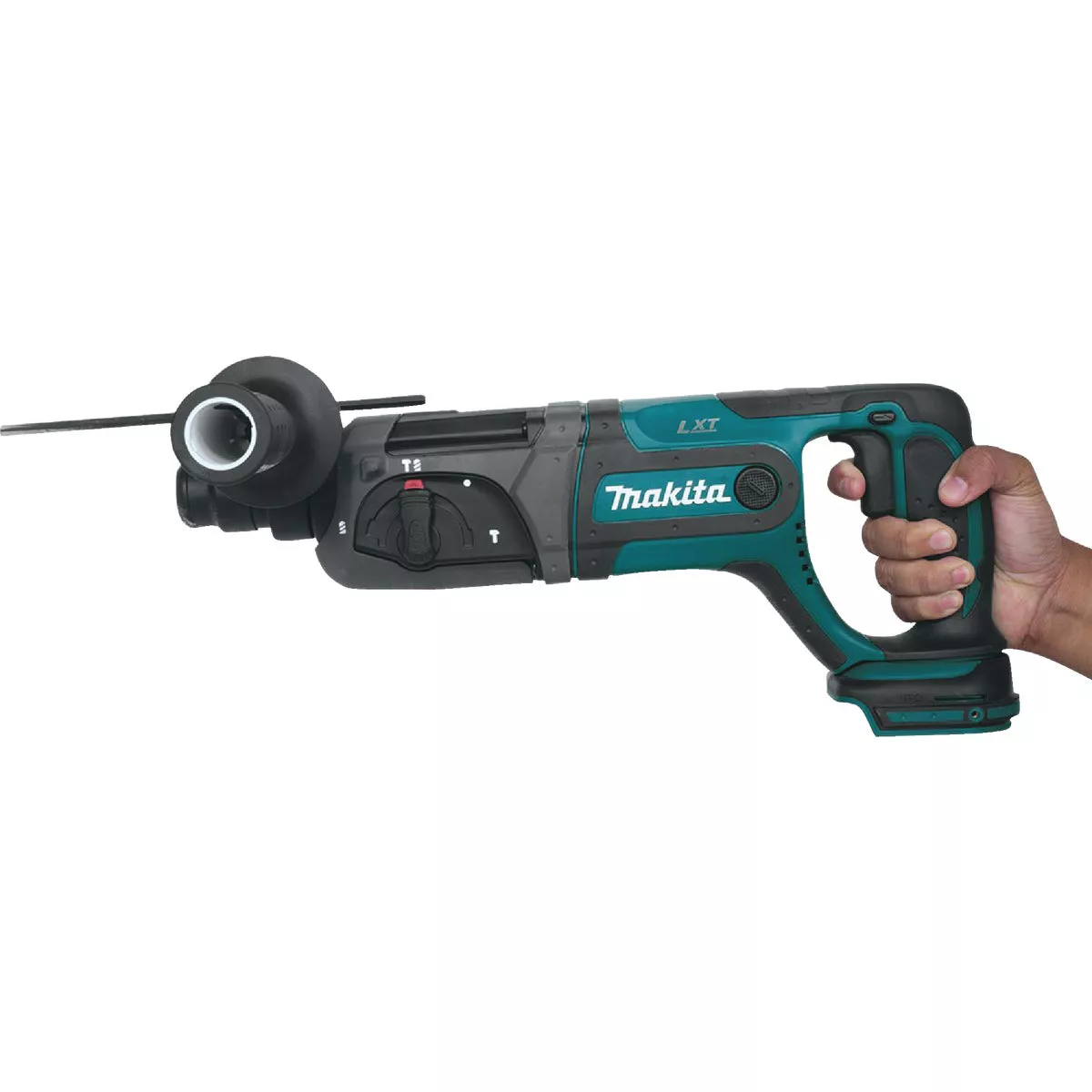

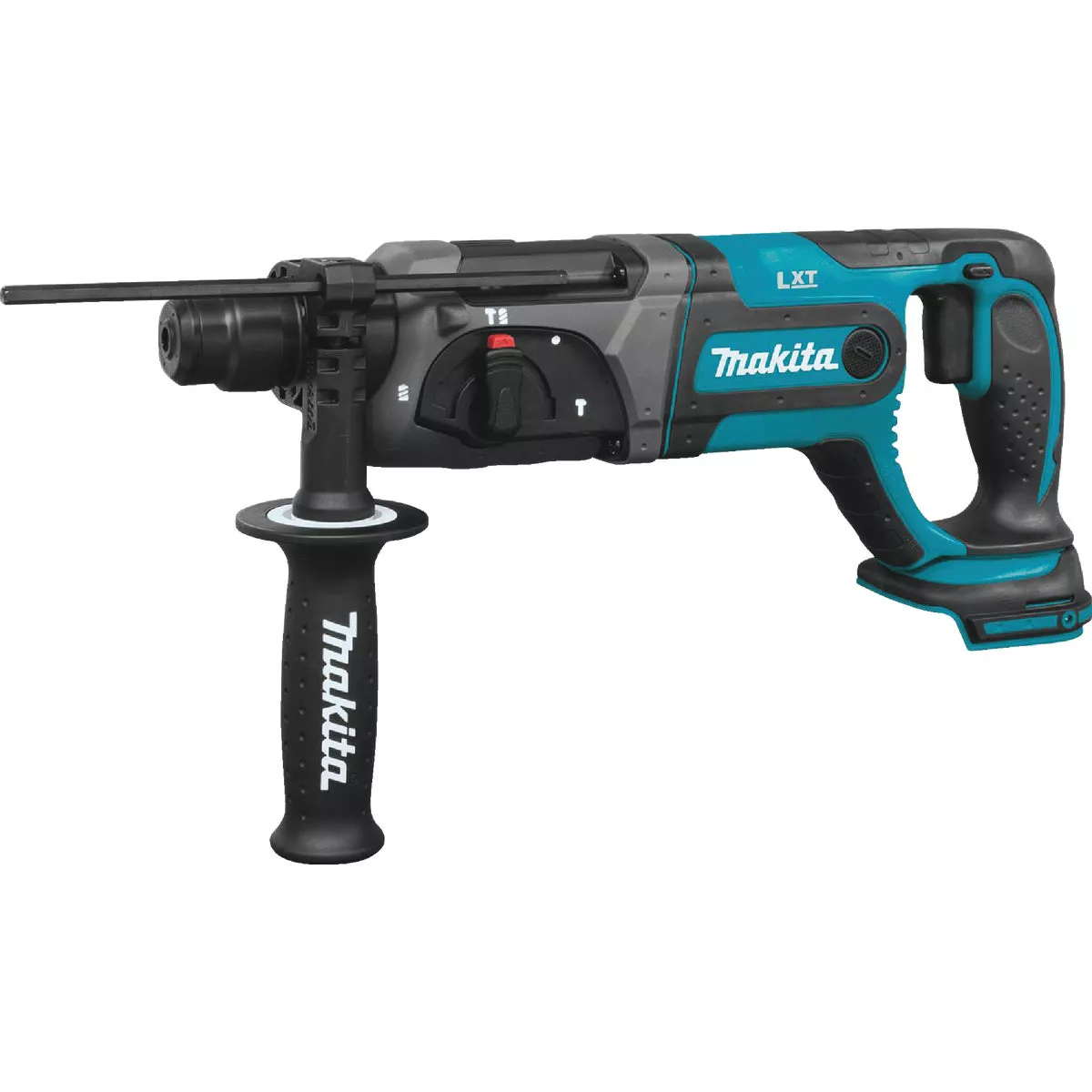

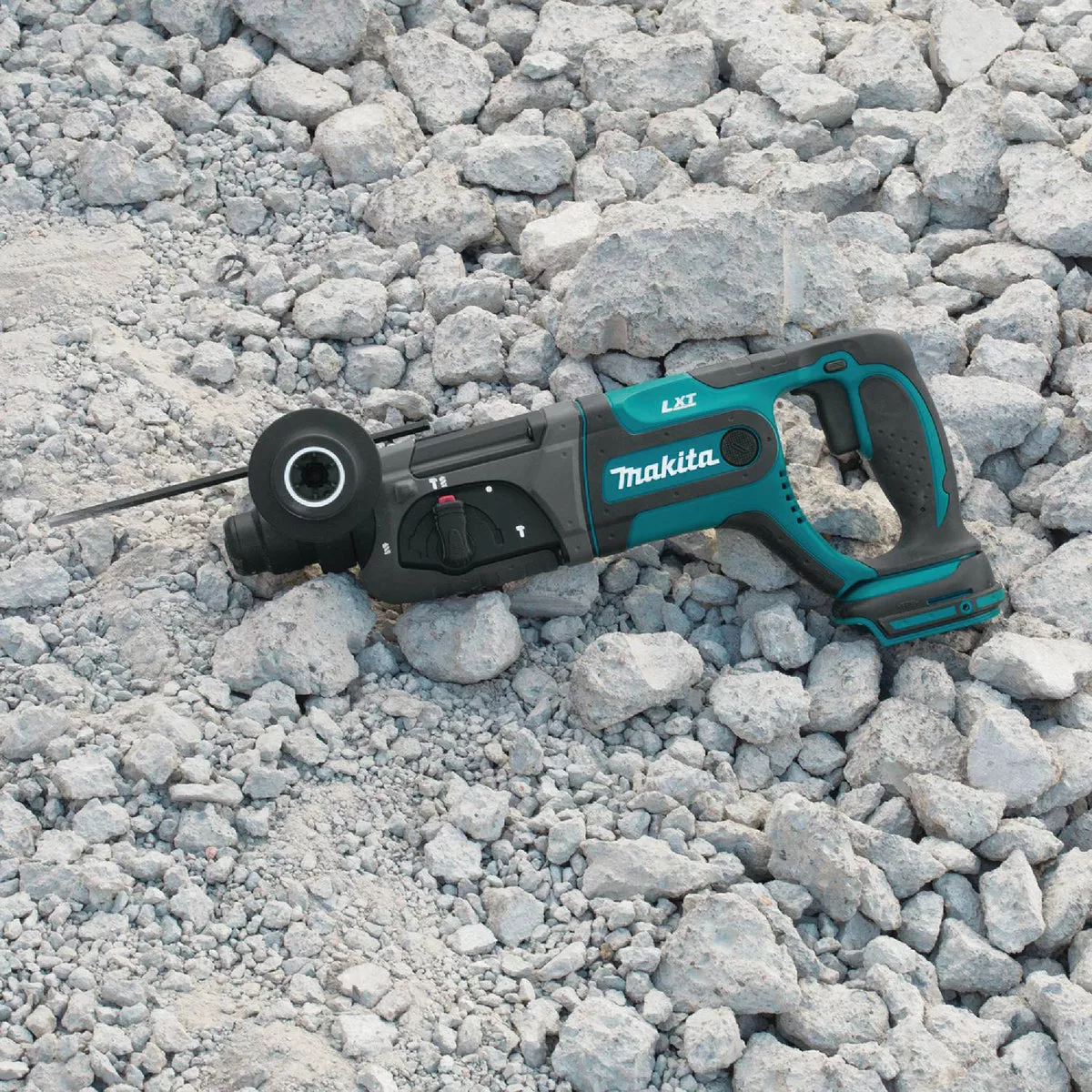

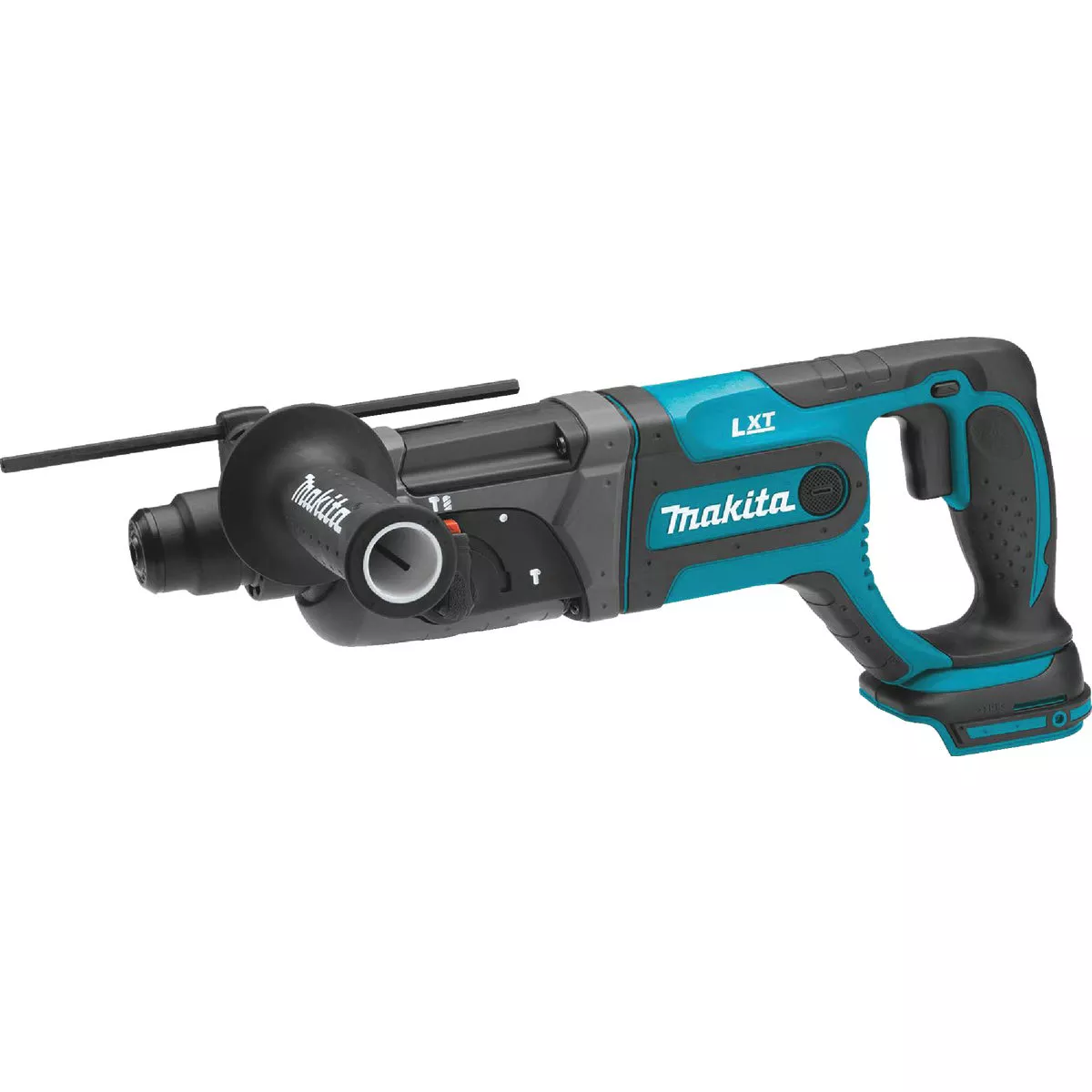

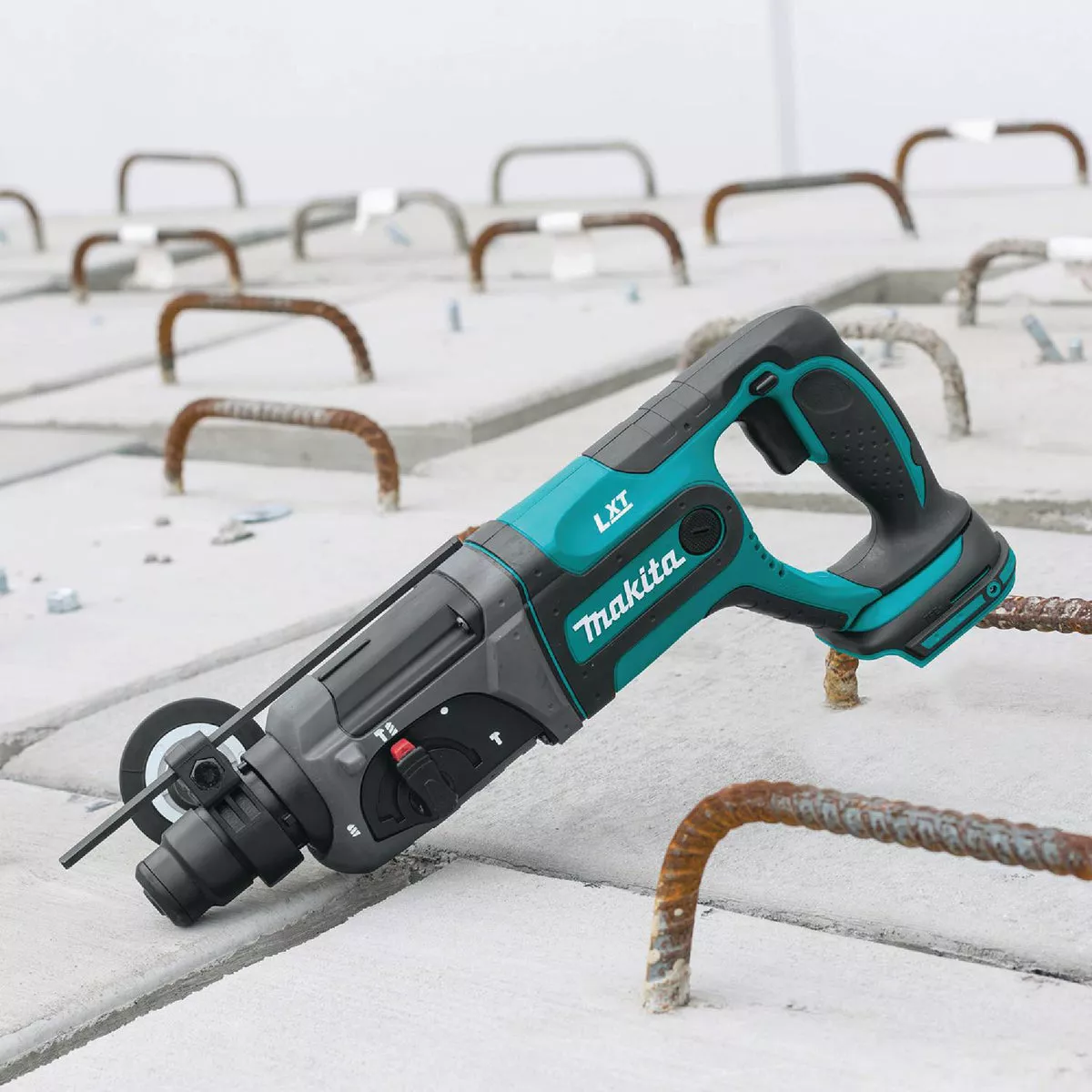

Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only)

Model #XRH04ZItem #367272UPC 00088381661775
Shop Makita
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only)
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 2
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 3
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 4
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 5
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 6

+ 6 more

Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only)
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 2
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 3
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 4
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 5
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 6
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only)
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 2
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 3
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 4
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 5
Makita 18 Volt LXT Lithium-Ion 7/8 In. Brushless SDS-Plus Cordless Rotary Hammer Drill (Tool Only) - photo 6
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    The Makita 18V LXT Lithium-Ion Cordless 7/8 In. SDS-Plus Rotary Hammer (model XRH04Z, tool only) delivers faster, more efficient percussive drilling to the jobsite. The versatile XRH04Z has 3-mode operation and a built-in torque limiter to ensure stable torque control for a range of concrete drilling tasks, with a more compact design and less vibration. The XRH04Z features a Makita-built high torque motor that delivers 0-1,200 RPM, 0-4,000 blows per minute (BPM), and 1.4 Ft./Lb. of impact energy for a wide range of concrete drilling applications. The 3-mode switch allows for hammering, rotation, or hammering with rotation. It also delivers two-times faster drilling with synchronized RPM and BPM for more efficient drilling. The built-in torque limiter clutch disengages if the bit jams, and ensures more stable torque control. Tool Only - battery and charger not included.
    • Makita-built variable speed motor delivers 0-1,200 RPM and 0-4,000 BPM
    • 3-mode operation for Rotation Only, Hammering with Rotation or Hammering Only for multiple applications
    • Torque limiting clutch engineered to prevent gear damage by automatically disengaging gears if the bit binds
    • Job site tested shock absorbent handle protects the battery housing for extra durability
    • One-touch sliding chuck for quick bit changes
    • Chisel rotates 360 degrees with 40 different positions
    • Compact and ergonomic design at only 16-3/8 In. long
    • Weighs only 7.7 Lb. with battery (battery not included) for reduced operator fatigue

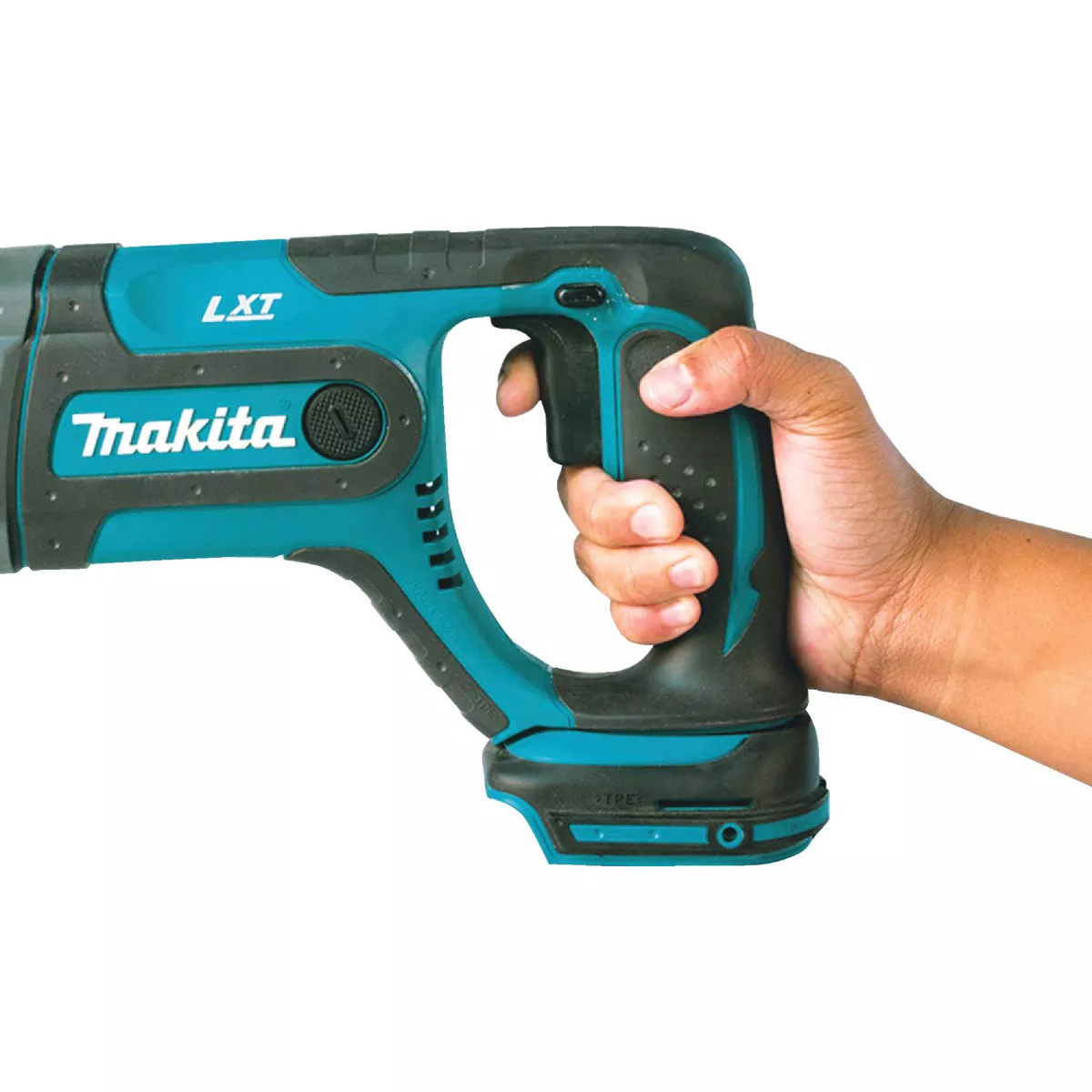

    • Rubberized soft grip handle provides increased comfort on the job
    • Only use genuine Makita 18V batteries and chargers
    Voltage18
    Weight7.7 Lb.
    Warranty3 Year
    Battery TypeLithium-Ion
    Charger IncludedNo
    Corded/CordlessCordless
    Case IncludedNo
    Motor TypeBrushless
    Batteries IncludedNo
    Dimensions16-3/8 In.
    Chuck Size7/8 In.
    Chuck TypeSDS-Plus
    Maximum Speed1200 rpm
    Impacts per Minute4000
    Battery PlatformMakita 18V LXT
    Length (In.)16.375
    Weight (Lb.)7.7
    BrandMakita
    UPC00088381661775
    Product typeCordless Rotary Hammer Drill
