Milwaukee MX FUEL Lithium-Ion Brushless Cordless Core Drill Kit, ONE-KEY Compatible

Model #MXF301-1CPItem #395711UPC 00045242570300
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

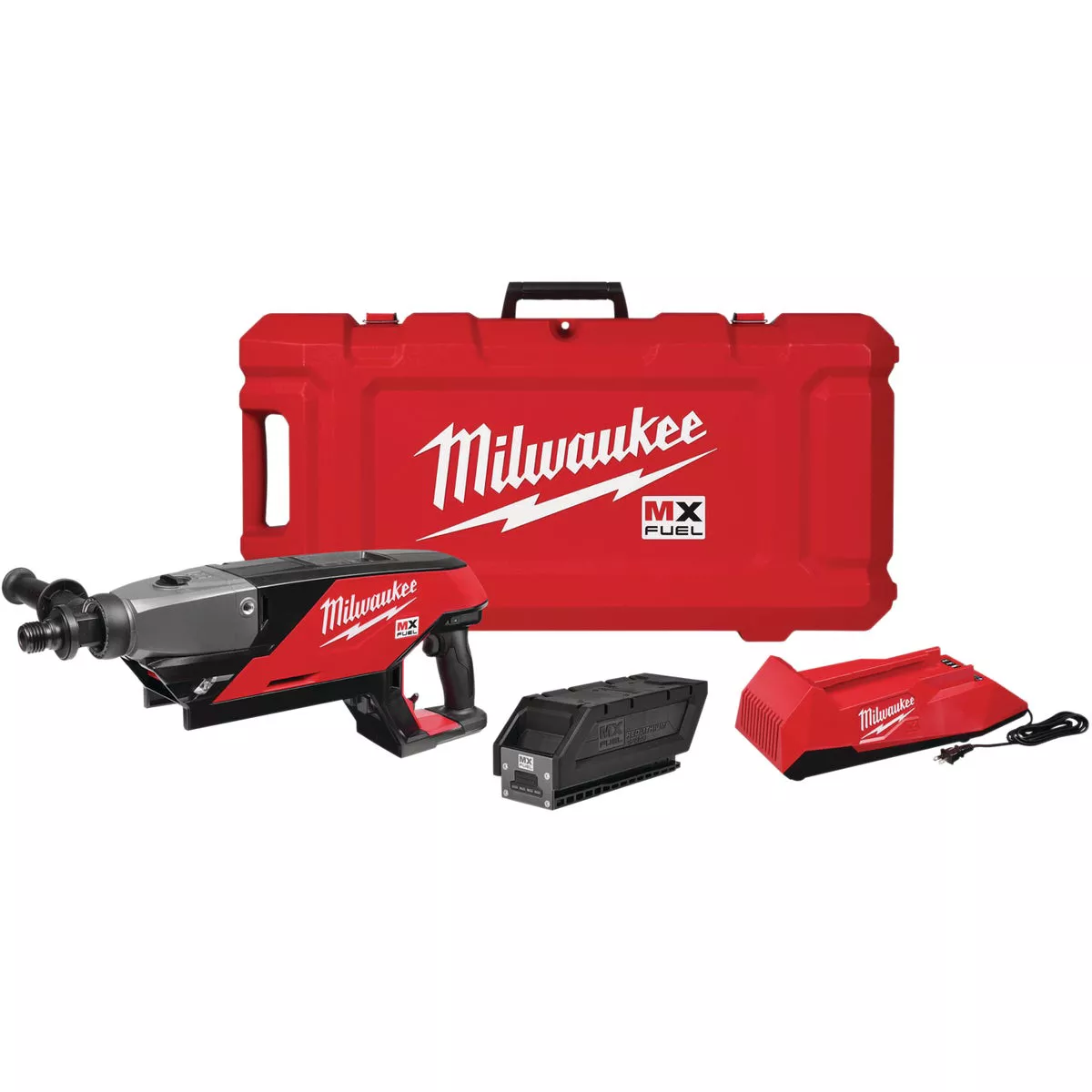

    With a patented clutch and AUTOSTOP technology, the MX FUEL handheld core drill delivers a safer handheld coring experience by providing maximum control and prevents over-rotation in case the machine gets bound up. The POWERSTATE brushless motor delivers the power to core up to 6 In. holes in reinforced concrete. REDLINK Plus intelligence ensures maximum performance and protection from overload, overheating, and overdischarge. AUTOSTOP, an onboard LED (light emitting diode) level, and performance gauge provide maximum efficiency while coring. These features, along with the option to wet or dry core make it easier to core anywhere. The MX FUEL REDLITHIUM battery pack powers through concrete and block almost anywhere, without the hassle of extension cords or tripping breakers. Compatible with all MX FUEL REDLITHIUM. The MX FUEL handheld core drill is ONE-KEY compatible: track, manage and secure equipment from your mobile device or computer using the industrys largest Bluetooth community tracking network. If ever lost or stolen, prevent tampering with remote lockout capability. Includes MX FUEL handheld core drill, MX FUEL CP battery pack, MX FUEL charger, BMC, bit adapter, trigger lock, hose quick connect.
    • Safer, easier handheld coring anywhere
    • The power to core 6 in. holes in reinforced concrete
    • AUTOSTOP Technology
    • Low speed: 790 rpm/ high speed: 1550 rpm
    • Push button activation
    • Onboard LED (light emitting diode) level and LED performance gauge
    • Wet/dry coring
    • Fully compatible with the MX FUEL equipment system
    Weight21.58 Lb.
    Warranty2 Year
    Battery TypeLithium-Ion
    Charger IncludedYes
    Corded/CordlessCordless
    Case IncludedYes
    Motor TypeBrushless
    Ampere Hour3.0 Ah
    Batteries IncludedYes
    Dimensions21.58 In. x 4.8 In. x 9.29 In.
    Chuck Size1-1/4 In.
    Chuck TypeKeyless
    Maximum Speed1550 rpm
    Clutch Settings2
    Battery Amp Hour3.0
    Battery PlatformMilwaukee MX FUEL
    Weight (Lb.)21.58 Lb.
    BrandMilwaukee
    UPC00045242570300
    Product typeCordless Drill
