Charlotte Pipe

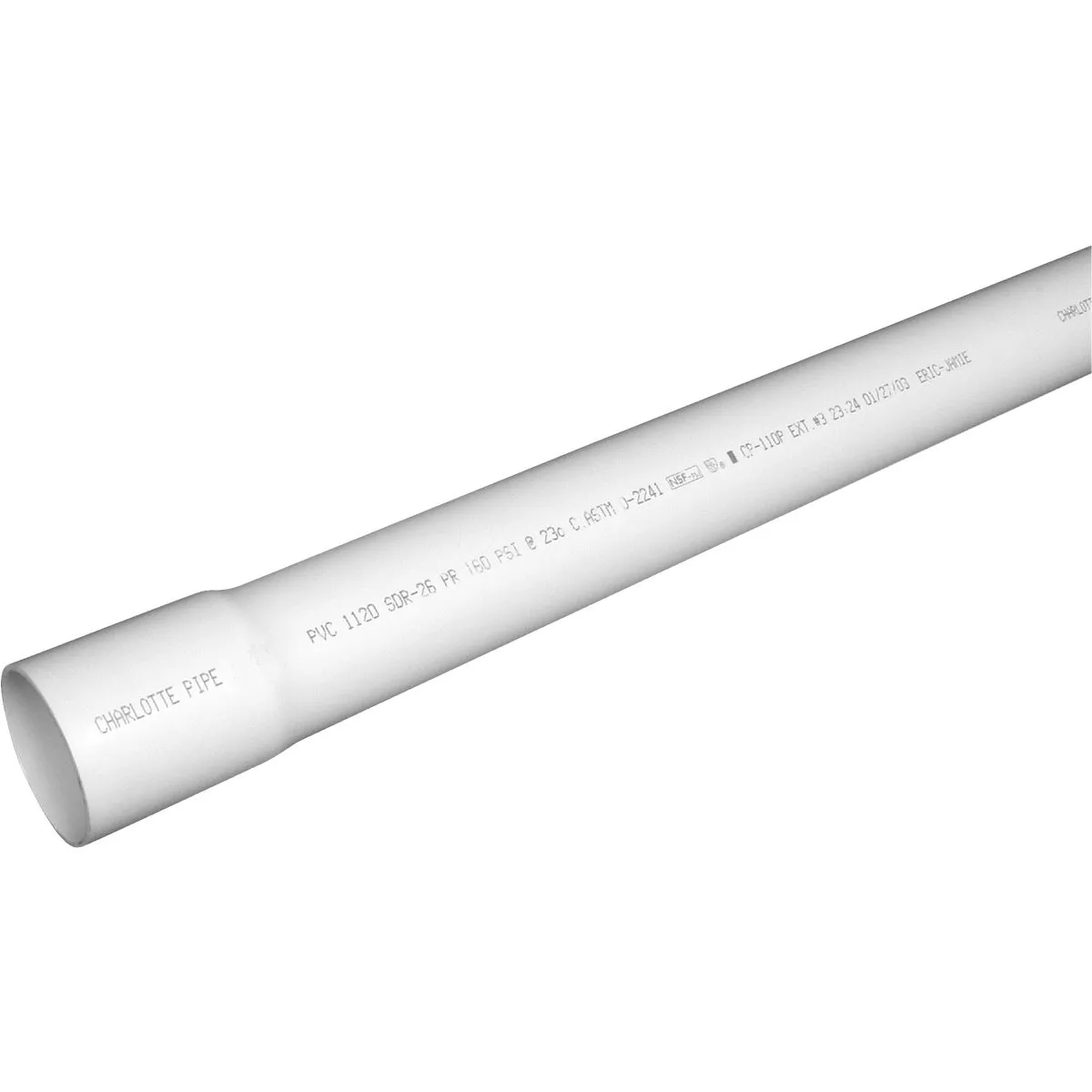

Charlotte Pipe 1-1/2 In. x 20 Ft. Cold Water PVC Pressure Pipe, SDR 26, Belled End

Model #PVC 16015B 0600HC Item #401676 UPC 00611942042104
Tap to view
Product overview
SDR 26 belled end cold water pipe is for pressure systems where the temperature will not exceed 140 F. They are highly resilient, with high tensile and high impact strength. All are inert to attack by many chemicals and can withstand high pressure for long periods. Do not use plastic pipe and fittings for compressed air systems. Rated at 160 psi.
  • Conforms to standards: ASTM D 1784, ASTM D 1785, ASTM D 2241, and NSF 14 and 61
  • Intended for pressure use
  • SDR 26 white pipe with red print that is used in potable water applications only
  • Maximum working temperature: 140 F
  • SDR 26 is highly durable, with high tensile and impact strength
  • SDR 26 pipe is used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines
  • Requires no special tools for cutting and to be installed with solvent cement

Product manuals and information

  • Buying Guides
  • Related Product Articles

    This product can expose you to chemicals including Titanium Dioxide which is known to the State of California to cause cancer. For more information go to

  • Request Safety Data Sheet (SDS)
Length 20 Ft.
Size 1-1/2 In. x 20 Ft.
Schedule SDR 26
Outside Diameter 1.900 In.
Inside Diameter 1-1/2 In.
Application Water Supply
Wall Thickness 0.073 In.
Pressure Rating 160 psi
Temperature Rating 140 F
Standard Dimension Ratio SDR 26
Pressure Rating (psi) 160
Maximum Working Temperature (F) 140
Brand Charlotte Pipe
UPC 00611942042104
