Sharkbite 4 Port PEX Barb Quick Connect Manifold
Model #22786AItem #403234UPC 00697285601321
Tap to view
Product overview

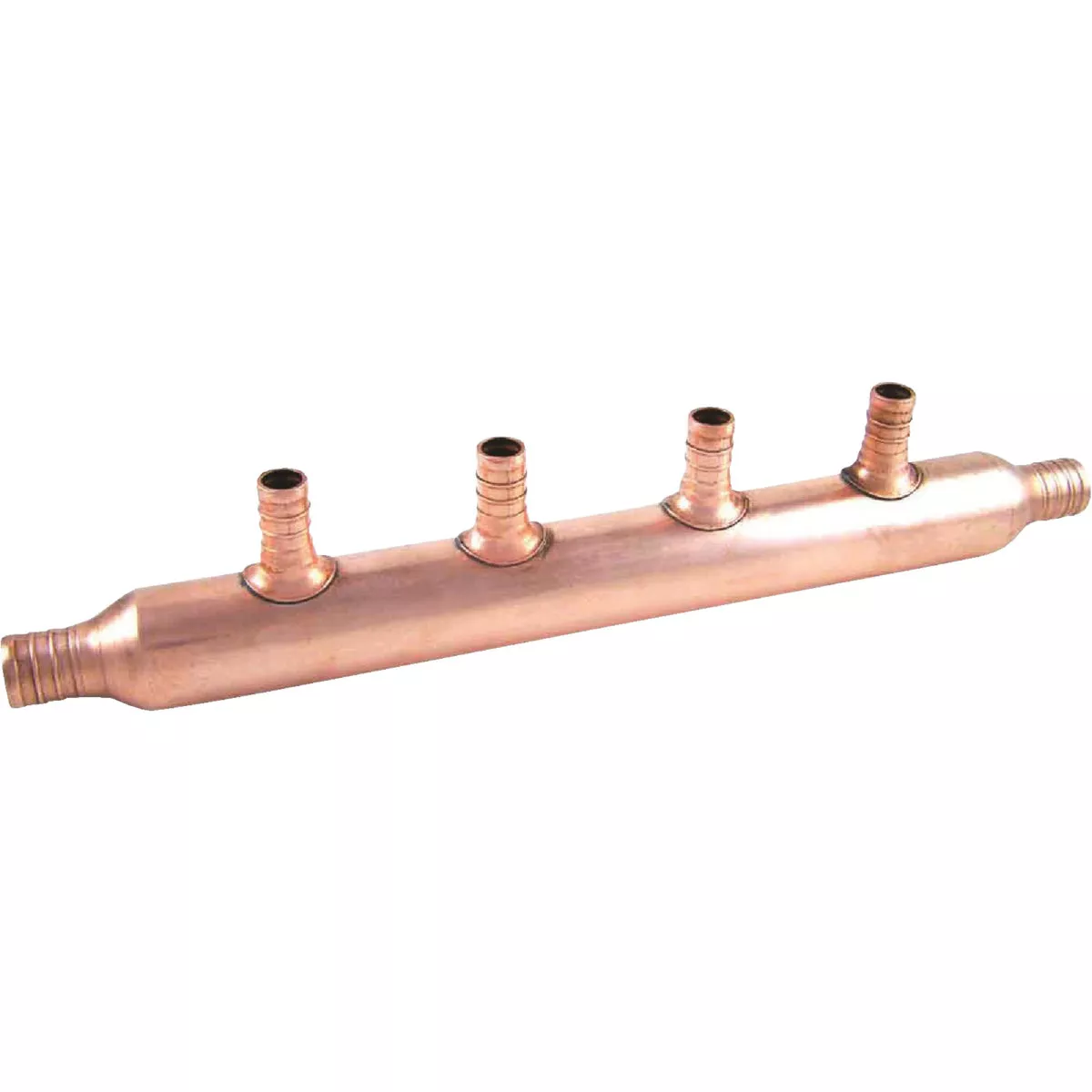

SharkBite copper 4 or 6 port PEX barb flow through open manifold with 3/4" PEX inlet and exit. 4 or 6, 1/2" PEX barb outlet ports. 200 psi (pounds per square inch) maximum working pressure and 200 F (degrees Fahrenheit) maximum working temperature. NSF (National Sanitation Foundation) listed.
- Designed to supply multiple water lines
- Compatible with PEX, copper, CTS, CPVC, and PE-RT pipes in any combination
- No tools, crimping, glue, or soldering required
- No loose components for a dependable secure connection
Specifications
| Dimensions | 2 In. H x 11 In. W x 1.11 In. D |
| Size | 4-Port |
| Inlet Port | 3/4 In. Barb Fitting on Either End |
| Outlet Ports | 1/2 In. PEX Barb Connections |
| Maximum Working Pressure | 200 psi |
| Maximum Working Temperature | 200 F |
| Brand | SHARKBITE |
| UPC | 00697285601321 |
| Product type | PEX Manifold |
