SHARKBITE

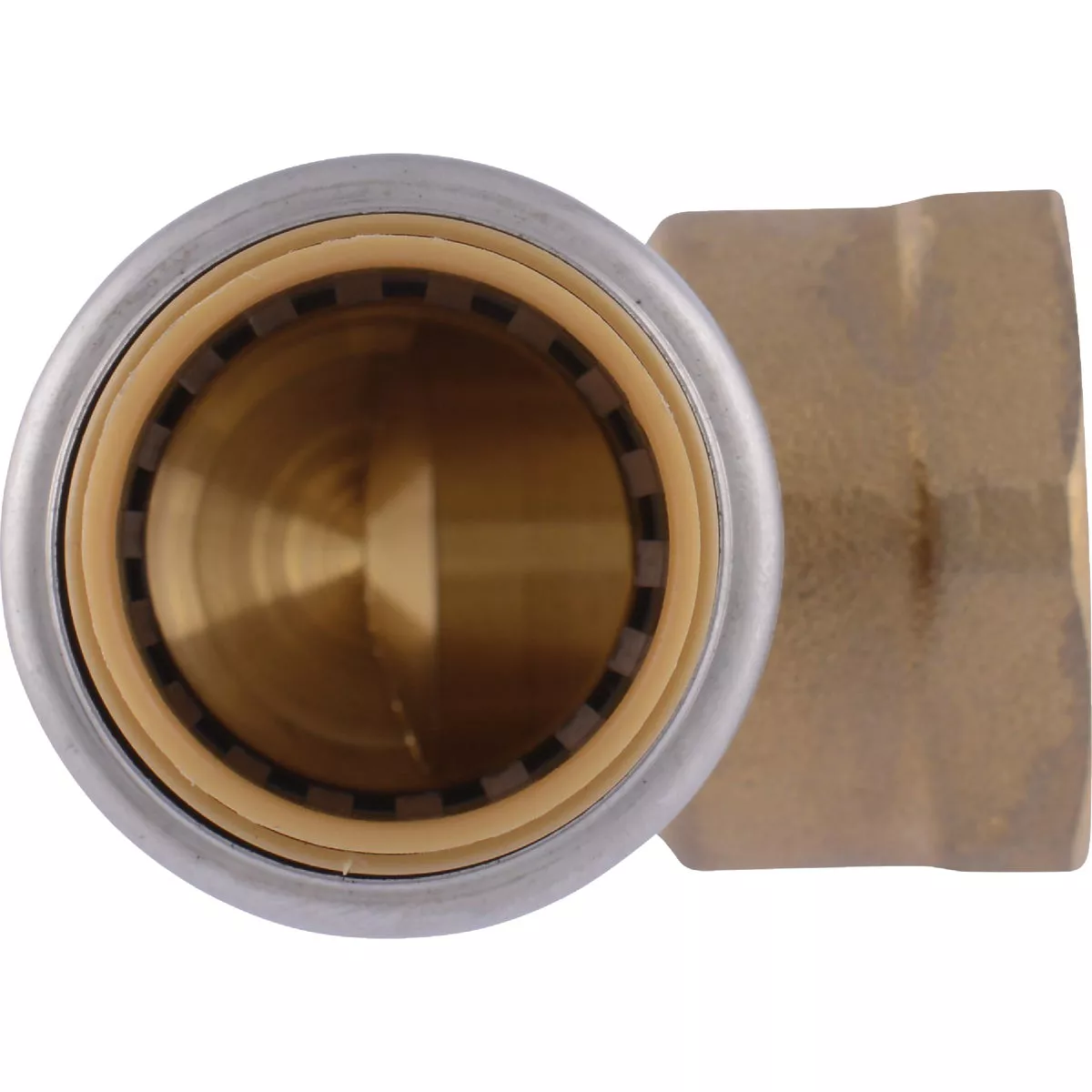

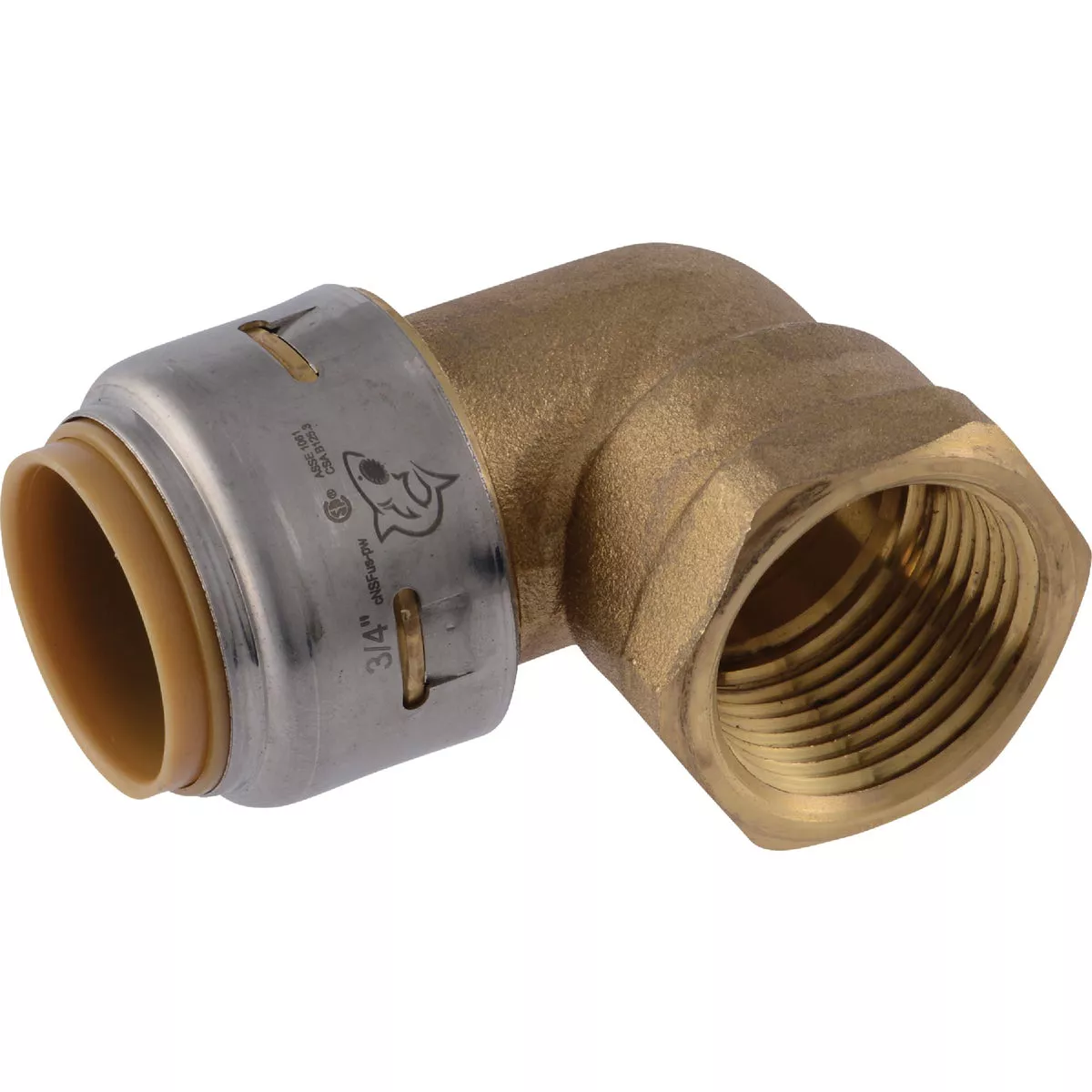

SharkBite 3/4 In. x 3/4 In. Push-to-Connect FNPT Brass Elbow (1/4 Bend)

Model #UR314A Item #415939 UPC 00697285071841
Tap to view
Product overview
SharkBite Max push-to-connect fittings allow you make pipe connections with half the insertion effort while withstanding double the burst pressure. Featuring a newly designed stainless-steel retainer, SharkBite Max delivers additional strength and durability while providing a 250 psi pressure rating. Sharkbite push-fit x FNPT lead-free brass elbow, used to make a 90 transition between PEX, copper, CPVC, PE-RT or HDPE pipe to an FNPT threaded connection. Innovative push-to-connect design makes for quick and easy transition between PEX, copper, CPVC, PE-RT or HDPE pipe to an FNPT threaded connection. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors. Fittings are certified to 200 F, 250 psi. Third-party listed, compliant with applicable U.S. and Canadian plumbing codes. 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. Five-year warranty when properly installed with HDPE SDR-9. Patented technology.
  • Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe
  • Can be installed on wet lines and pressure tested immediately
  • No special tools, crimping, glue or soldering required
  • Stainless steel retainer adds strength and durability
  • Can be installed in wet lines
  • High-performance DZR lead-free brass body
  • Approved for underground and behind-the-wall applications with no access panels (wrapping required when burying underground)
  • No special tools, crimping, soldering or glue required
  • Remove using a Disconnect Clip or Disconnect Tongs (both sold separately)
  • Can be rotated after installation
  • Rated for 200 psi and 200F (93C)
  • No PEX tube liner required
  • 25-year warranty
  • Approved for behind-the-wall applications with no access panels
  • Approvals: ASSE 1061, CSA B125.3, NSF/ANSI 372, NSF/ANSI/CAN 61, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101, UL 263
  • Approved for underground applications (wrap required for burial)
  • Rated to 200F and 250 psi

Product manuals and information

  • Buying Guides
  • Related Product Articles
  • WARNING:

    This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information, go to www.p65warnings.ca.gov

  • Request Safety Data Sheet (SDS)
Material Brass
Type Push Elbow
Size 3/4 In. PTC x 3/4 In. FIP
Angle 90 Deg.
Pressure Rating 200 psi
Temperature Rating 200 F
Fitting Size 1 3/4 In.
Fitting Size 2 3/4 In.
Connection Type 1 Push
Connection Type 2 FIP
Pressure Rating (psi) 200
Maximum Working Temperature (F) 200
Fitting Type Elbow
Brand SHARKBITE
UPC 00697285071841
