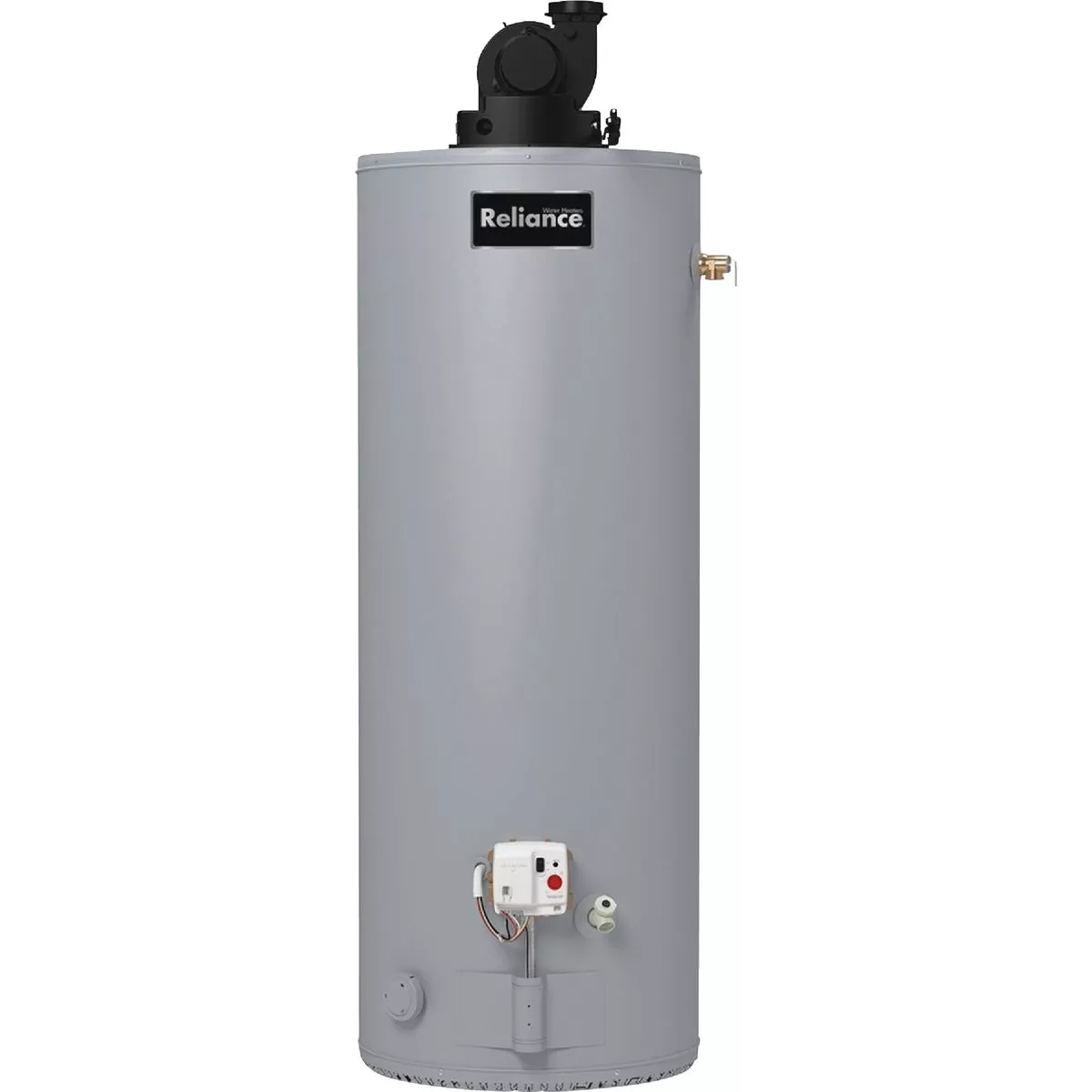

Reliance 40 Gal. Short 50,000 BTU Liquid Propane (LP) Gas Water Heater with Power Vent
Model #6-40-HBVISItem #448798 UPC 00091193008300
Tap to view
Product overview
Liquid propane water heater with power-vent 3-position (9, 12 and 3 o'clock) rotatable blower. 120V power cord must be electrically grounded. Horizontal and vertical vent runs up to 180 equivalent feet with 4 In. diameter venting. Schedule 40 vent piping system with PVC, ABS, or CPVC pipe, vent distance up to 180 Ft. 2 In. insulation. Self-cleaning diffuser-end PEX dip tube. Glass lining, hot surface igniter, no standing pilot. Anode rod, installed T & P relief valve. Electronic gas control for more precise temperature control. Not for mobile/manufactured housing. Energy Star Qualified.
- More powerful modular blower with 110/120 volt electrical system, factory-installed 7 Ft. power cord
- PEX dip tube
- Advanced Intelli-Vent gas control valve - no standing pilot saves energy
- Glass-lined tank with anode rod protects against corrosion
- Environmentally-friendly non-CFC foam insulation
- Eco-friendly green choice gas burner - reduces NOx emissions by 33%
- Factory-installed PEX polymer lined heat trap nipples
- Factory-installed temperature & pressure (T&P) relief valve
- 6-year limited tank & parts warranty, 1-year labor warranty
- Energy Star Qualified
Specifications
| Width | 22 In. |
| Voltage | 120 |
| Type | Residential |
| Capacity | 40 Gal. |
| BTU Rating | 50,000 |
| Style | Tall |
| Application Type | Residential |
| Width (In.) | 22 |
| Height (In.) | 59 |
| Depth (In.) | 22 |
| Water Heater Profile | Tall |
| Nominal Tank Capacity (Gal.) | 40 |
| Brand | Reliance |
| UPC | 00091193008300 |
| Product type | Gas Water Heater |
