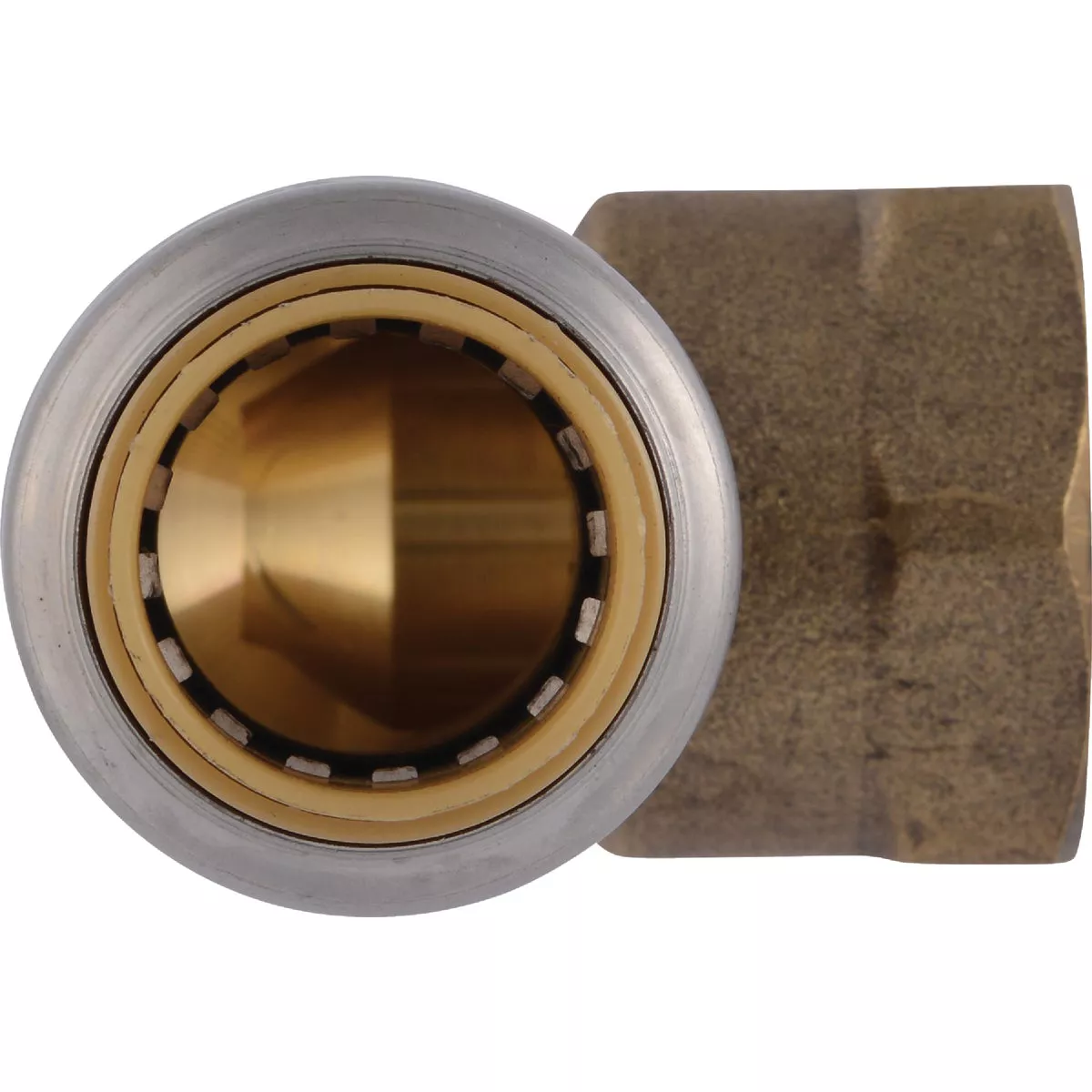

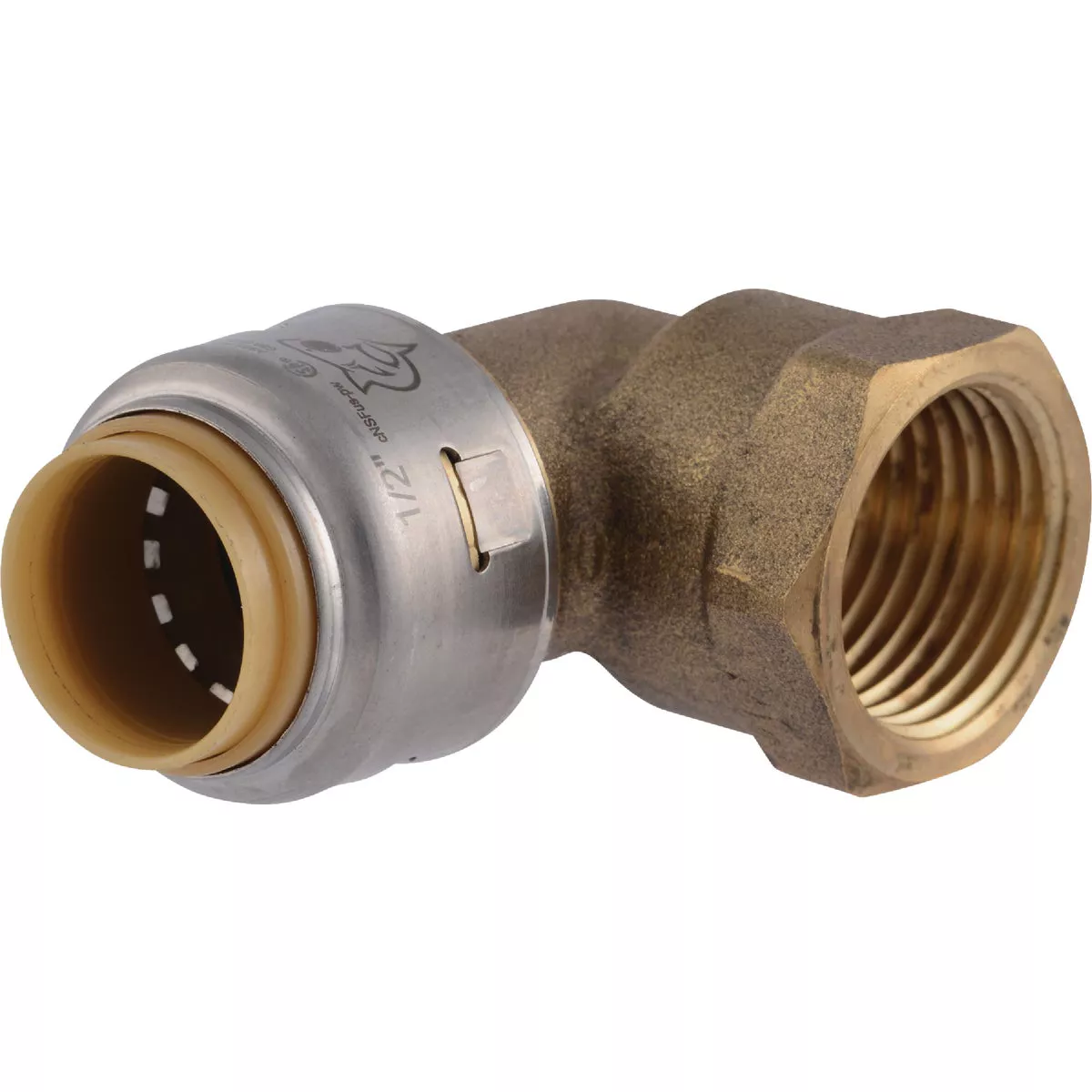

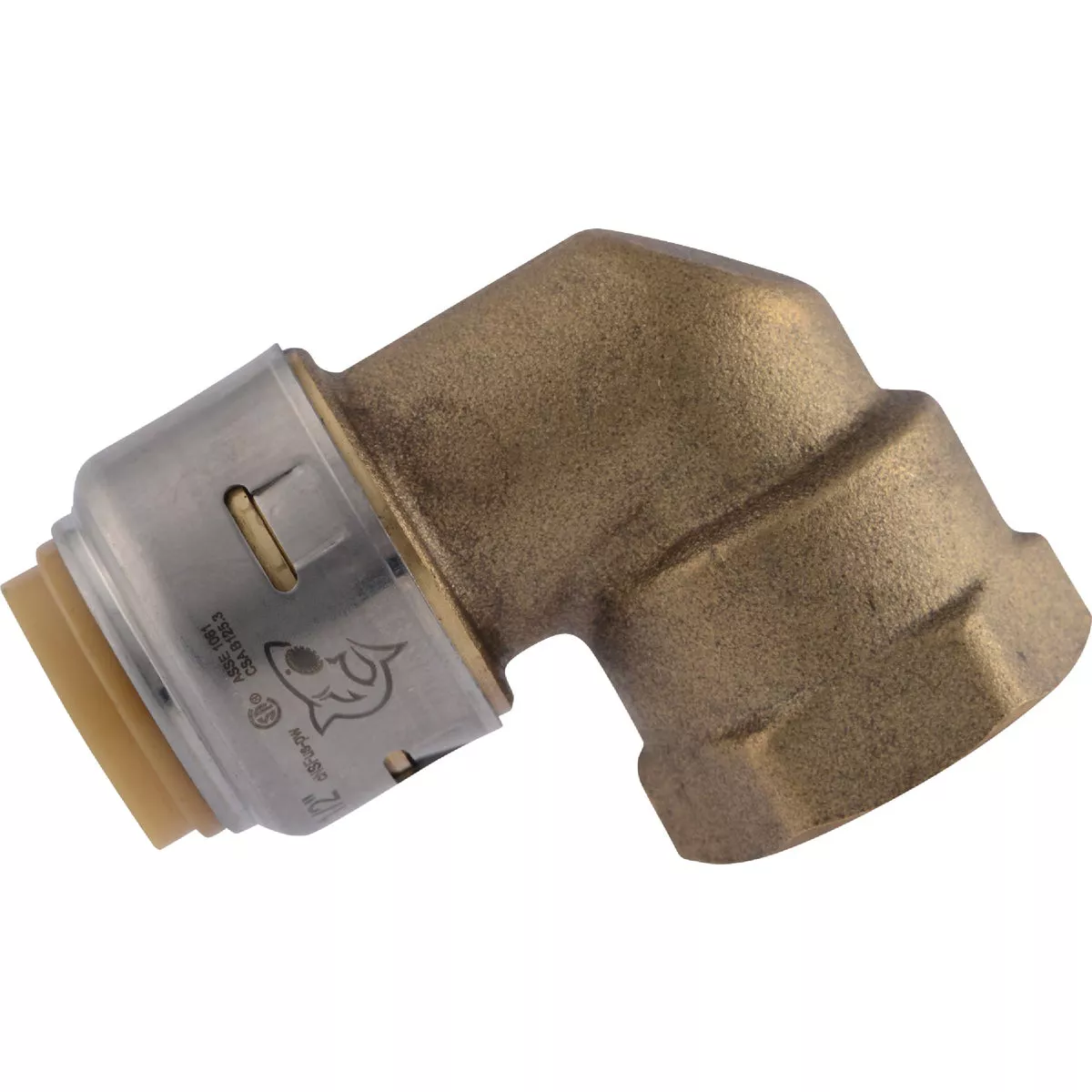

SharkBite 1/2 In. x 1/2 In. Push-to-Connect Brass Elbow (1/4 Bend)
Tap to view
Product overview
SharkBite Max push-to-connect fittings allow you make pipe connections with half the insertion effort while withstanding double the burst pressure. Featuring a newly designed stainless-steel retainer, SharkBite Max delivers additional strength and durability while providing a 250 psi pressure rating. Sharkbite push-fit x FNPT lead-free brass elbow, used to make a 90 transition between PEX, copper, CPVC, PE-RT or HDPE pipe to an FNPT threaded connection. Innovative push-to-connect design makes for quick and easy transition between PEX, copper, CPVC, PE-RT or HDPE pipe to an FNPT threaded connection. Ideal for working in tight spaces. Faster install time and ease of use reduces installation errors. Fittings are certified to 200 F, 250 psi. Third-party listed, compliant with applicable U.S. and Canadian plumbing codes. 25-year warranty when properly installed on PEX, copper, CPVC and PE-RT. Five-year warranty when properly installed with HDPE SDR-9. Patented technology. Stainless steel retainer adds strength and durability. High-performance DZR lead-free brass body.
- Compatible with PEX, copper, CPVC, PE-RT and HDPE pipe
- No special tools, crimping, soldering or glue required
- Can be installed on wet lines and pressure tested immediately
- Approved for underground applications (wrap required for burial) & Approved for behind-the-wall applications with no access panels
- Remove using a Disconnect Clip or Disconnect Tongs (both sold separately)
- Rated to 200F and 250 psi
- 25-year warranty
- Approvals: ASSE 1061, CSA B125.3, NSF/ANSI 372, NSF/ANSI/CAN 61, ASTM E84, CAN/ULC S102.2, ASTM E119, CAN/ULC S101, UL 263
- No PEX tube liner required
- Can be rotated after installation
Product manuals and information
- Buying Guides
- Related Product Articles
-
California Prop-65 Warning WARNING:
This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
WARNING:This product can expose you to chemicals including lead which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.p65warnings.ca.gov.
- Request Safety Data Sheet (SDS)
Specifications
| Material | Brass |
| Type | Push Elbow |
| Size | 1/2 In. PTC x 1/2 In. FIP |
| Angle | 90 Deg. |
| Pressure Rating | 200 psi |
| Temperature Rating | 200 F |
| Fitting Size 1 | 1/2 In. |
| Fitting Size 2 | 1/2 In. |
| Connection Type 1 | Push |
| Connection Type 2 | FIP |
| Pressure Rating (psi) | 200 |
| Maximum Working Temperature (F) | 200 |
| Fitting Type | Elbow |
| Brand | SHARKBITE |
| UPC | 00697285059320 |
