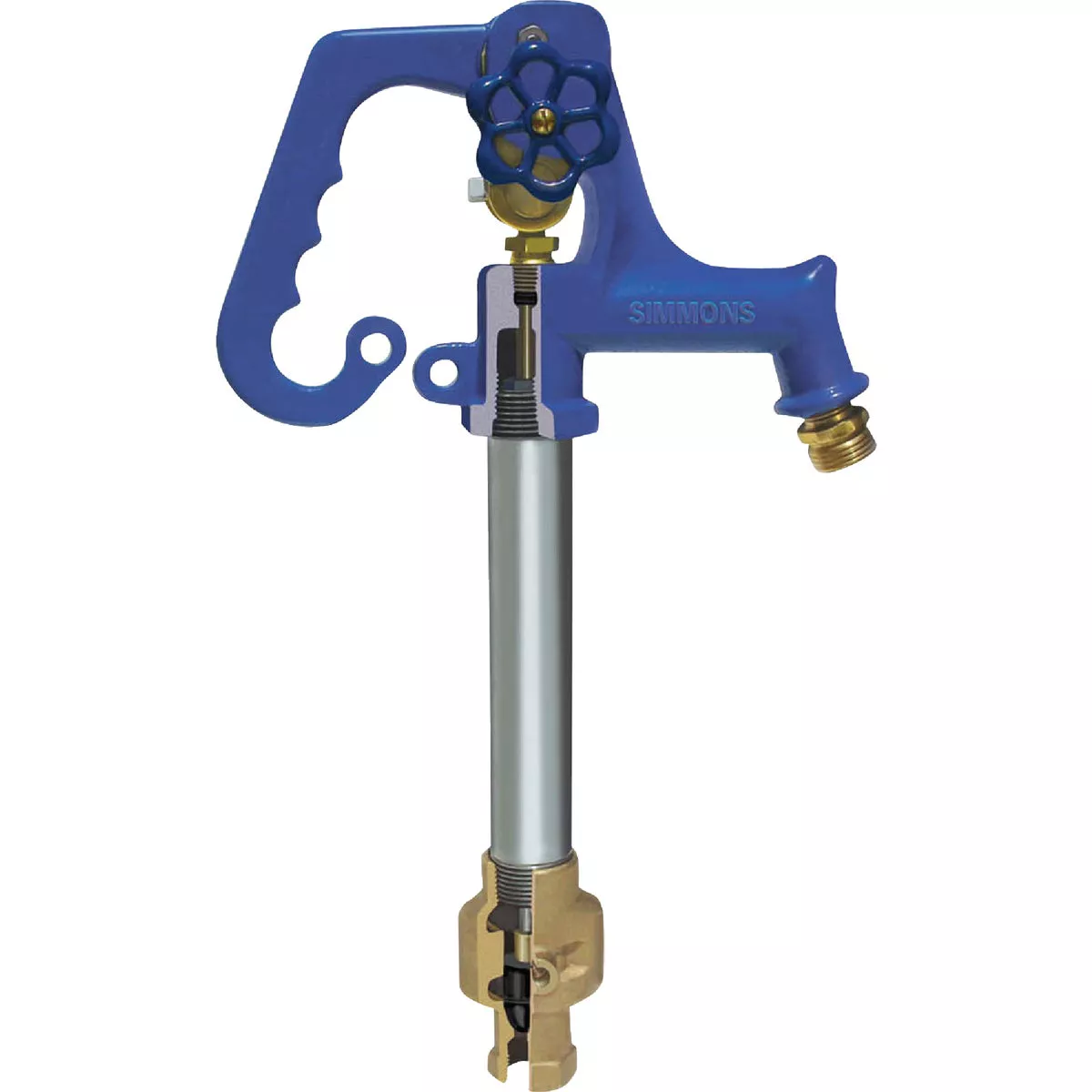

Simmons Domestic Lead Free 3 Ft. Frost-Proof Yard Hydrant for Use in California

Model #803SB Item #489417 UPC 00008391019700
Tap to view
Product overview
Bury hydrants have a 1-piece variable flow plunger, large cushion type seal not easily damaged. Positive shut-off even when foreign particles are present. Automatic drain feature. Plunger opens drain to prevent freezing. Closes at any flow to prevent wasting water. Tamper-proof lock can be locked in close position by inserting padlock or bolt thru hole in link. Cast-iron head and handle. Inlet: 3/4" NPT (National Pipe Thread. Casing: 1 In. galvanized steel pipe. 7/16 In. galvanized pump rod. Silicon bronze bypass valve. Stainless steel extension rod. 3/4 In. aluminum hose adapter. Overall length of hydrant is bury depth plus 24 In. Polyester powder-coated finish. Individually boxed. Made in USA. For use in California.

Product manuals and information

Overall Length 5 Ft.
Head Material Cast Iron
Outlet Size 3/4 In. MHT
Inlet Size 3/4 In. NPT
Pipe Material Galvanized Steel
Casing 1 In. Galvanized steel pipe
Operating Rod 7/16 In. galvanized
Drain Hole 1/8 In. NPT
Bury Length 3 Ft.
Brand Simmons
UPC 00008391019700
