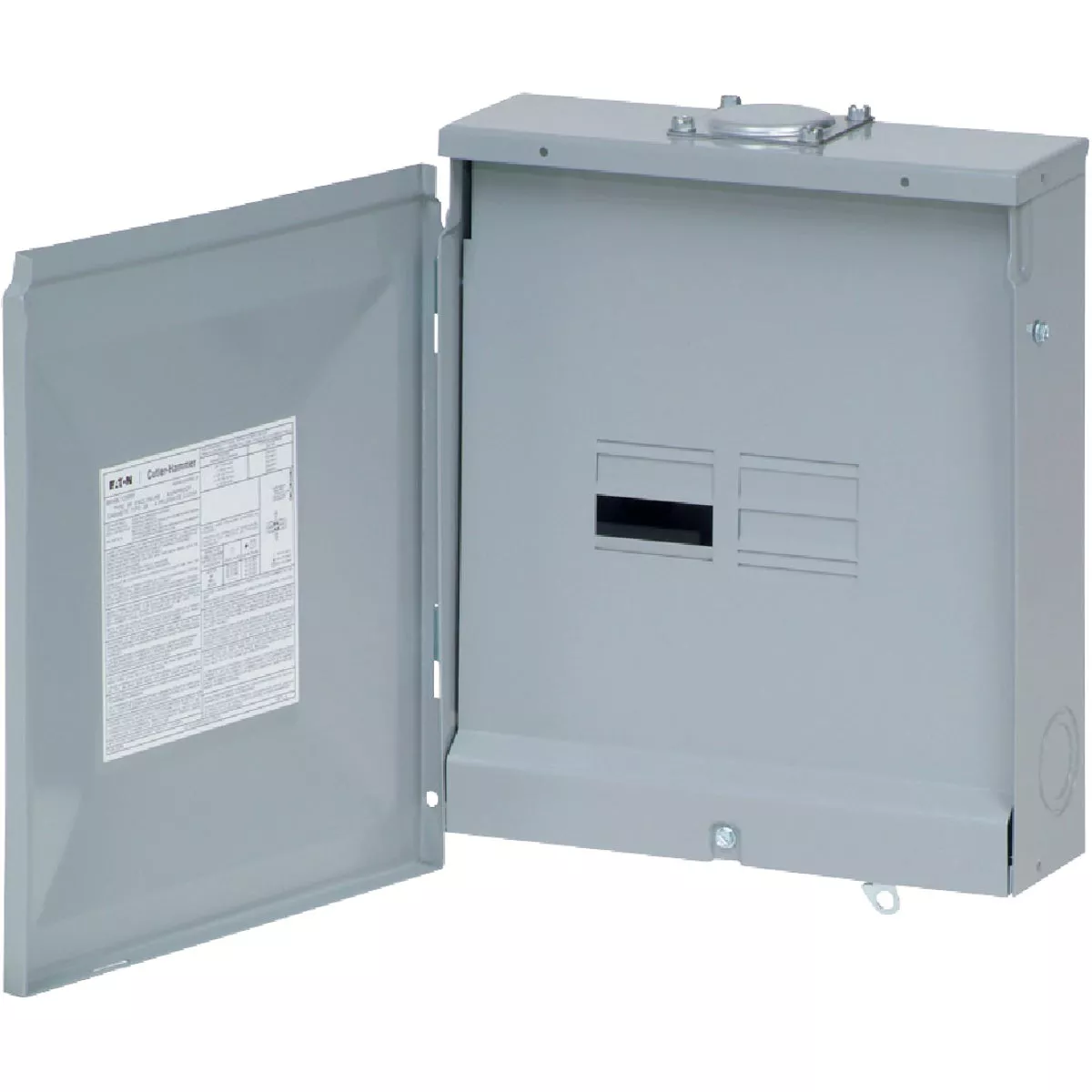

Eaton BR 125A 4-Space 8-Pole Rainproof Main Lug Load Center
Model #BR48L125RPItem #502405UPC 00786676001205
Tap to view
Product overview
Main lug load center designed for service entrance equipment. Main lugs only. Single-phase, 3-wire, flush or surface mount. Solid neutral bar and cover included. Optional ground bar kits must be ordered separately. Load centers that accept BD and BQ type circuit breakers have a notched bus bar. UL (Underwriter's Laboratories) listed.
- Designed for service entrance equipment
- Single-phase, 3-wire, flush or surface mount
- Solid neutral bar and cover included
- 125 BR series
- UL Listed
Product manuals and information
Specifications
| Amperage | 125 |
| Voltage | 120/240 |
| Series | BR |
| Number Of Spaces | 4 |
| Max Number of Poles | 8 |
| Enclosure Type | Rainproof |
| Mount Type | Surface |
| Phase | Single |
| Wire Size | #14 To 1/0 |
| Certification | UL Listed |
| Width (In.) | 11 |
| Height (In.) | 13 |
| Depth (In.) | 3.56 |
| Brand | Eaton |
| UPC | 00786676001205 |
| Product type | Main Lug Load Center |
