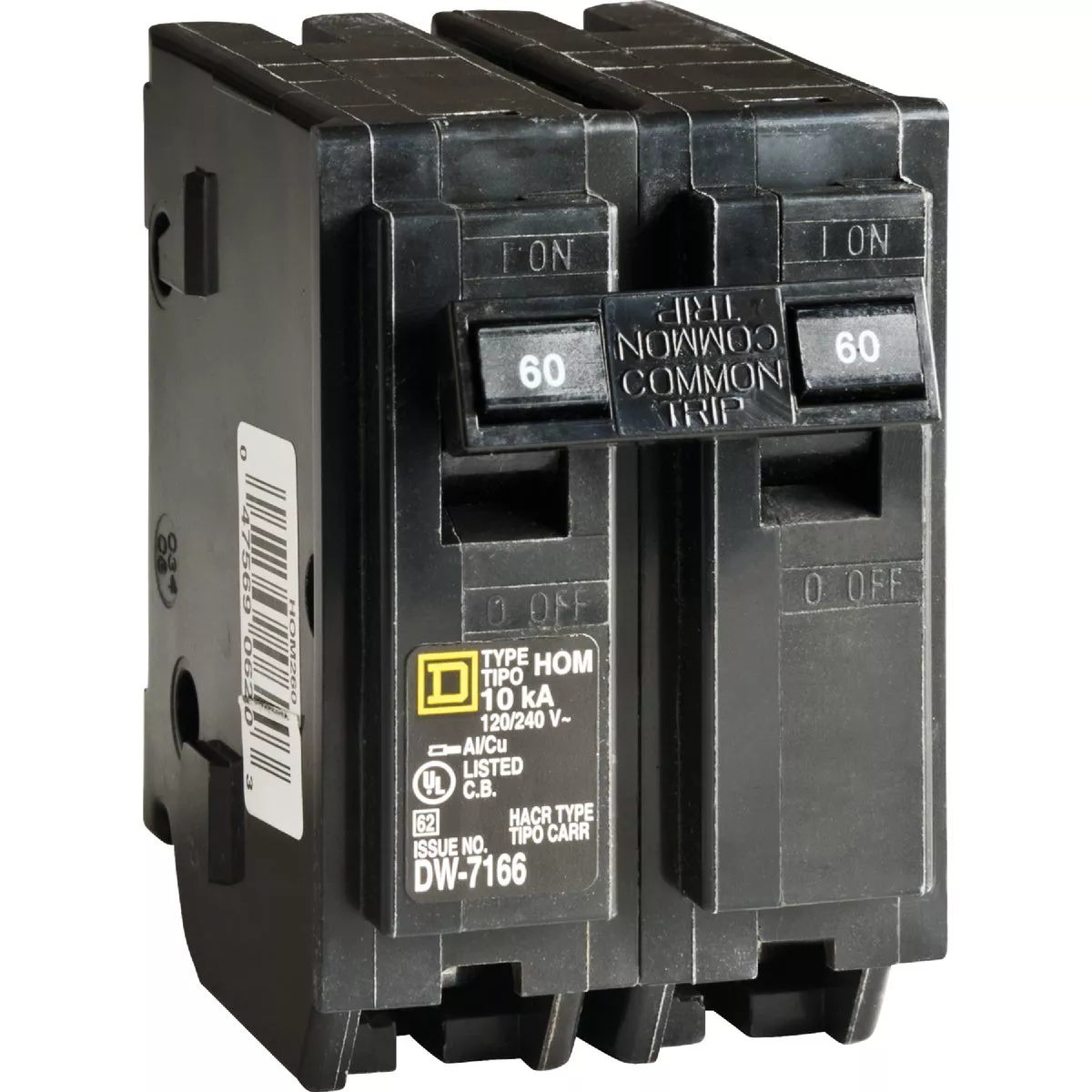

Square D Homeline 60A Double-Pole Standard Trip Circuit Breaker
Model #HOM260CPItem #515132UPC 00047569062803
Tap to view
Product overview
Homeline circuit breaker. Used for overload and short-circuit protection of electrical systems. Compatible with Homeline load centers and CSED devices. Rated for 120 volt/240 volt and 10,000 AIR. Designed exclusively for the residential market. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed.
- Ideal for overload and short-circuit protection of electrical systems
- Compatible with Homeline load centers and CSED devices
- Designed exclusively for the residential market
- ANSI/UL Listed
Specifications
| Amperage | 60 |
| Voltage | 120/240 |
| Number Of Poles | 2 |
| Mount Type | Plug-In |
| Wire Size | #8-2 AWG |
| Certification | ANSI/UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 2-Space |
| Width (In.) | 1 |
| Brand | Square D |
| UPC | 00047569062803 |
| Product type | Circuit Breaker |
