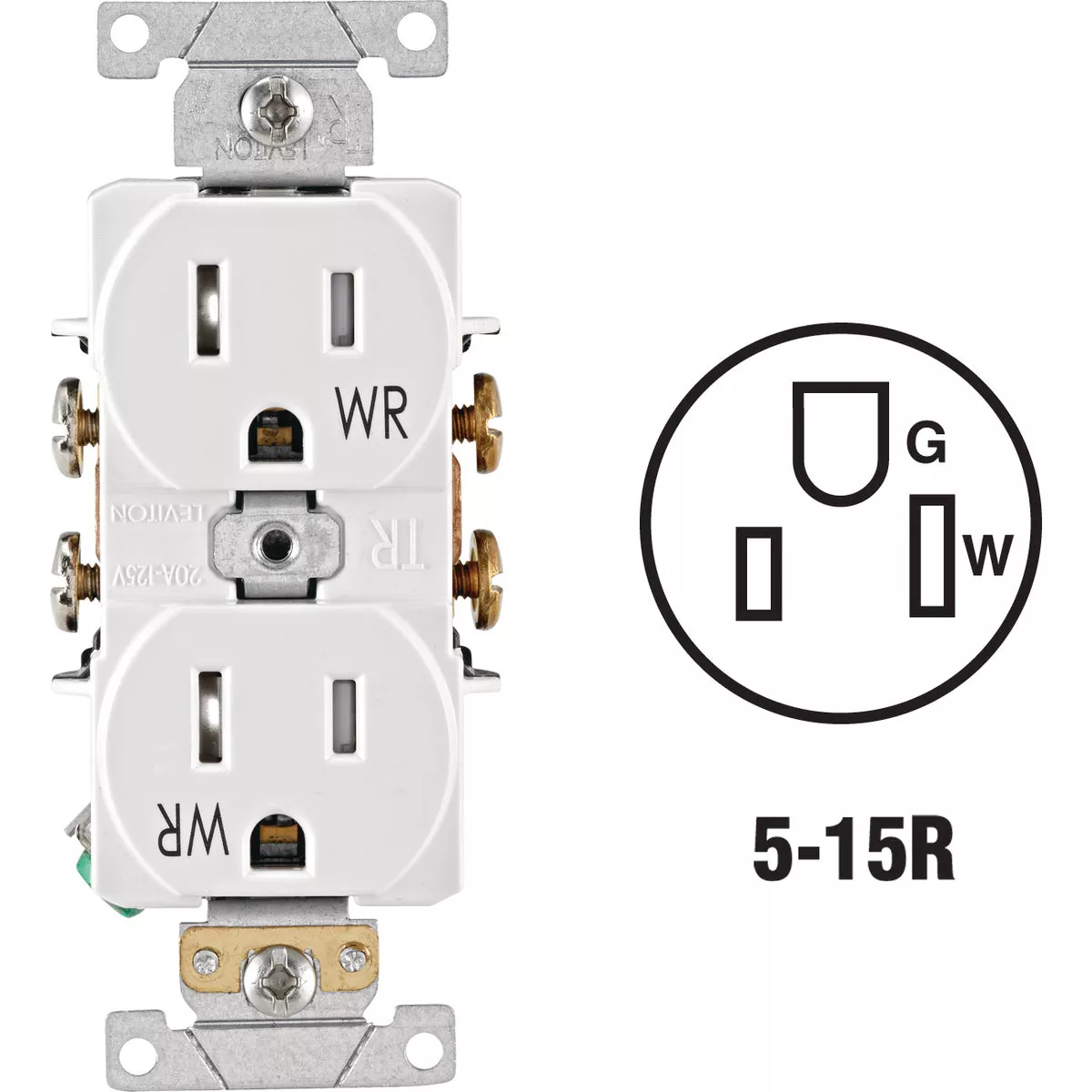

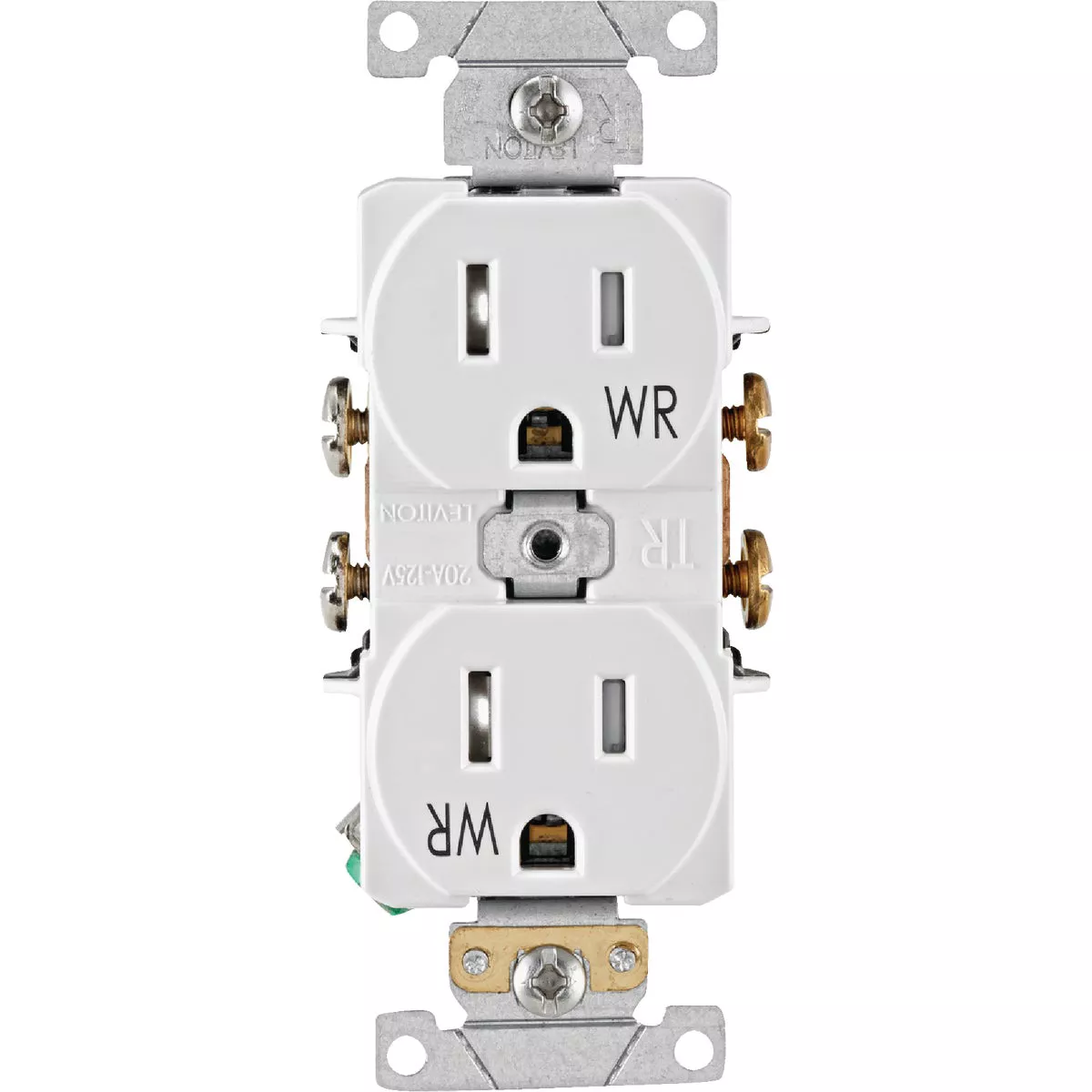

Leviton 15A White Tamper & Weather Resistant Commercial Grade 5-15R Duplex Outlet
Model #S12-TWR15-00WItem #525444UPC 00078477381847
Tap to view
Product overview
Commercial grade, tamper and weather-resistant nylon duplex receptacle. Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, helping to ensure objects such as hairpins and keys will be locked out. Shallow design for maximum wiring room in box. Side-wired, large-head terminal screws and back-wiring clamps accept up to No. 10 copper wire. Triple wire power contacts for maximum conductivity and plug retention. Captive mounting screws for fast installation. Convenient washer-type break-off plaster ears for best flush alignment. Break-off tabs for easy 2-circuit conversion. Heavy-gauge rust-resistant steel mounting strap. Covers must be used with WR GFCI (ground fault circuit interrupter) receptacles in damp or wet locations per Section 406.8 of the NEC Code. Limited 2-year warranty. White.
- Commercial grade, tamper and weather-resistant design
- Shutter mechanism inside the receptacle blocks access to the contacts unless a 2-prong plug is inserted, helping to ensure small objects will be locked out
- Shallow design for maximum wiring room in box
- Triple wire power contacts for maximum conductivity and plug retention
- Captive mounting screws for fast installation
- Convenient washer-type break-off plaster ears for best flush alignment
- Heavy-gauge rust-resistant steel mounting strap
- Limited 2-year warranty
- UL Listed
Specifications
| Color | White |
| Amperage | 15 |
| Voltage | 125 |
| Number Of Poles | 2 |
| Grade | Commercial |
| Certification | UL Listed |
| NEMA Configuration | 5-15R |
| Number Of Wires | 3 |
| Brand | Leviton |
| UPC | 00078477381847 |
| Product type | Duplex Outlet |
