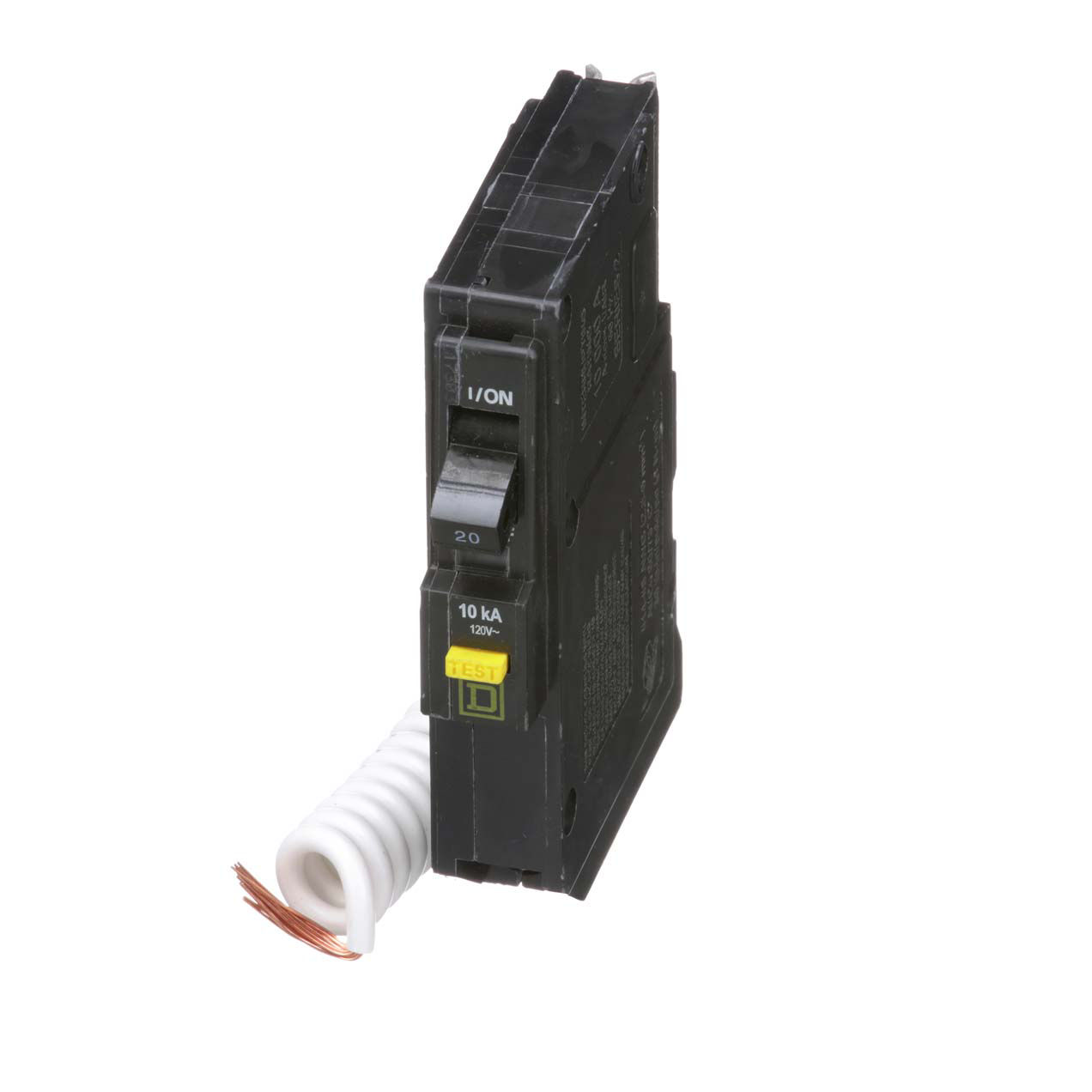

Square D QO 20A Single-Pole GFCI Breaker
Model #QO120GFICPItem #528147UPC 00047569522321
Tap to view
Product overview
GFCI (ground fault circuit interrupter) single-pole breaker. Class A ground fault and branch circuit overcurrent protection. Ideal for protection of entire branch circuits where damp location shock hazards may exist, providing overload and short-circuit protection of electrical systems. Equipped with the exclusive Visi-Trip indicator. When breaker is tripped, the handle snaps to a midpoint position and a highly visible, red indicator easily identifies the tripped breaker. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed is rated for 120 volts and 10,000 AIR.
- Equipped with the exclusive Visi-Trip indicator
- Ideal for protection of entire branch circuits where damp location shock hazards may exist, providing overload and short-circuit protection of electrical systems
- 20, 1
- ANSI/UL Listed
Specifications
| Amperage | 20 |
| Voltage | 120 |
| Number Of Poles | 1 |
| Mount Type | Plug-In |
| Wire Size | #12-8 AWG Al, #14-8 AWG Cu |
| Certification | ANSI/UL Listed |
| Interruption Type | GFCI |
| Frame Size | 1-Space |
| Width (In.) | 0.75 |
| Brand | Square D |
| UPC | 00047569522321 |
| Product type | GFCI Breaker |
