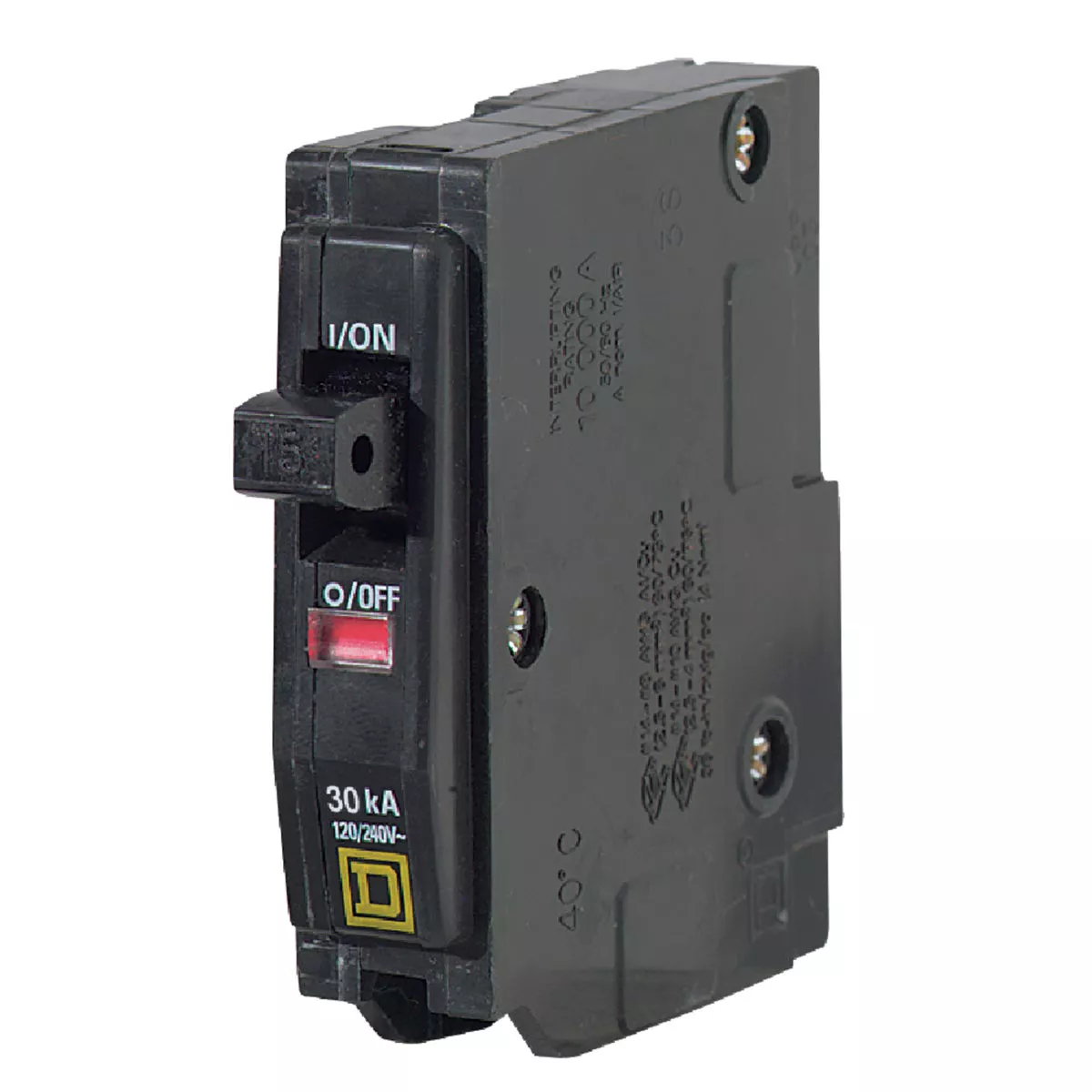

Square D QO 30A Single-Pole Standard Trip Circuit Breaker
Model #QO130CPItem #528218UPC 00047569838002
Tap to view
Product overview
QO circuit breaker for use in QO load centers. Intended for overload and short-circuit protection of electrical systems. ANSI (American National Standards Institute) certified and UL (Underwriter's Laboratories) listed. Rated for 120 volt/240 volt and 10,000 AIR. Features the exclusive Visi-Trip indicator. When the circuit breaker trips, the handle snaps to a midpoint and a highly visible red indicator easily identifies the tripped breaker.
- Exclusive Visi-Trip indicator
- Intended for overload and short-circuit protection of electrical systems
- ANSI/UL Listed
- 30, 1
Specifications
| Amperage | 30 |
| Voltage | 120/240 |
| Number Of Poles | 1 |
| Mount Type | Plug-In |
| Wire Size | #14-8 AWG Al/(2) #14-10 AWG Cu |
| Certification | ANSI/UL Listed |
| Interruption Type | Standard Trip |
| Frame Size | 1-Space |

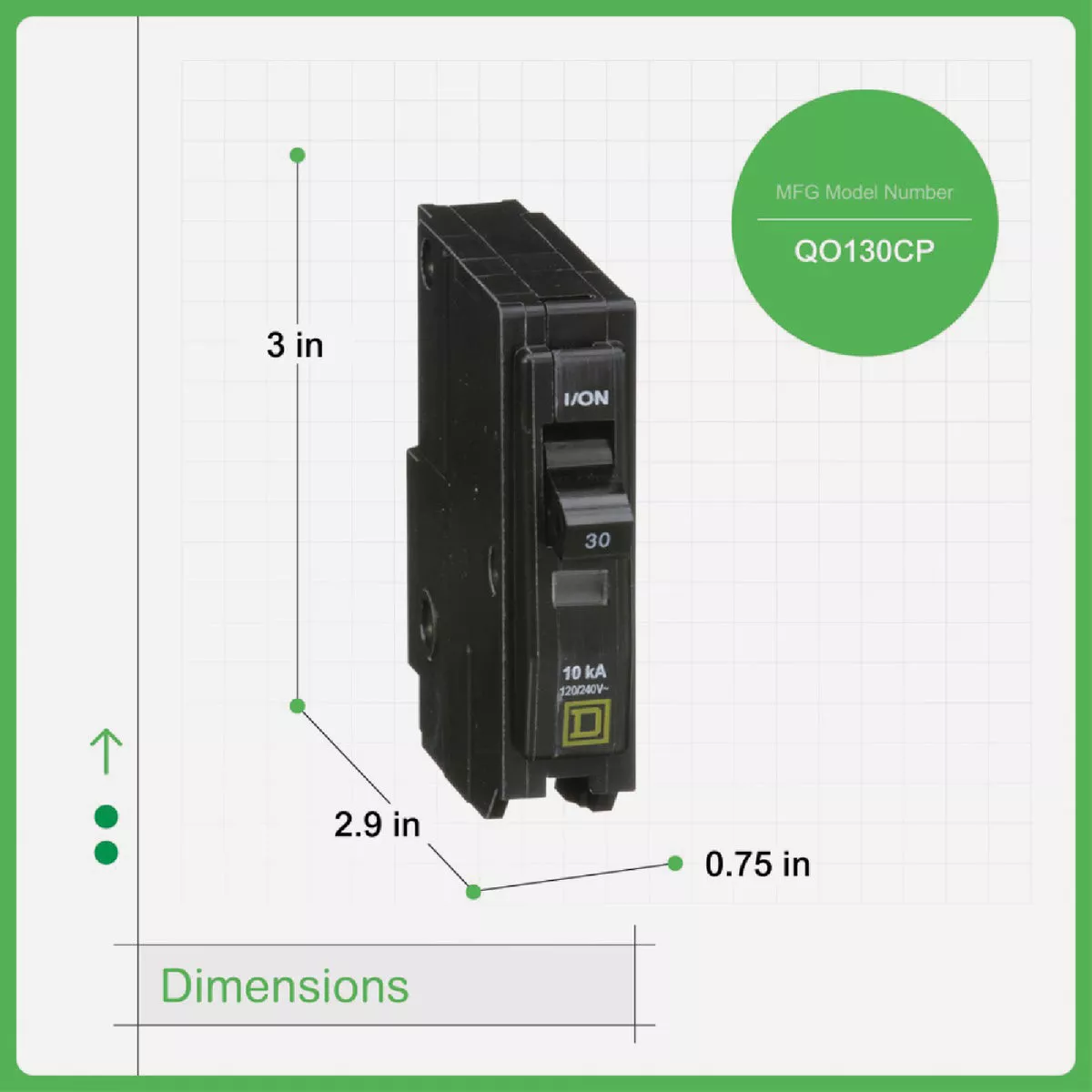

| Width (In.) | 0.75 |
| Brand | Square D |
| UPC | 00047569838002 |
| Product type | Circuit Breaker |
