Square D QO 200A Double-Pole Standard Trip Outdoor Enclosed Raintight Main Breaker

Model #QOM2E2200NRBItem #529315UPC 00785901375302
Shop Square D
Square D QO 200A Double-Pole Standard Trip Outdoor Enclosed Raintight Main Breaker
360 images
360

+ 1 more

Square D QO 200A Double-Pole Standard Trip Outdoor Enclosed Raintight Main Breaker
360 images
Square D QO 200A Double-Pole Standard Trip Outdoor Enclosed Raintight Main Breaker
360 images
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

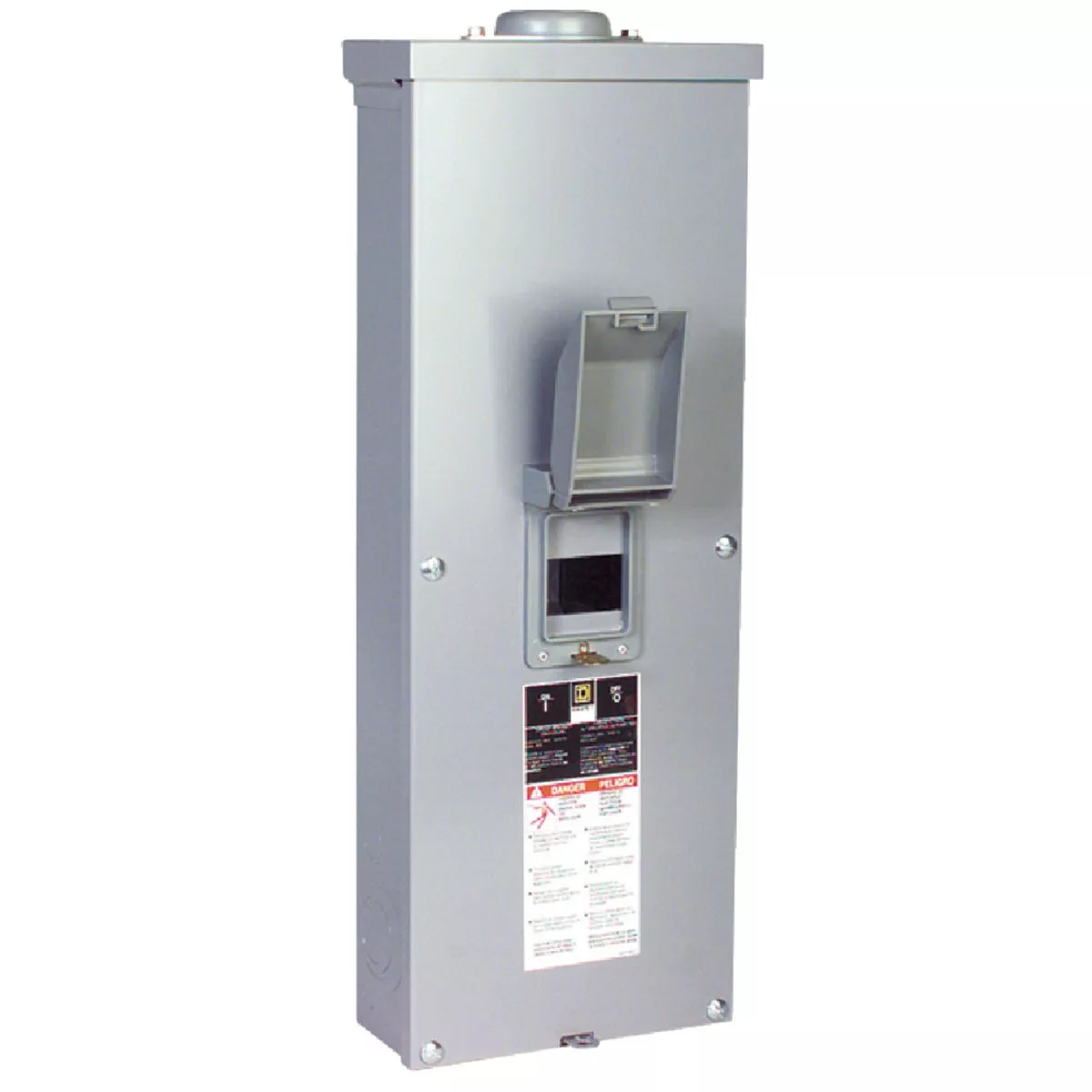

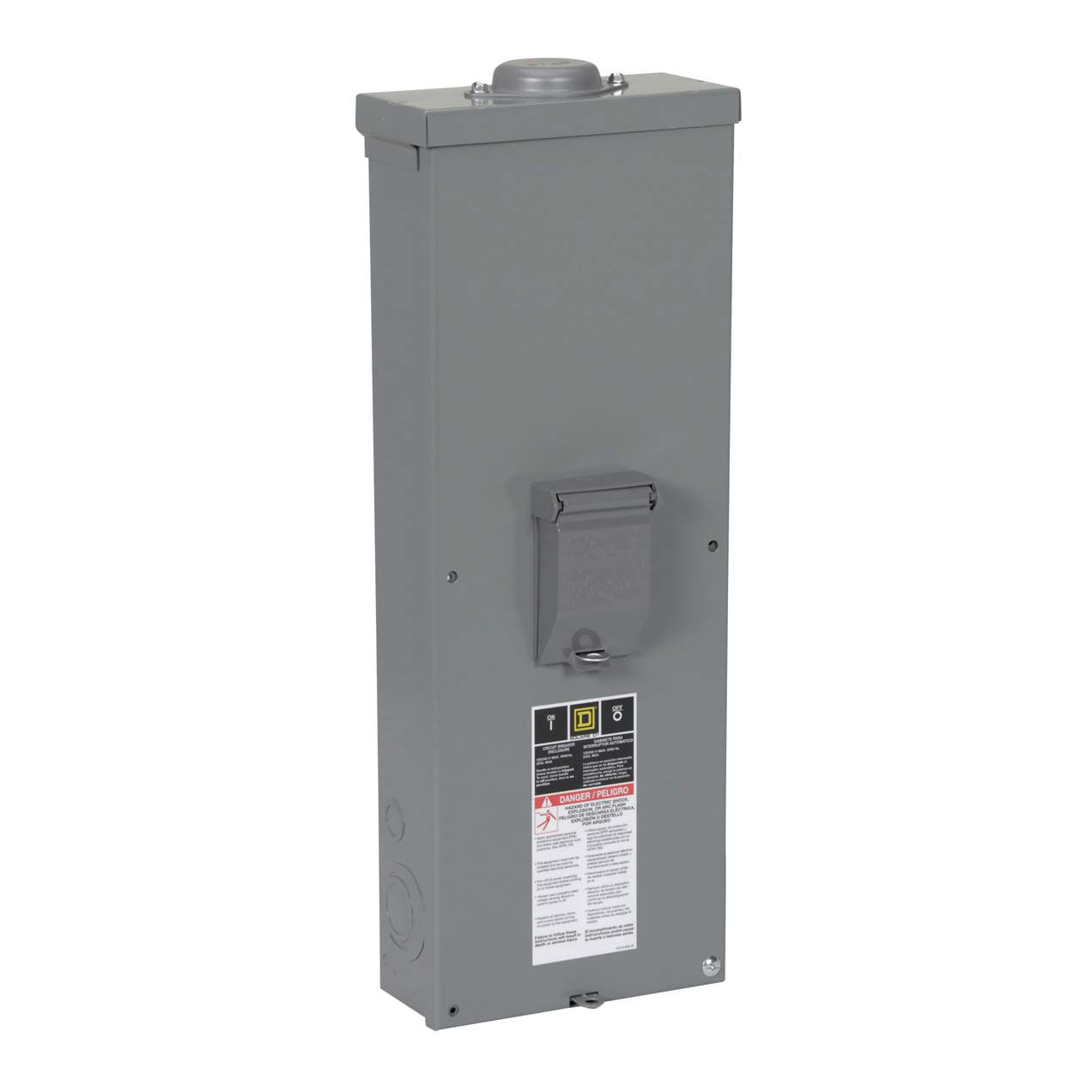

    For use as a separate main breaker or where a main disconnect is required by code to be outside the structure. Outdoor raintight enclosure with factory installed 200 amp main breaker. Separate raintight access door to circuit breaker. Raintight enclosure accepts 3/4 inch through 2 inch type B hubs. 22,000 AIR fault rating. Accepts 100 amp/225 amp QOM2 main breakers. Convenient hook and hang mounting. Provisions for padlocking and sealing the enclosure separately from the breaker are standard. Includes a 2-pole QOM-VH circuit breaker for use as an exterior disconnect. Device is suitable for use as service entrance equipment, and is rated Type-3R for outdoor use. Enclosure accepts a B-hub for top feed applications (sold separately). For non-service entrance equipment applications, ground bar PKOGTA-2 is included. UL (Underwriter's Laboratories) listed.
    • For use as a separate main breaker or where a main disconnect is required by code to be outside the structure
    • Separate raintight access door to circuit breaker
    • Convenient hook and hang mounting
    • Provisions for padlocking and sealing the enclosure separately from the breaker are standard
    • Device is suitable for use as service entrance equipment, and is rated Type-3R for outdoor use
    • UL Listed
    Amperage200
    Voltage120/240
    Number Of Poles2
    Mount TypePlug-On
    CertificationUL Listed
    Interruption TypeStandard Trip
    Frame Size2-Space
    Width (In.)2.5
    Height (In.)3.5
    Depth (In.)2.91
    BrandSquare D
    UPC00785901375302
    Product typeMain Breaker
