Leviton 15A White Commercial Grade 5-15R Duplex Outlet
Model #S02-0CR15-0WSItem #531537UPC 00078477070512
Tap to view
Product overview

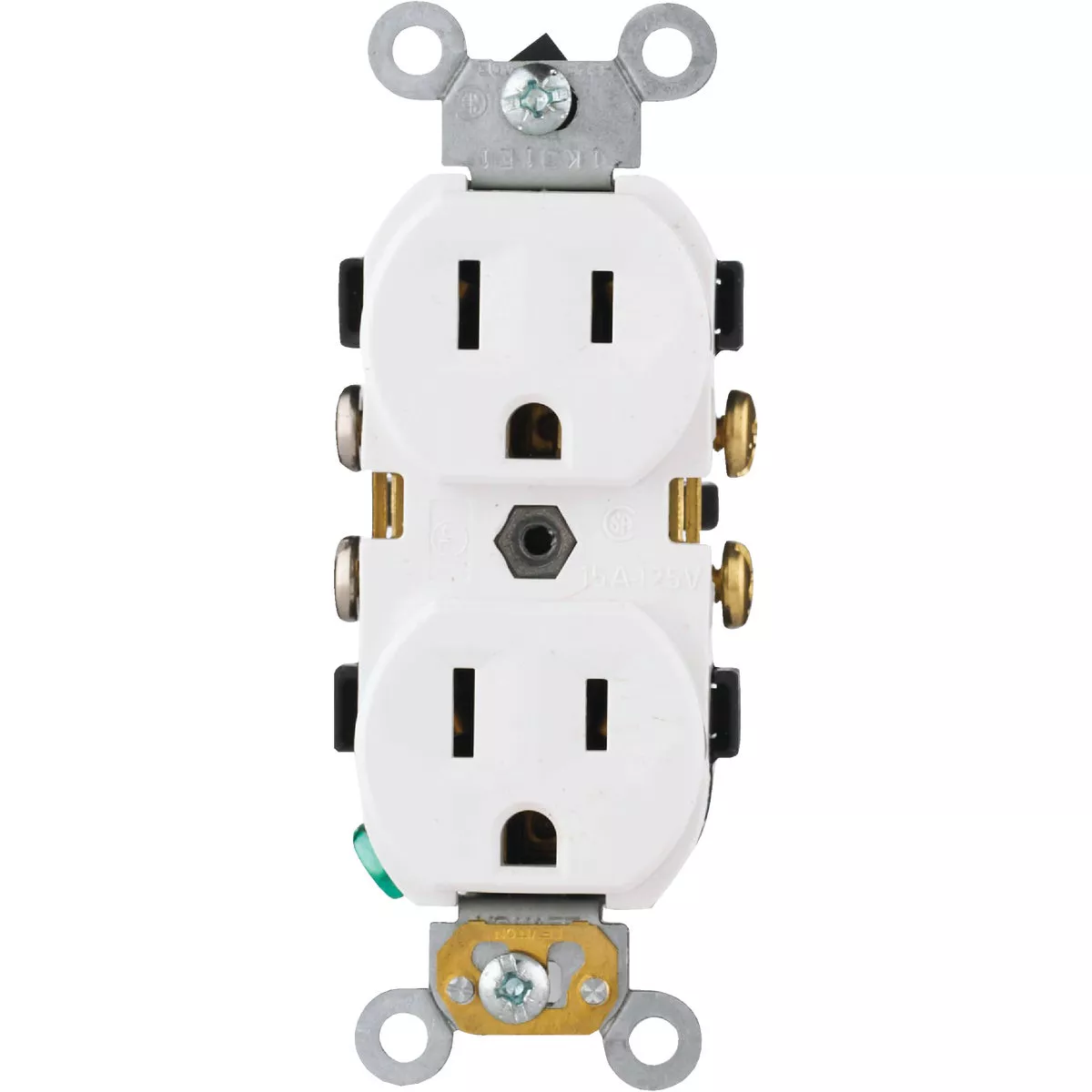

Commercial Specification Grade duplex outlet. Features a shallow design for maximum wiring room. Side wired, large-head terminal screws accept up to No. 10 copper wire. Double-wire power contacts for maximum conductivity and plug retention. Includes captive mounting screws, washer-type break-off plaster ears, and break-off fins for 2-circuit conversion. 15 amps/125 volts, NEMA (National Electrical Manufacturer's Association) 5-15R. Limited 10-year warranty. UL (Underwriter's Laboratories) listed.
- Commercial specification grade
- Shallow design for maximum wiring room
- Side wired, large-head terminal screws accept up to No. 10 copper wire
- Double-wire power contacts for maximum conductivity and plug retention
- Includes captive mounting screws, washer-type break-off plaster ears, and break-off fins for 2-circuit conversion
- Limited 10-year warranty
- UL Listed
Specifications
| Color | White |
| Amperage | 15 |
| Voltage | 125 |
| Number Of Poles | 2 |
| Grade | Commercial |
| Certification | UL Listed |

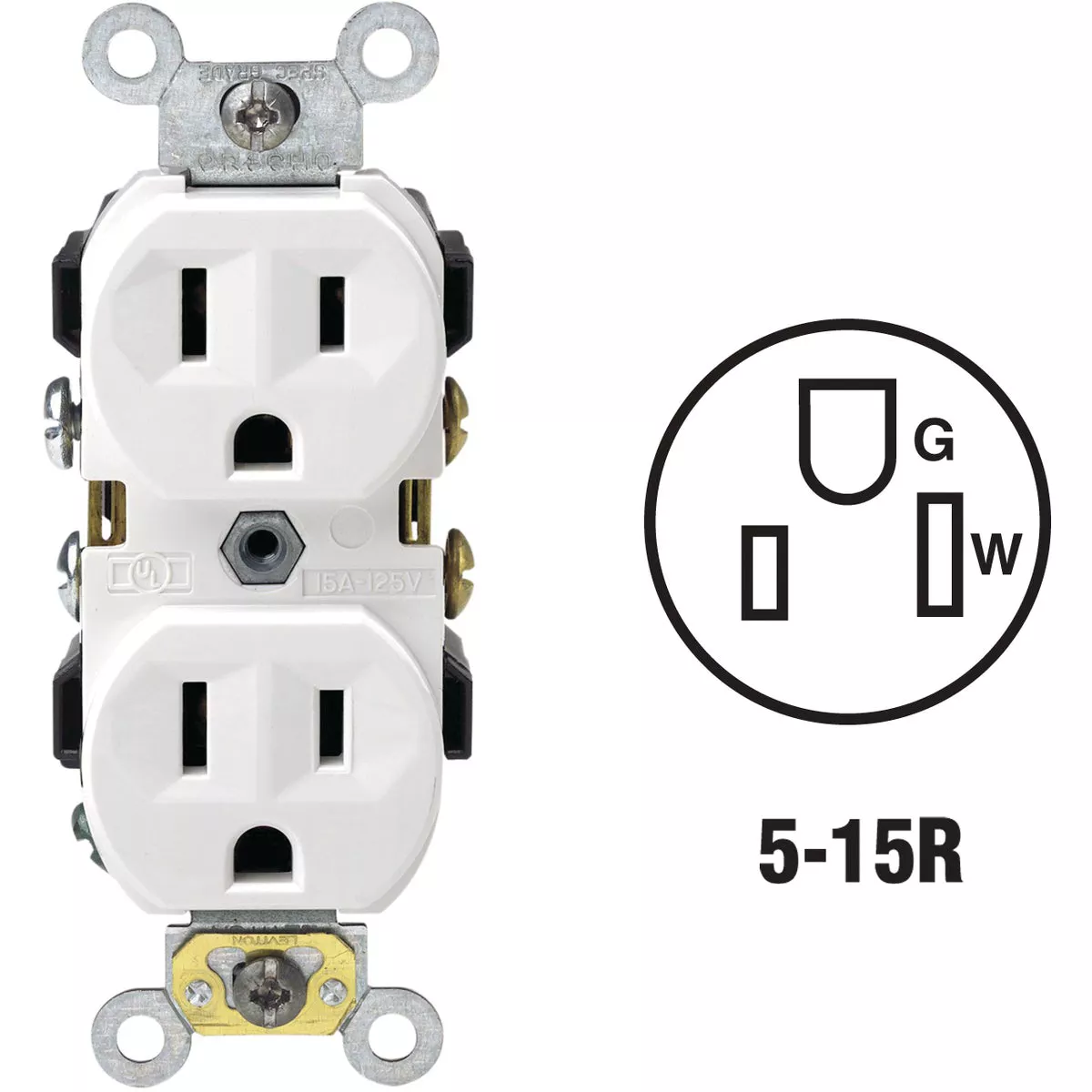

| NEMA Configuration | 5-15R |
| Number Of Wires | 3 |
| Brand | Leviton |
| UPC | 00078477070512 |
| Product type | Duplex Outlet |
