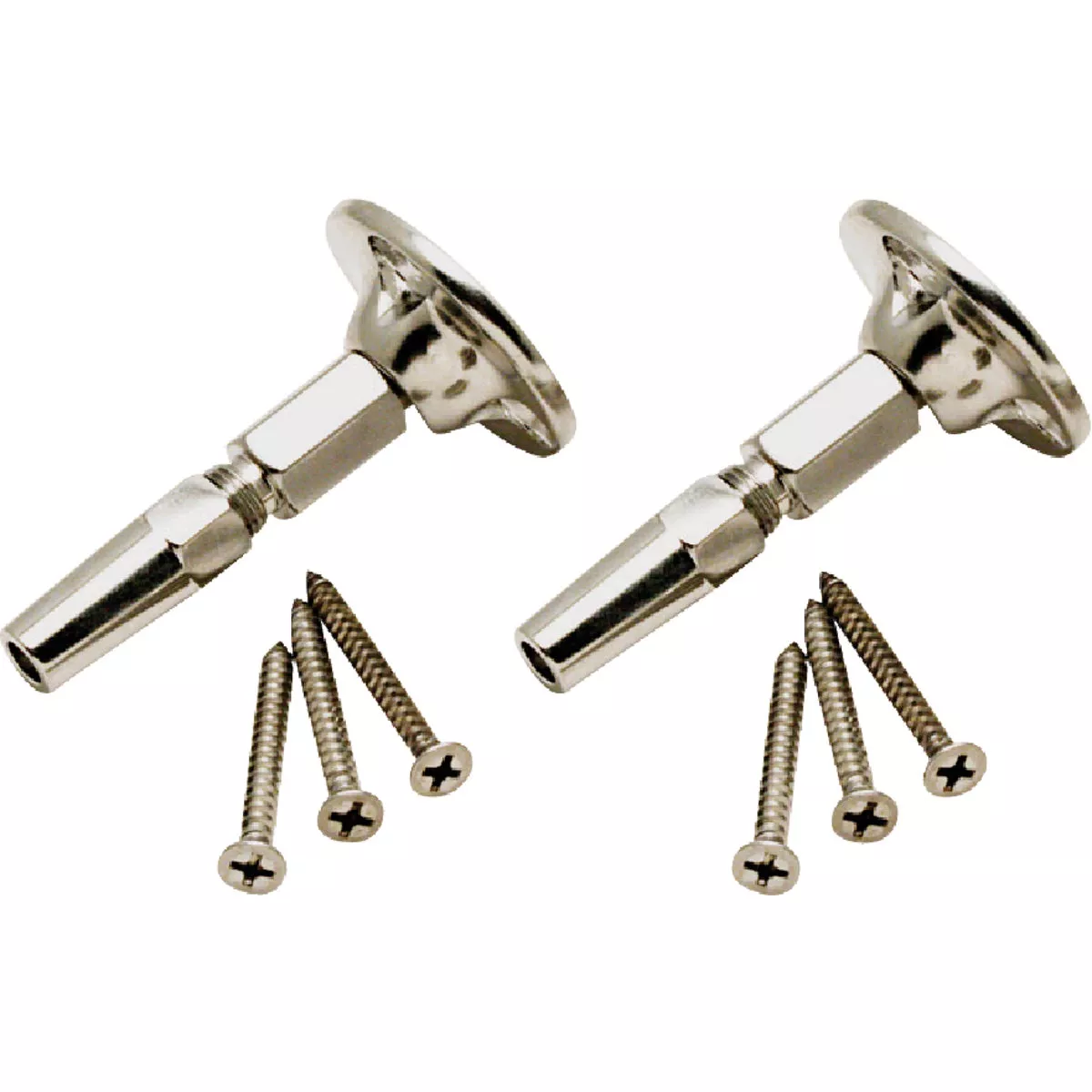

Atlantis Rail System RailEasy 5/32 In. Cable Diameter Cable Swivel End (2-Pack)
Model #C0981-S024Item #161755UPC 00791506981213
Tap to view
Product overview
Stainless steel 316, swivel end fits 5/32-inch stainless steel cable. Adjustable up to 45 degrees to be used for straight runs and stairs. Body independently rotates 360 degrees and requires a RailEasy tensioner at the opposite end. This is a stationary fitting (no tensioning capability).
- Non-tensioning end of a cable railing system
- Used in conjunction with a RailEasy Tensioner in order to tension the cable
- Used on short cable runs (up to 25 ft. max) as a fixed end
- Utilizes 5/32" diameter RailEasy Cable
- Features a compression fitting that can be installed with simple hand tools, no swaging needed
- Base is slotted to achieve angles up to 45 degrees for stairs and angles
- Made from 316L stainless steel for maximum corrosion resistance and durability
- Surface mounted with three #8 1-1/2" stainless steel screws
- Screws included
Specifications
| Material | Stainless Steel |
| Angle | Up to 45 Deg |
| Cable Diameter | 5/32 In. |
| Rotation | 360 Deg |
| Brand | Atlantis Rail Systems |
| UPC | 00791506981213 |
| Product type | Cable Swivel End |
