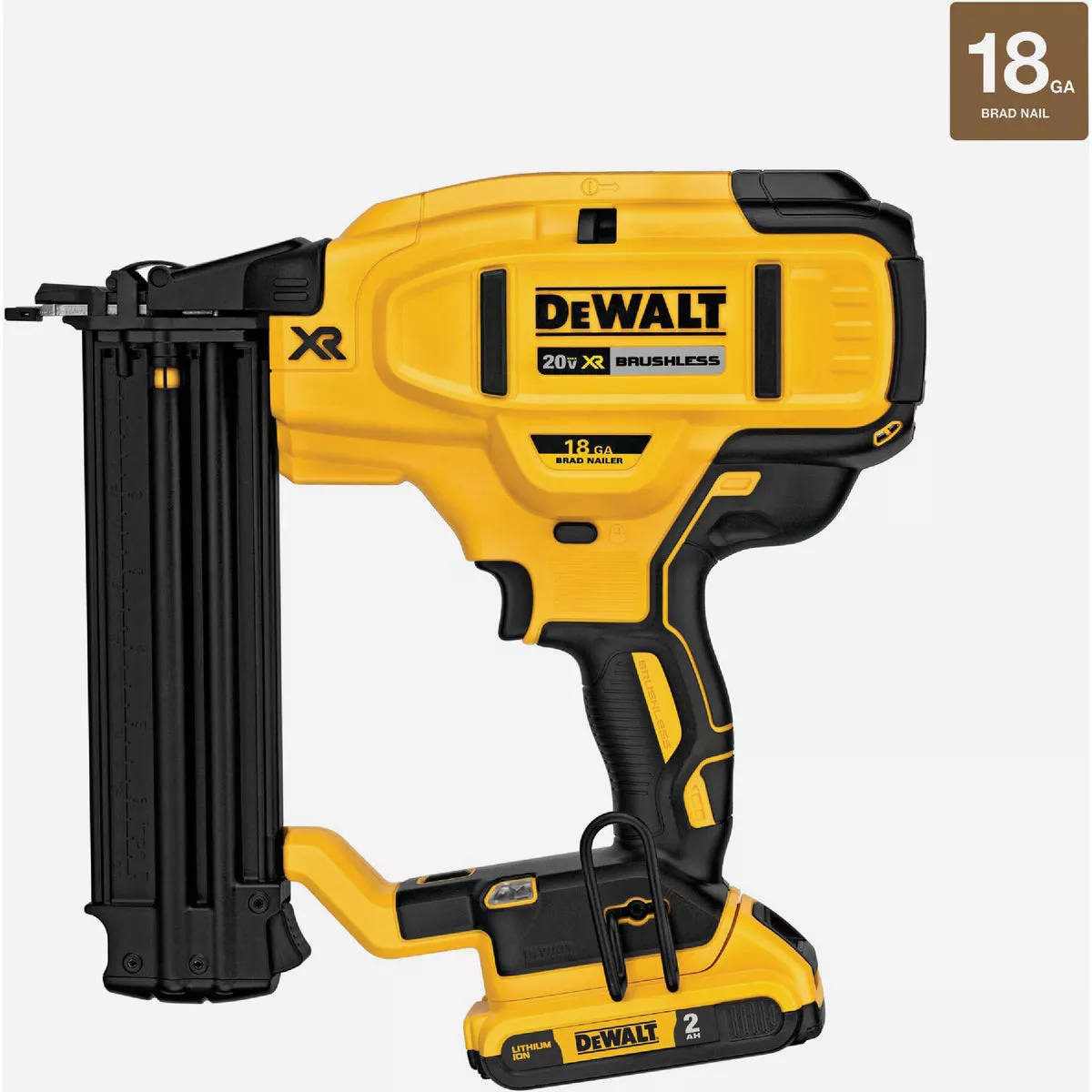

DEWALT 20V MAX XR Brushless 18-Gauge 2-1/8 In. Cordless Brad Nailer Kit with 2.0 Ah Battery & Charger
Model #DCN680D1Item #303438UPC 00885911482226
Tap to view
Product overview
The DEWALT DCN681 18 Gauge Narrow Crown Stapler drives 18 Gauge 1/4 in. narrow crown staples from 1/2 in. to 1-1/2 in. which makes it ideal for cabinetry, furniture, paneling, and flooring underlayment. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery the DCN681 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. Includes DCN681 cordless brad nailer, (1) DCB203 2.0 Ah battery, battery charger, and kit bag.

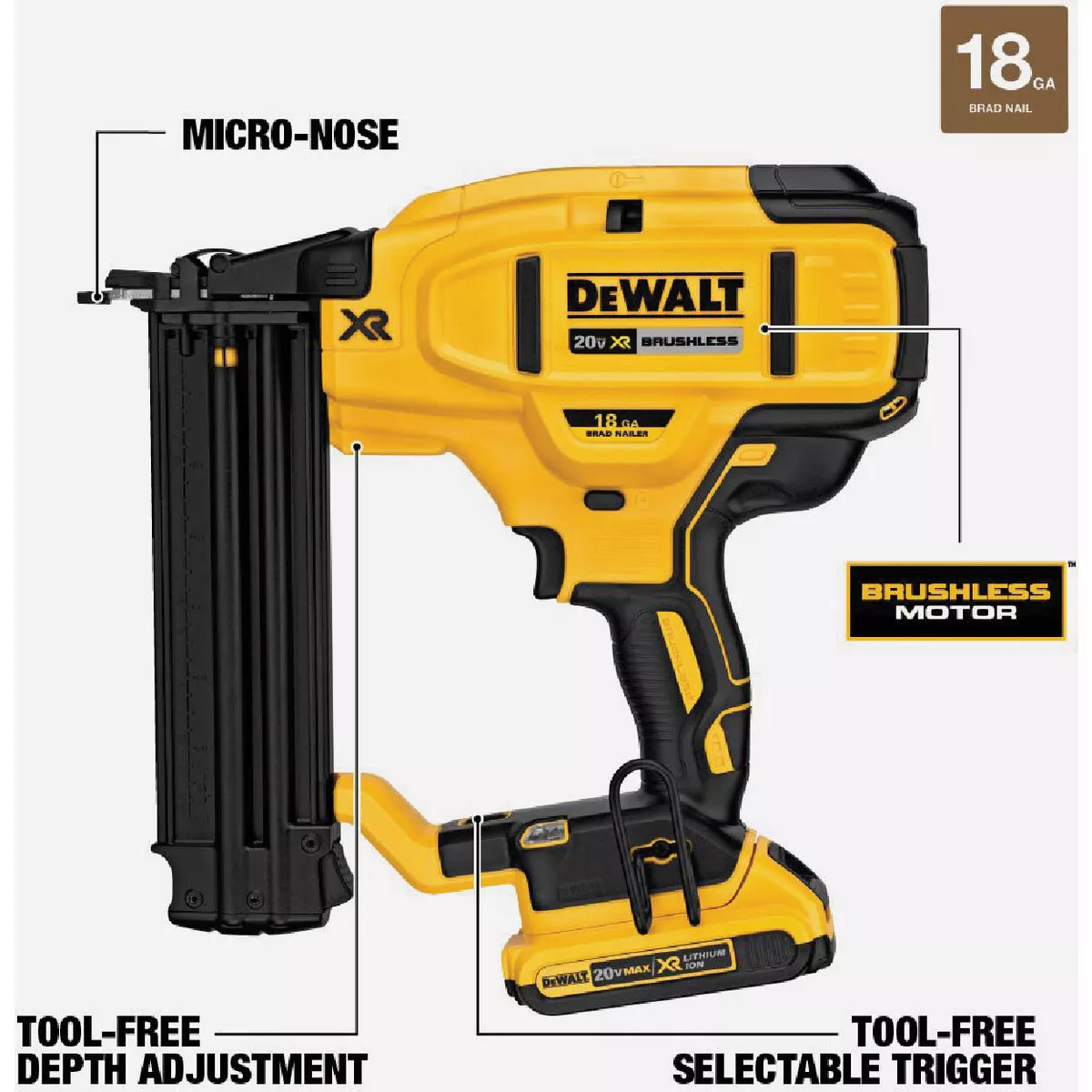

- Brushless motor maximizes runtime and durability
- Tool-free depth adjustment for precise countersinking of nails
- Tool-free jam release to quickly and easily clear nail jams
- Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
- Tool-free selectable trigger for sequential or contact actuation modes
- Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
- Adjustable belt hook for left or right attachment depending on user preference
- Low nail lockout prevents dry firing and unwanted marks on the work material
Specifications
| Voltage | 20 |
| Weight | 5.3 Lb. |
| Warranty | 3 Year |
| Battery Type | Lithium-Ion |
| Charger Included | Yes |
| Corded/Cordless | Cordless |
| Case Included | Yes |
| Motor Type | Brushless |
| Ampere Hour | 2.0 Ah |
| Batteries Included | Yes |
| Dimensions | 3.7 In. W x 11.8 In. H x 10.3 In. L |
| Gauge | 18 |
| Fastener Range | 5/8 In. to 2-1/8 In. |
| Fastener Capacity | 110 Nails |
| Firing Mode | Contact or Sequential |
| Magazine Load | Side |
| Battery Amp Hour | 2.0 |
| Battery Platform | DEWALT 20V MAX |
| Battery Platorm | DEWALT 20V MAX |
| Width (In.) | 3.7 |
| Height (In.) | 11.8 |
| Length (In.) | 10.3 |
| Minimum Fastener Size | 5/8 In. |
| Maximum Fastener Size | 2-1/8 In. |
| Weight (Lb.) | 5.3 Lb. |
| Maximum Fastner Size | 2-1/8 In. |
| Power Type | Battery |
| Brand | DEWALT |
| UPC | 00885911482226 |
| Product type | Cordless Brad Nailer |
