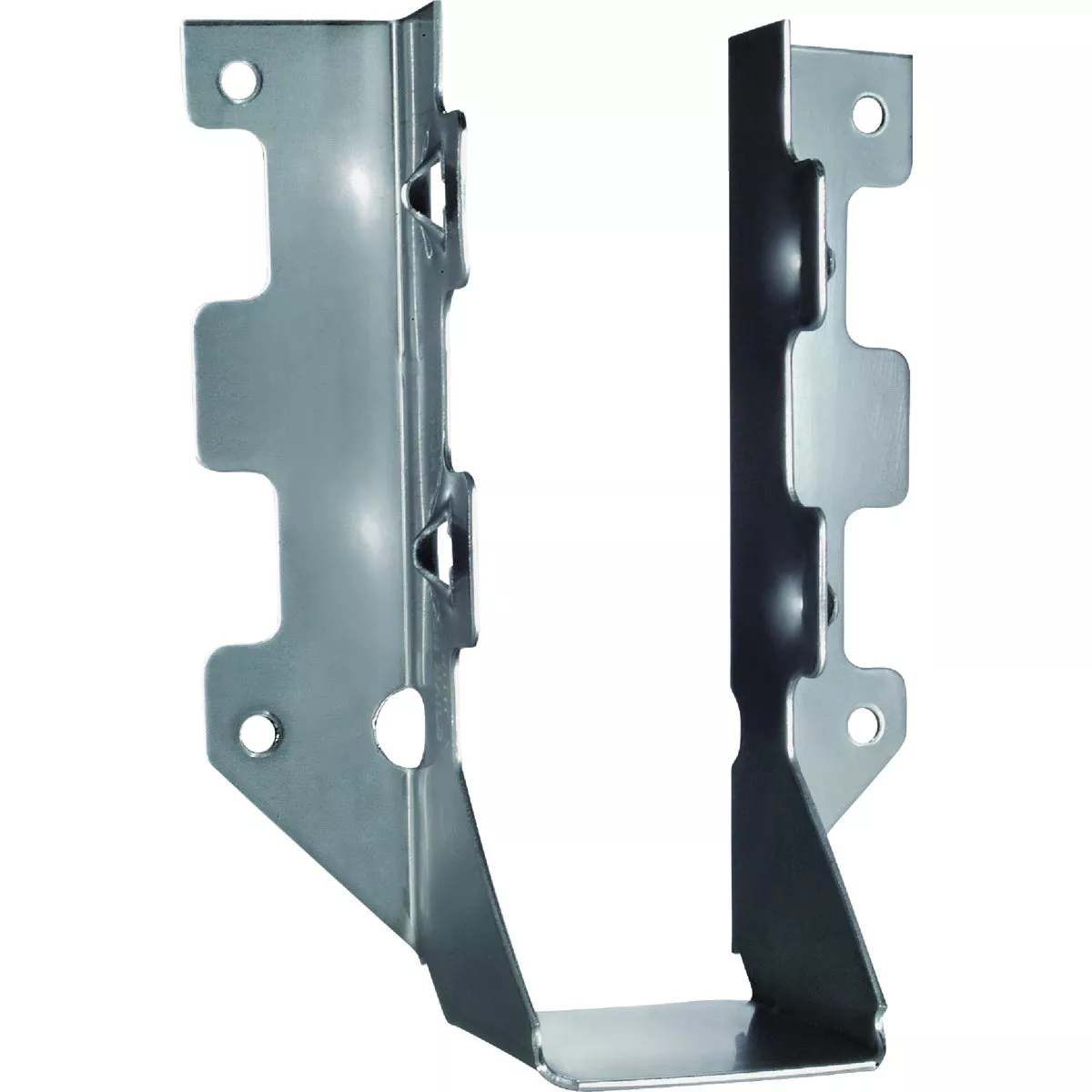

Simpson Strong-Tie Stainless Steel 2x6 Face Mount Joist Hanger
Model #LUS26SSItem #153722UPC 00044315504907
Tap to view
Product overview
Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
- Patented double-shear nailing design provides greater strength with fewer nails
- Speed prongs for fast and easy installation
- Angled joist nailing easier in tight spaces
- Do not bend or remove tabs
- Nominal joist size: 2x6 and 2x8
- Made from 18 Ga. steel
- Stainless steel for high/severe corrosion resistance
Specifications
| Material | Steel |
| Finish | Stainless Steel |
| Gauge | 18 |
| Install With | Install with 10d common nails |
| Joist Size | 2x6 and 2x8 |
| Width (In.) | 3.6545 |
| Height (In.) | 4.796 |
| Base (In.) | 2.046 |
| Brand | Simpson Strong-Tie |
| UPC | 00044315504907 |
| Product type | Joist Hanger |
