Simpson Strong-Tie 4 In. x 6 In. 16 ga Z-Max ABW Post Base
Tap to view
Product overview

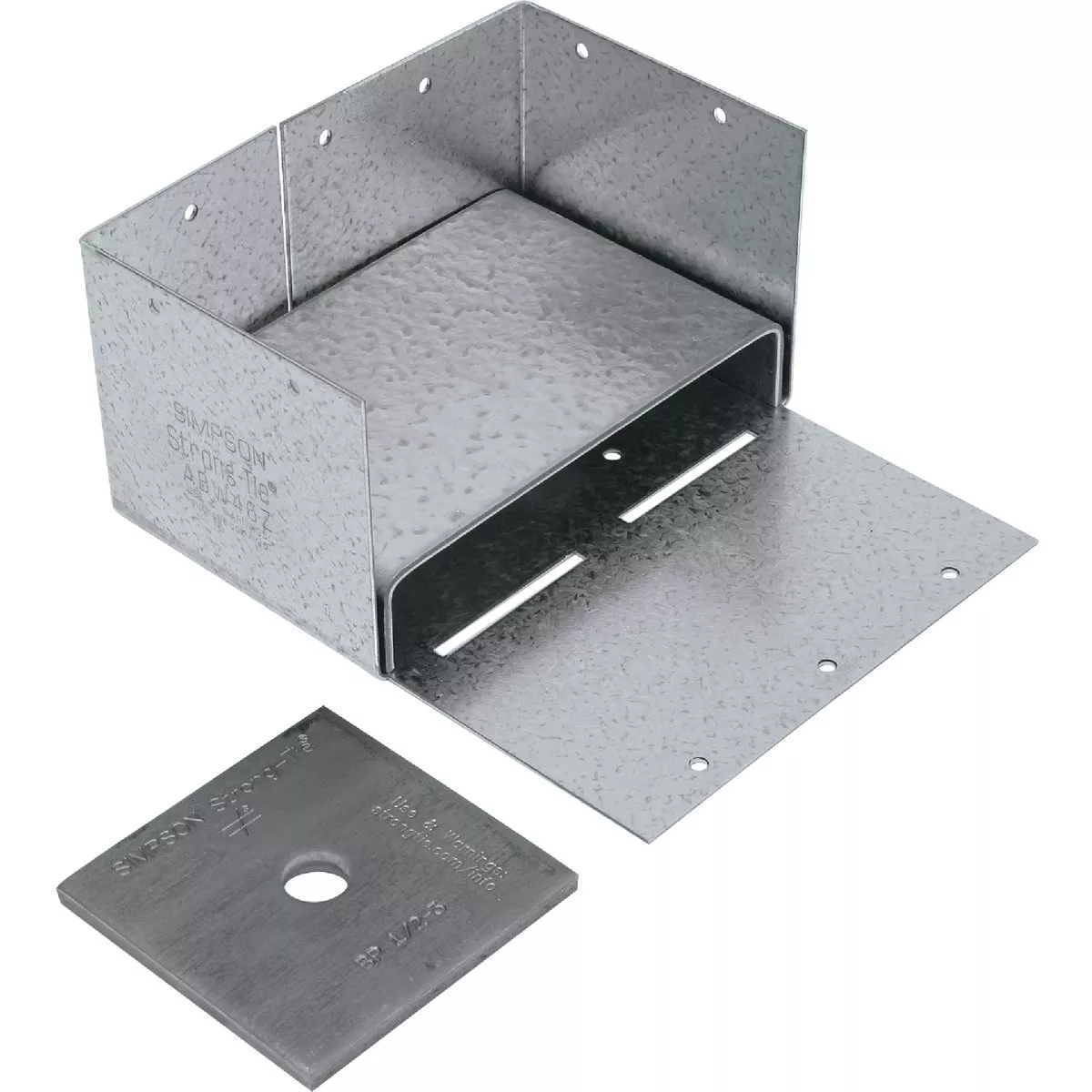

An adjustable retrofit post base with a 1" standoff and increased capacity to resist uplift loads. Features a slot in the ABW that allows flexible positioning around the anchor bolt making precise post placement easier. The 1" standoff helps prevent rot at the end of the post and meets code requirements for structural post that are installed in basements or exposed to weather or water splash. Place the standoff base and then the post in the ABW and fasten on 3 vertical sides. Installs with nails or Strong-Drive SD Connector screws. Bend the fourth side of the ABW and fasten. Finish ZMAX coating.
- Fasten on 3 vertical sides
- Bend up the forth side and fasten
- Use nails or Strong-Drive SD Connector Screws
- 4 In. x 6 In.
- 16 ga
Product manuals and information
Specifications
| Material | Steel |
| Type | Standoff |
| Finish | Z-Max |
| Size | 4 In. x 6 In. |
| Gauge | 16 ga |
| Install With | 1/2 In. Dia Anchor or 10-10d Nails |
| Dimensions | 4 In. W x 6 In. L x 2-13/16 In. H |
| Uplift | 845 Lb. |
| Download | 4590 Lb. |
| Brand | Simpson Strong-Tie |
| UPC | 00707392900702 |
