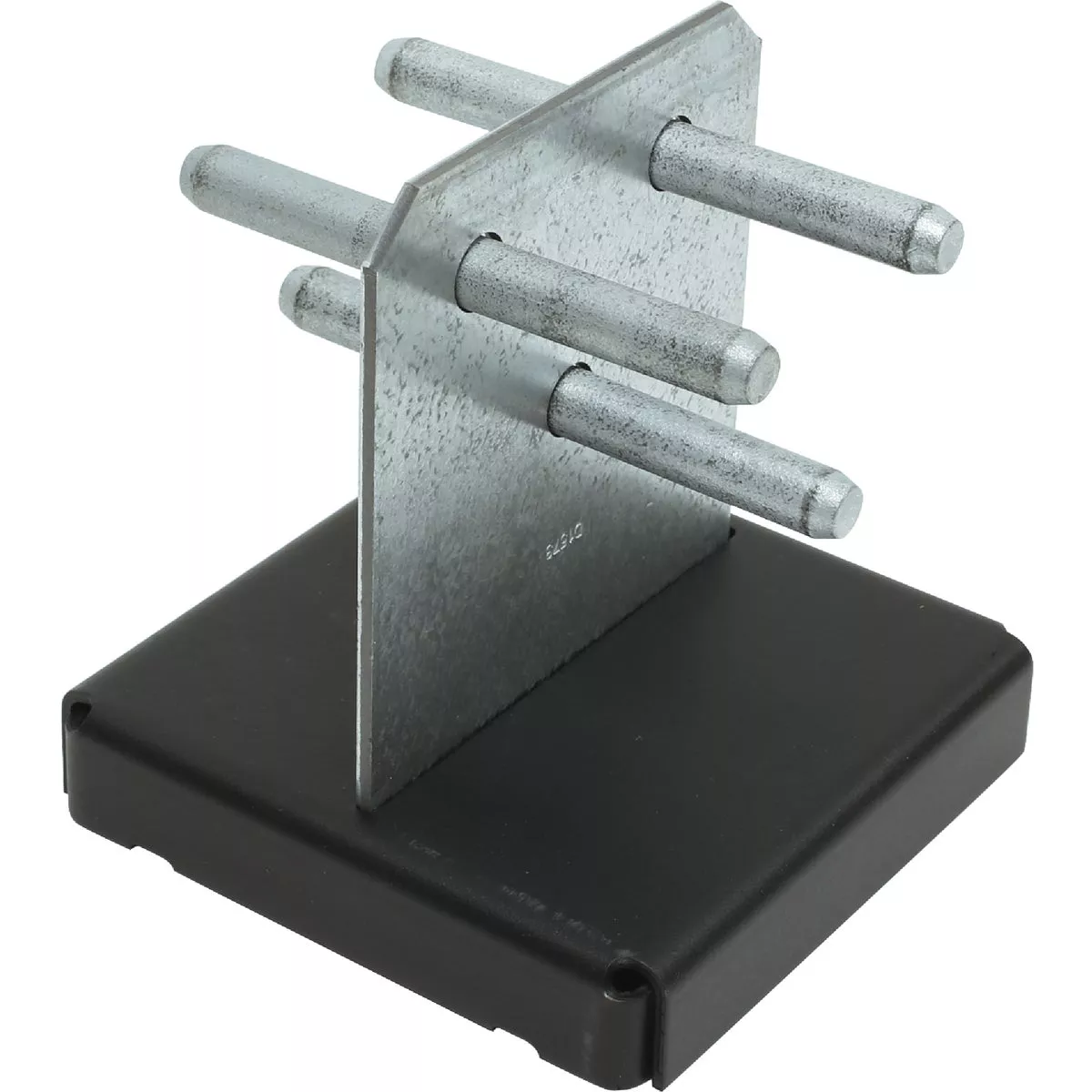

Simpson Strong-Tie ZMAX 5-3/8 In. x 5-3/8 In. 10 ga Concealed Post Base
Model #CPT66Z UPC 00707392373902
Item #100259
Tap to view
Product overview
Both Model No. CPTZ44 and CPTZ66 post bases incorporate a knife plate with a standoff base. It achieves a clean, concealed look while providing a 1" standoff height above the concrete. The concealed post base is installed with 1/2" dia (diameter) galvanized pins (supplied).
- 1" standoff reduces the potential for decay
- Tested and load rated for uplift, download and lateral load
- ZMAX coating
- 5-3/8 In. x 5-3/8 In.
Specifications
| Material | Steel |
| Type | Standoff |
| Finish | Z-Max |
| Size | 5-3/8 In. x 5-3/8 In. |
| Gauge | 10 ga |
| Install With | Anchor 2, 5/8 dia; Post 3,1/2 x 4-3/4 |
| Dimensions | 6 In. x 6 In. |
| Uplift | 4430 Lb. |
| Download | 22,315 Lb. |
| Brand | Simpson Strong-Tie |
| UPC | 00707392373902 |
| Product type | Post Base |
