M-D Building Products PROVA 32 In. x 60 In. Offset Drain Shower Kit
Model #80210Item #100328UPC 00043374802108
Tap to view
Product overview
PROVA-SHOWER KIT is the ultimate waterproofing system for tiled showers. These kits include all components needed to build a fully bonded, water-tight walk-in shower. High-density expanded polystyrene shower pans eliminate the need for time-consuming mortar base and are presloped to guarantee proper drainage every time when installed on a suitable substrate that is level, flat, and structurally sound. Waterproofing components included are made of polypropylene PROVA-MAT membrane and are preshaped and pre-cut to install easily and quickly.
- Expanded polystyrene components and polypropylene waterproofing membrane
- Includes all components needed to install a fully waterproof tiled shower quickly and easily
- 32 in. W x 60 in. L
- White foam and pink membrane

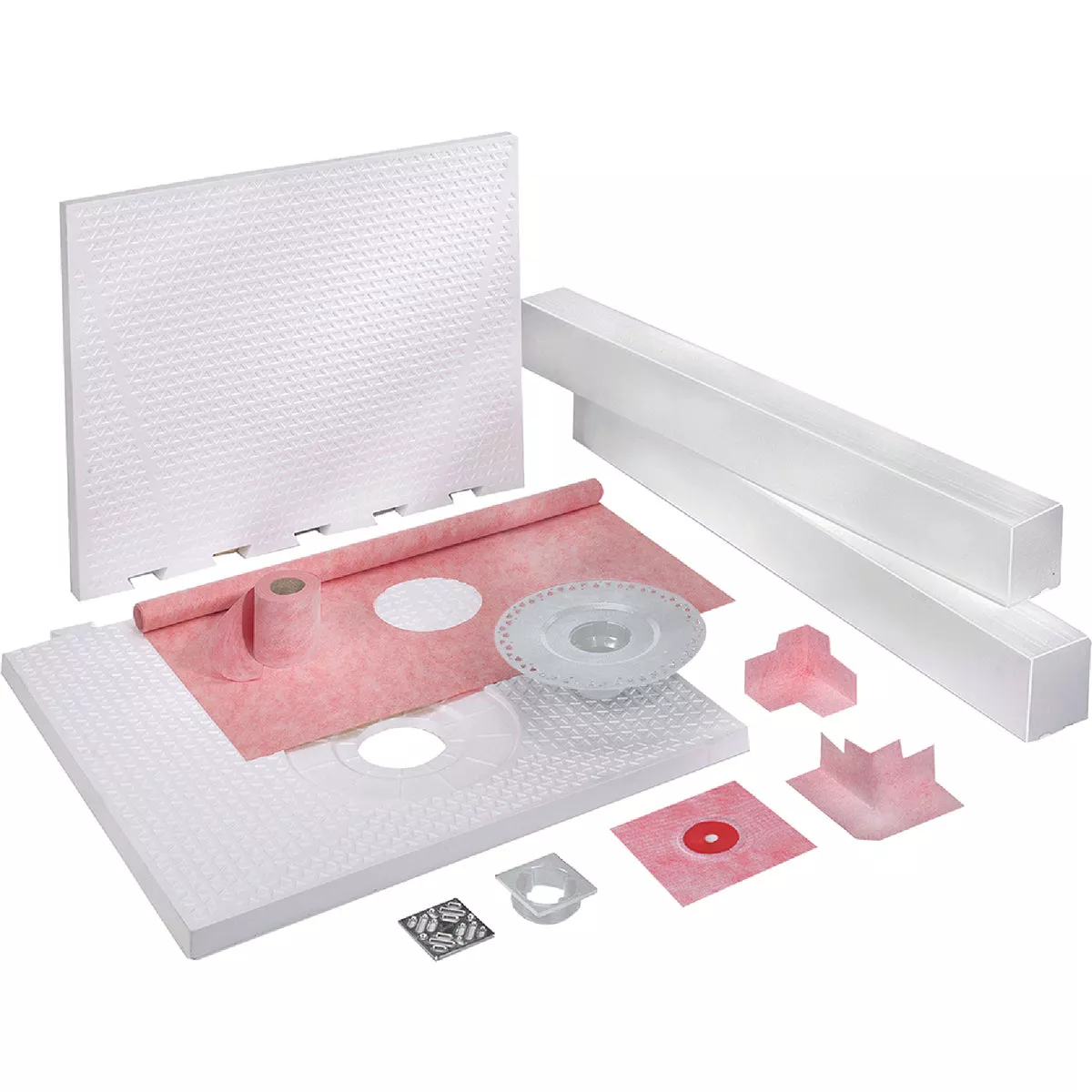

- Kit includes (1) PROVA PAN 32 in. x 60 in., (1) PROVA-MAT 135 sq. ft., (1) PROVA-MAT PAN LINER 32 in. x 60 in., (1) PROVA DRAIN (PVC), (1) PROVA DRAIN GRATE (Stainless Steel), (4 inside, 2 outside) PROVA CORNER 4-1/2 in. x 2-1/4 in. x 3-1/2 in., (1) PROVA JOINT STRIP 41 ft.., (1) PROVA PIPE SEAL 4-3/4 in. x 4-3/4 in. x 7/16 in. diameter for pipe op
- Additional PROVA-SHOWER SYSTEM EXTENSIONS sold separately for larger shower configurations
- Can be trimmed to fit smaller sizes
- For use with a 2 in. drain pipe
- Premium polymer-modified thin set mortar required for installation, no premixed mortar or mastic
- Protects wall cavities against water and vapor penetration
Specifications
| Color | WHITE |
| Material | Polypropylene |
| Dimensions | 32. In. W x 60 In. L |
| Drain Location | Offset Drain |
| Warranty | 10 Year |
| Shower Type | Offset |
| Wall Installation Type | Offset |
| Surface Type | PVC |
| Number of Shelves | 1 |
| Approximate Length x Width | 32. In. W x 60 In. L |
| Shower Kit Type | Offset |
| Brand | M-D |
| UPC | 00043374802108 |
| Product type | Shower Kits |
