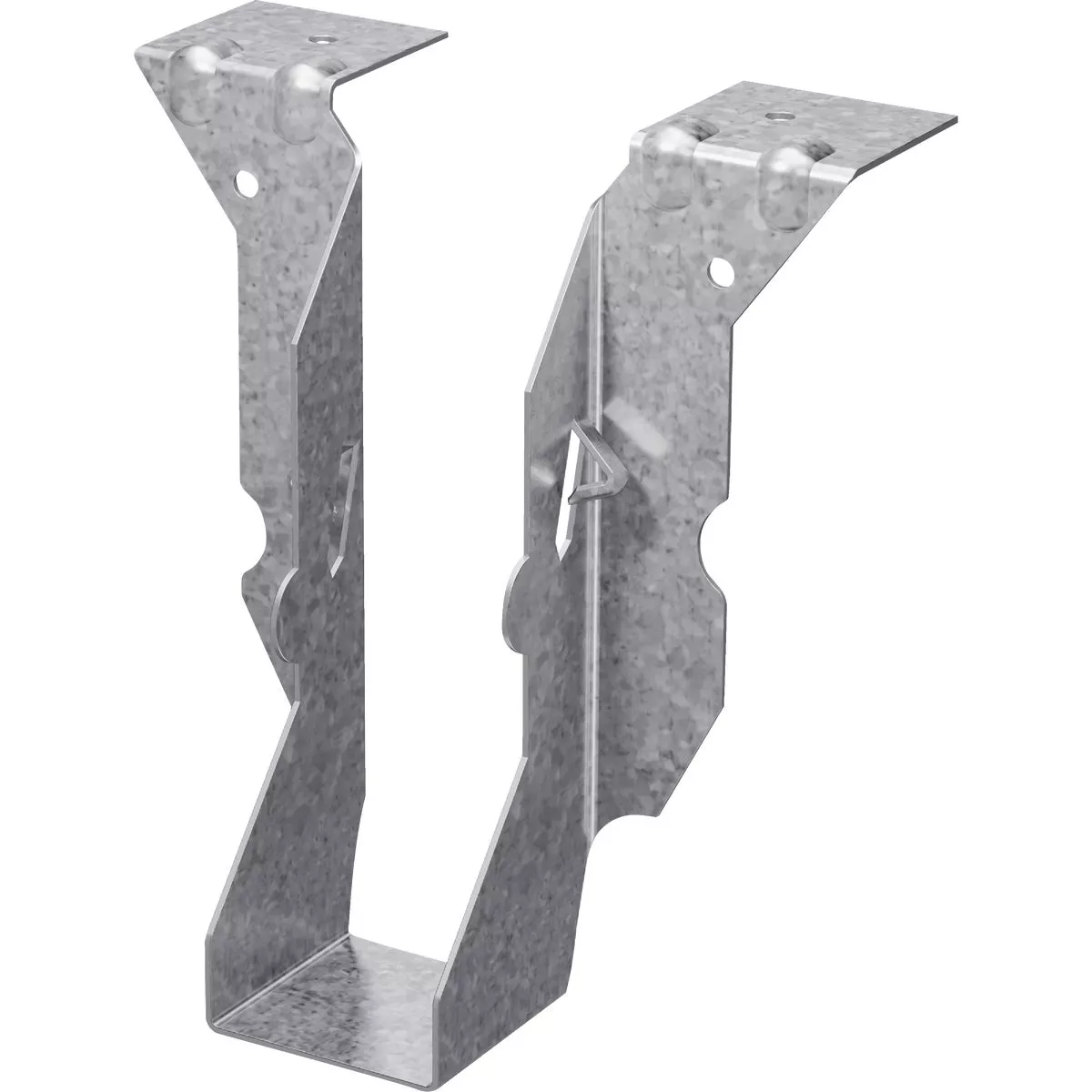

Simpson Strong-Tie 2 In. x 6 In. Top Flange Joist Beam Hanger
Model #JB26Item #100747UPC 00044315655302
Tap to view
Product overview
The JB hanger is cost effective and features a min/max joist nailing option. Min nailing featuring positive angle nailing targets for moderate load conditions whereas the max nailing generates capacities for higher loads. The unique 2 level embossment provides added stiffness to the top flange. The joist beam hanger cannot be modified. 18-gauge galvanized steel.
- Min/max joist nailing option
- Added stiffness
- 2 In. x 6 In.
- Galvanized
Specifications
| Material | Steel |
| Type | Top Flange |
| Finish | Galvanized |
| Size | 1-9/16\ W x 5-3/8\ H x 1-1/2\ Base |
| Gauge | 18 |
| Joist Size | 2 In. x 6 In. |
| Width (In.) | 1.5625 |
| Height (In.) | 5.375 |
| Base (In.) | 1.5 |
| Brand | Simpson Strong-Tie |
| UPC | 00044315655302 |
| Product type | Joist Hanger |
