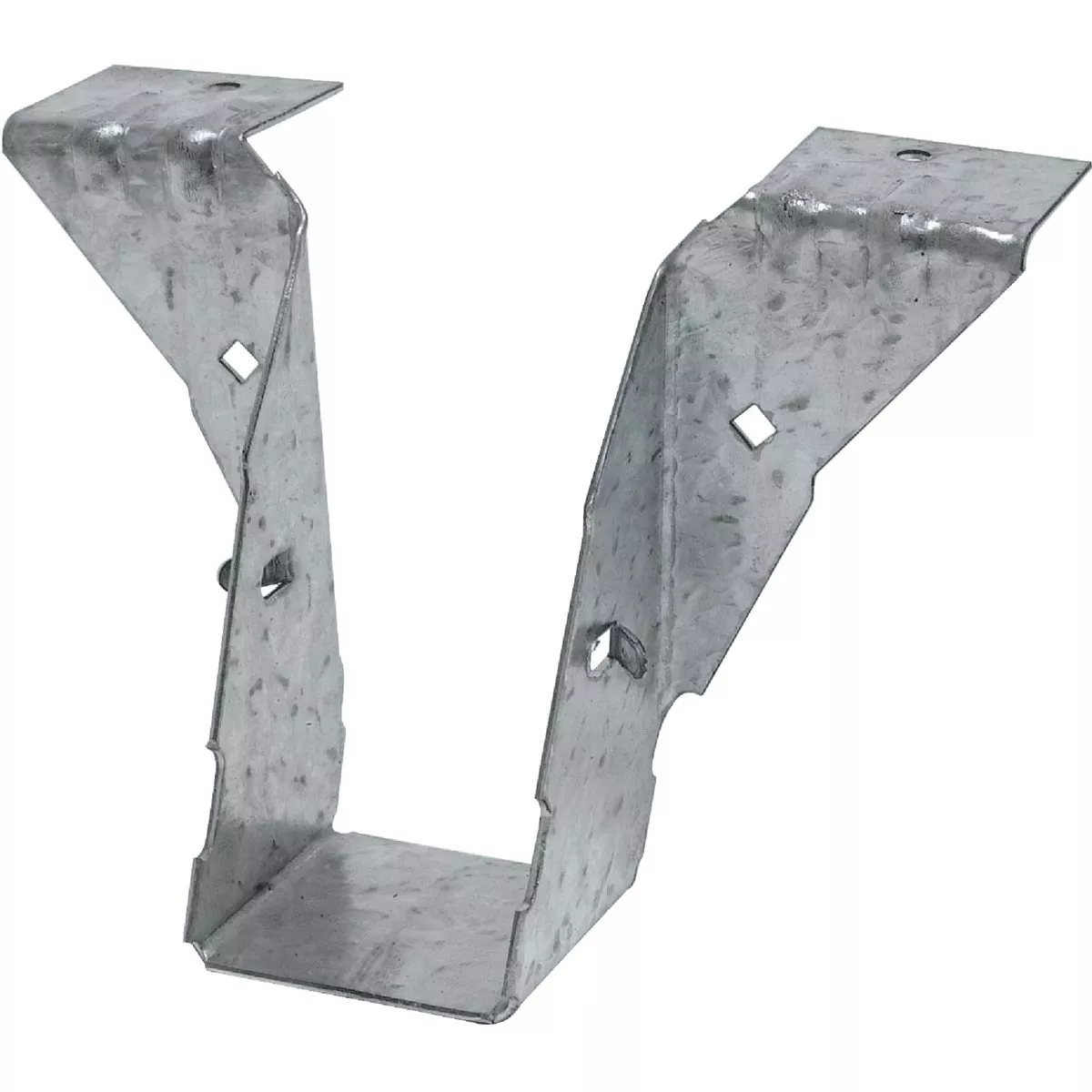

Simpson Strong-Tie 3-3/8 In. 18 ga Galvanized Steel ZMax Post Frame Hanger
Model #PF24ZItem #102261UPC 00707392730903
Tap to view
Product overview
The PF post frame hanger has patented double shear nailing to speed installation. Diamond holes allow easy alignment and attachment. Carried member nails must be driven at an angle through the joist into the header to achieve catalog table loads. Cannot be modified.
- Double shear nailing
- Diamond holes
- 1-9/16" W x 3-3/8" H x 1-1/2" base
- Z-Max
Specifications
| Material | Steel |
| Finish | Z-Max |
| Size | 1-9/16\ W x 3-3/8\ H x 1-1/2\ base |
| Gauge | 18 ga |
| Install With | 2-10d fasteners |
| Brand | Simpson Strong-Tie |
| UPC | 00707392730903 |
| Product type | Post Frame Hanger |
