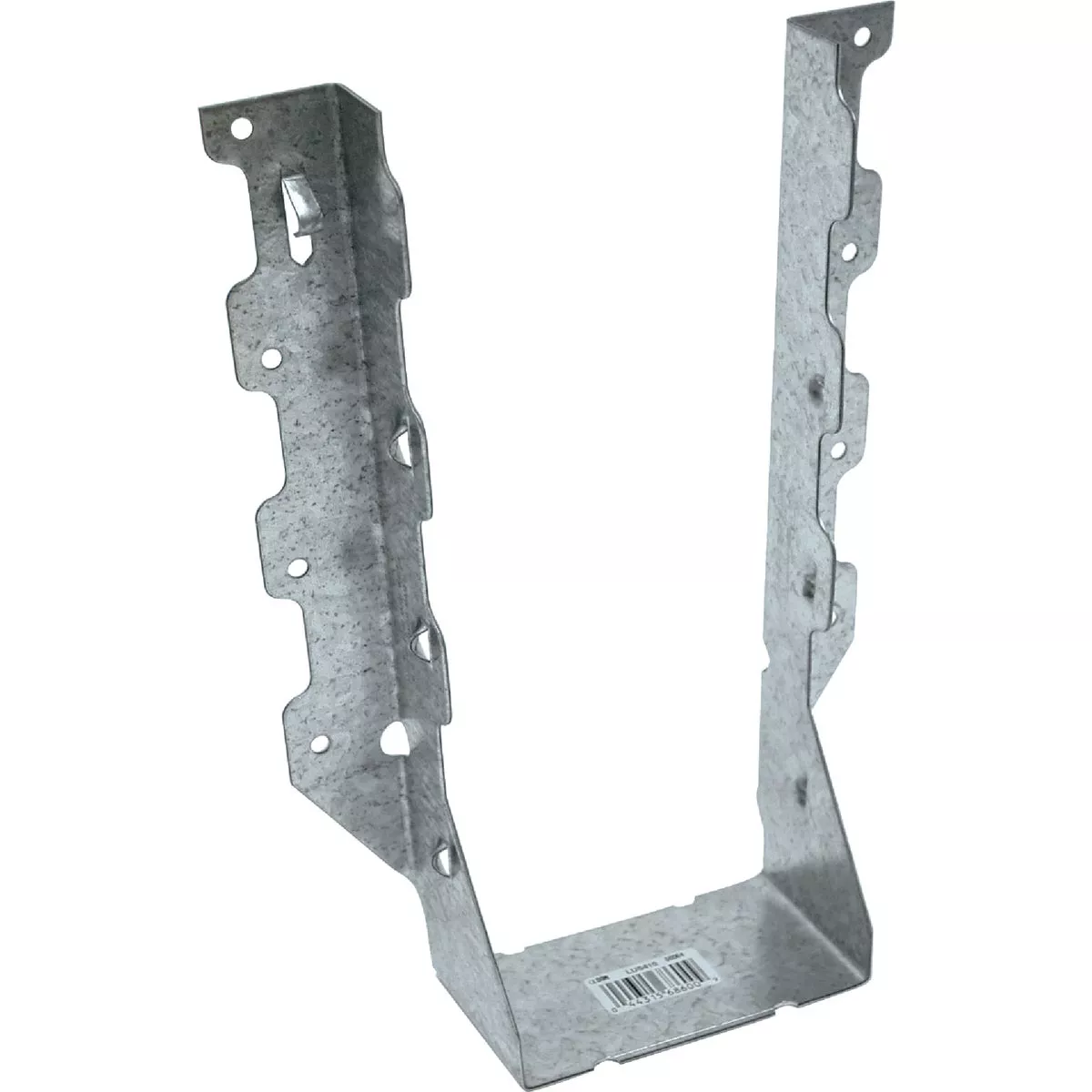

Simpson Strong-Tie Galvanized 4 x 10 Face Mount Joist Hanger
Model #LUS410Item #106806UPC 00044315686009
Tap to view
Product overview
The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- LUS-series hangers are tested, load rated and code compliant
Specifications
| Material | Steel |
| Type | Double Shear |
| Finish | Galvanized |
| Size | 3-9/16 In. W x 8-3/4 In. H x 2 In. Base |
| Gauge | 18 |
| Install With | 8-16d Nails on header and 6-16d Joist |
| Joist Size | 4 In. x 10 In. |
| Width (In.) | 3.5625 |
| Height (In.) | 8.75 |
| Base (In.) | 2 |
| Brand | Simpson Strong-Tie |
| UPC | 00044315686009 |
| Product type | Joist Hanger |
