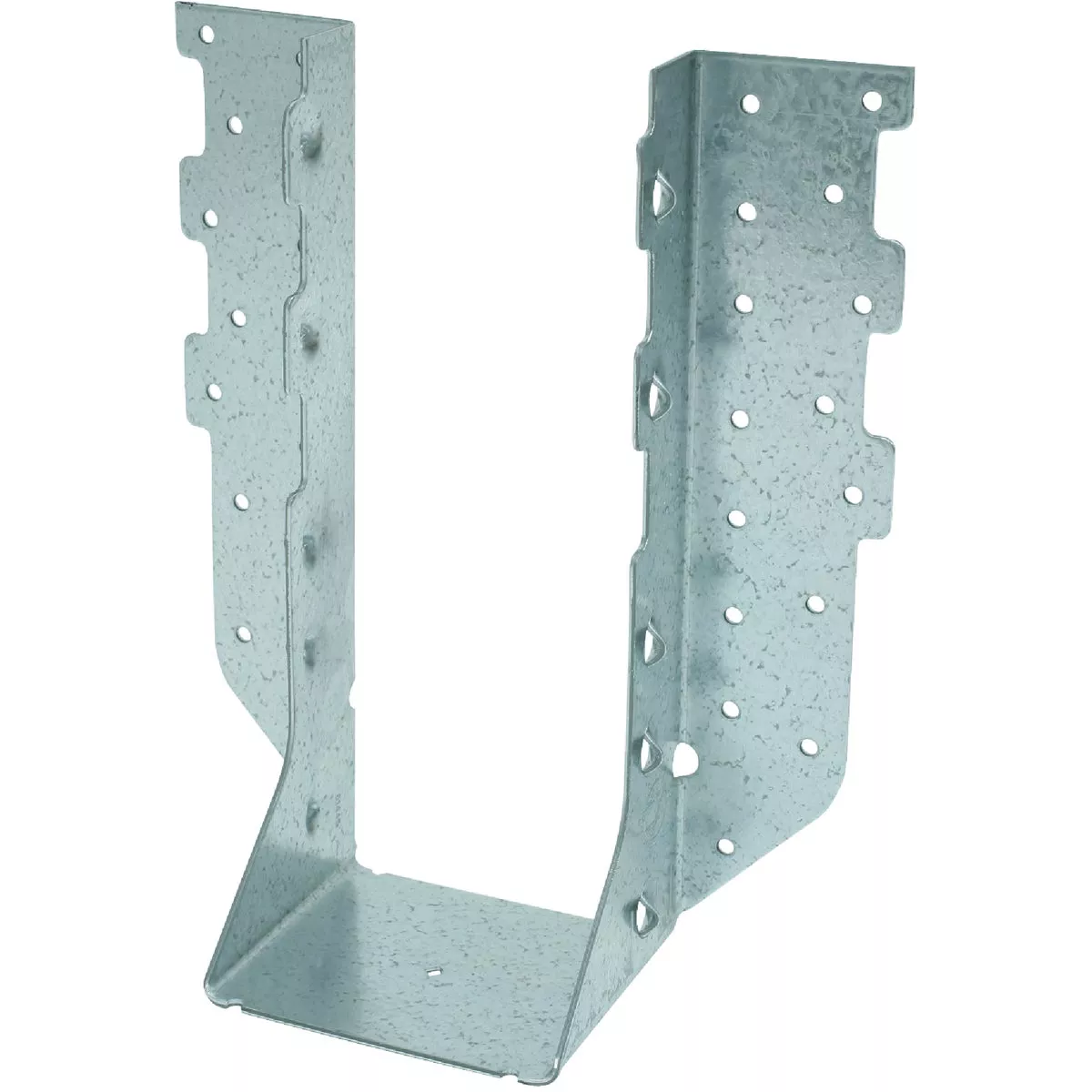

Simpson Strong-Tie Galvanized 4 x 10 Double Shear Face Mount Joist Hanger
Model #HHUS410Item #108286UPC 00044315349607
Tap to view
Product overview
All hangers in this series have double shear nailing - an innovation that distributes the load through 2 points on each joist nail for greater strength. This allows for fewer nails, faster installation, and the use of all common nails for the same connection. Nails must be driven at an angle through the joist or truss into the header to achieve the table loads. Not designed for welded or nailer applications. Galvanized. 14-gauge.
- Can be skewed or sloped
- Joist must be bevel-cut
- 4 In. x 10 In.
Specifications
| Material | Steel |
| Type | Double Shear |
| Finish | Galvanized |
| Size | 3-5/8 In. W x 9 In. H x 3 In. Base |
| Gauge | 14 |
| Install With | 16d Common Nails |
| Joist Size | 4 In. x 10 In. |
| Width (In.) | 3.625 |
| Height (In.) | 9 |
| Base (In.) | 3 |
| Brand | Simpson Strong-Tie |
| UPC | 00044315349607 |
| Product type | Joist Hanger |
