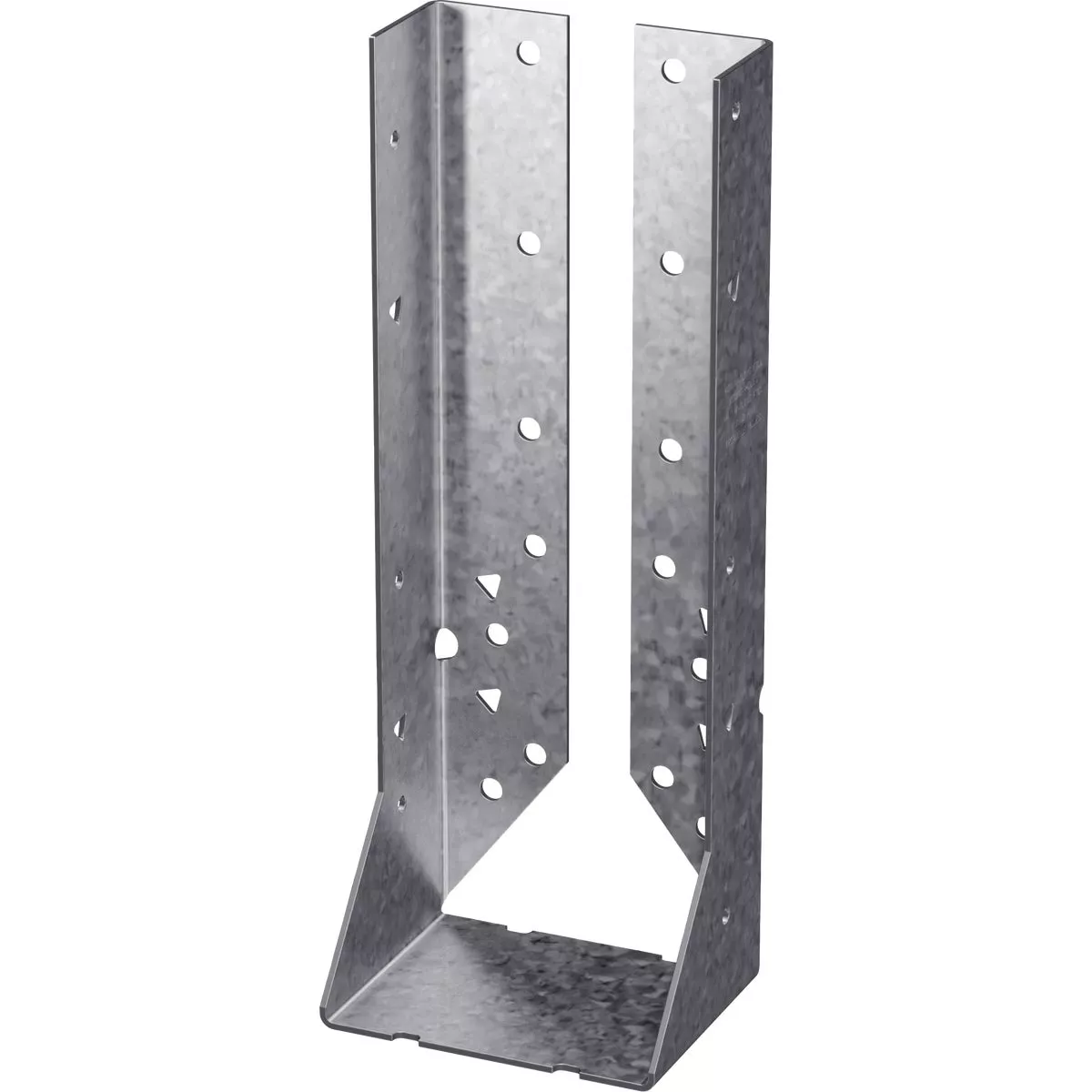

Simpson Strong-Tie Galvanized 2 x 10 Double Shear Concealed Flange Face Mount Joist Hanger

Model #HUC210-2ZItem #108698UPC 00707392114109
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    Joist hangers are designed to provide support underneath the joist, rafter or beam to provide a strong a connection. Simpson Strong-Tie offers a diverse line of hangers to handle almost any application with top flange, concealed flange and field-skewable and slopeable options. HUC heavy-duty face-mount joist hangers are designed for schools and other structures requiring additional strength, longevity and safety factors. Install wood joists to wood, masonry and concrete. Seat width: 3-1/8 In. Nominal joist size: Double 2x10. Made from 14 Ga. steel. ZMAX galvanization offers extra corrosion resistance for exterior and treated-wood applications.
    • Provides a heavy-duty connection between joist and header
    • The concealed-flange design provides cleaner lines for visible applications such as second-story decks and patio covers
    • Install wood joists to wood, masonry and concrete
    • Seat width: 3-1/8 in.
    • Nominal joist Size: Double 2x10
    • Made from 14-gauge steel ZMAX
    MaterialSteel
    TypeFace Mount
    FinishGalvanized
    Size2.5 In. x 8.81 In. x 5.67 In.
    Gauge14
    Joist Size2 In. x 10 In.
    Width (In.)2.5
    Height (In.)8.81
    Base (In.)5.67
    BrandSimpson Strong-Tie
    UPC00707392114109
    Product typeJoist Hanger
