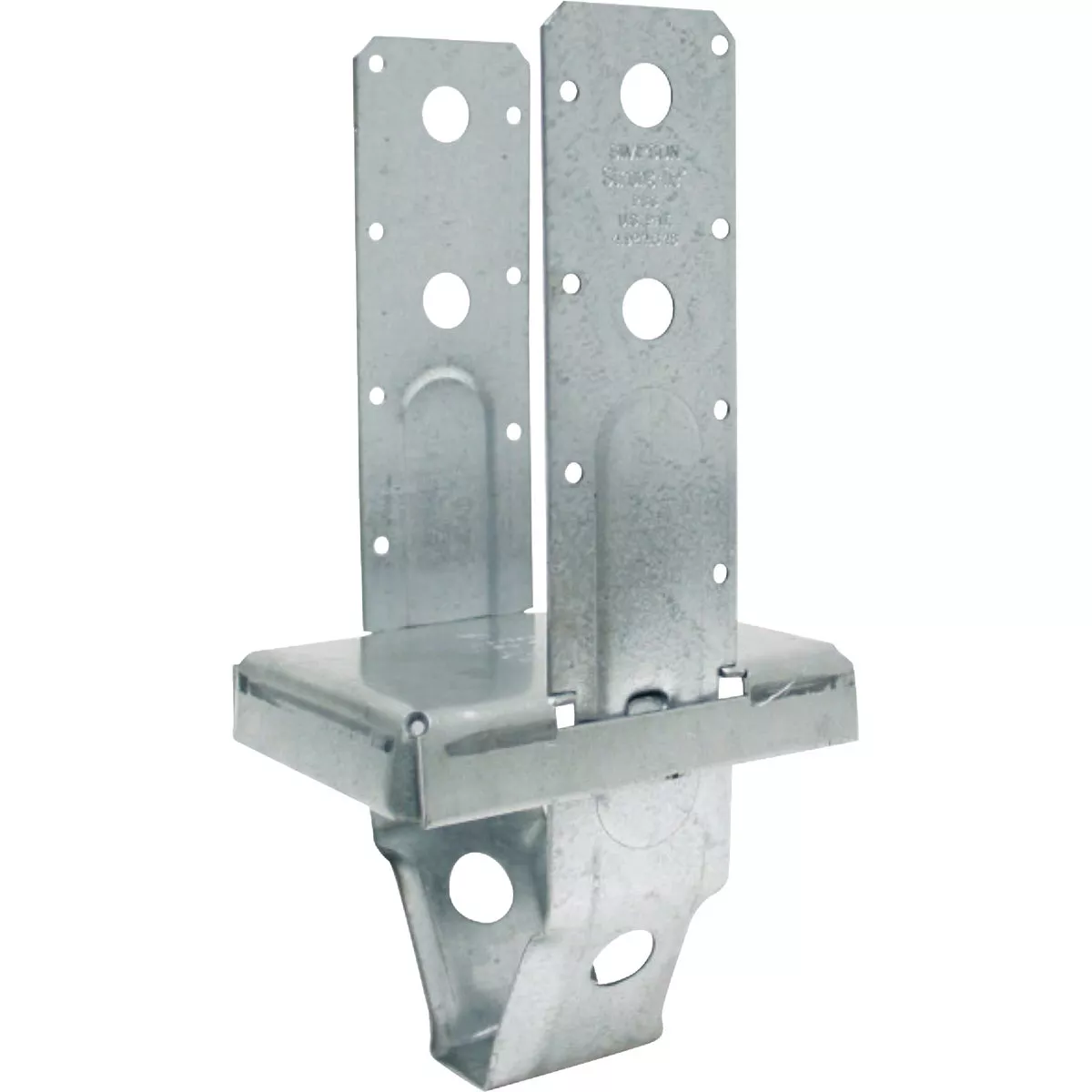

PBS Hot-Dip Galvanized Standoff Post Base for 4x6
Model #PBS46HDG UPC 00707392023364
Item #110694
Tap to view
Product overview
This Post Base is designed to provide a secure connection between a post (or column) and concrete in projects including decks, patio covers and other top-supported structures. These post bases are elevated 1 In. to avoid contact of the wood post with standing water to help prevent rot at the post end. Galvanized finish provides extra corrosion protection.
- Provides a 1 In. standoff between post and concrete that meets code requirements
- Embeds in wet concrete before it has cured and is designed to install flush with the concrete surface
- Embossment in the vertical straps provides increased strength
- Optional fastening with either nails or bolts
- Galvanized (G90) for extra corrosion resistance
- No Fastener Included
- Install with (14) 0.162 In. x 3-1/2 In. nails or (2) 1/2 In. bolts
Specifications
| Material | Steel |
| Type | Standoff |
| Finish | Galvanized |
| Size | 4x6 |
| Gauge | 12 Ga. Base, 14 Ga. Strap |
| Brand | Simpson Strong-Tie |
| UPC | 00707392023364 |
| Product type | Post Base |
