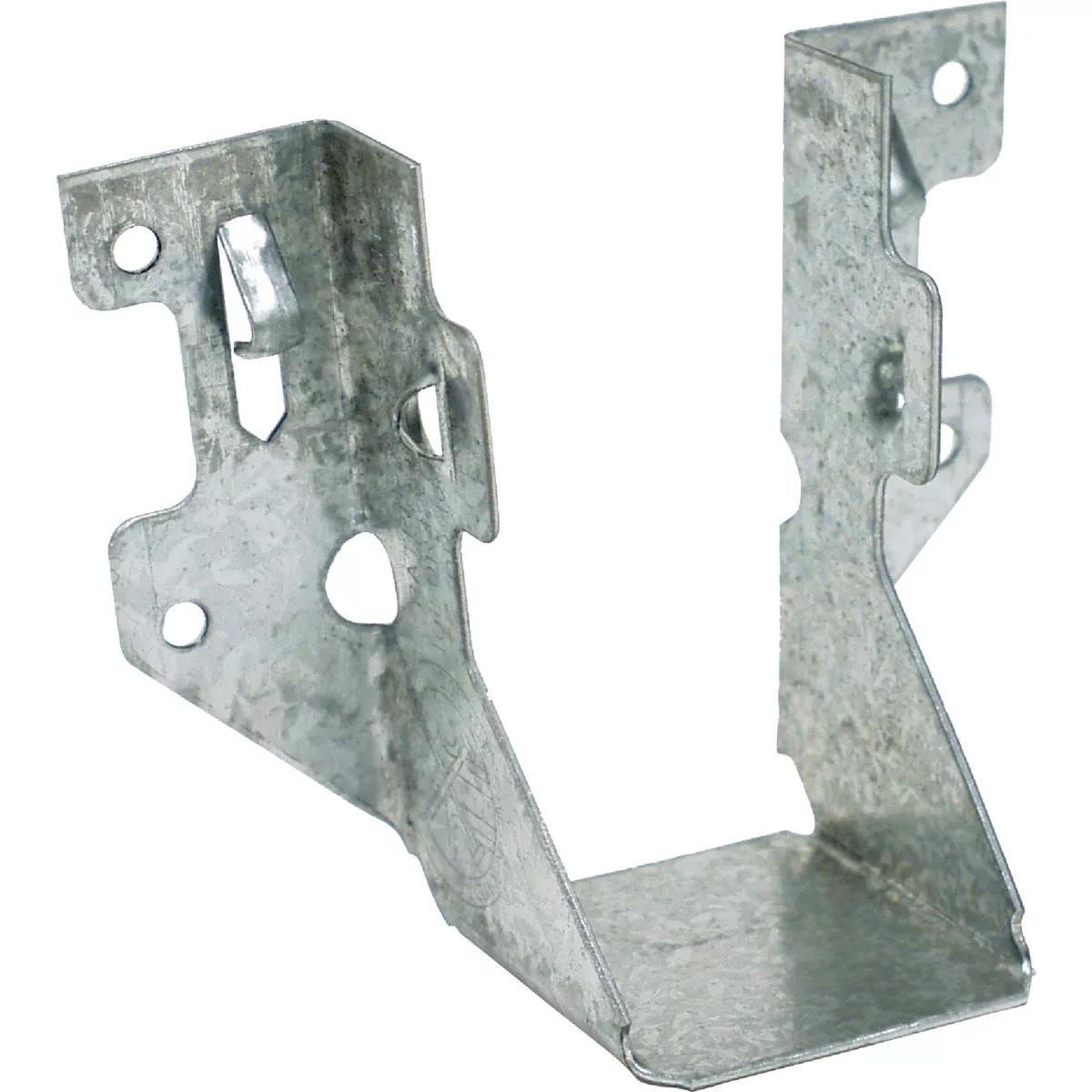

Simpson Strong-Tie ZMAX 2 x 4 Face Mount Joist Hanger
Model #LUS24ZItem #121959UPC 00044315804304
Tap to view
Product overview
The LUS is an easy-to-install, economical hanger designed for common lumber sizes. This widely used hanger features double-shear nailing that distributes the load through two points on each joist nail for greater strength. This allows for fewer nails, faster installation and the use of all common nails for the same connection.
- Features speed prongs used to temporarily position and secure the connector for easier and faster installation
- LUS-series hangers are tested, load rated and code compliant
Specifications
| Material | Steel |
| Type | Double Shear |
| Finish | ZMAX |
| Gauge | 18 |
| Install With | 4-10d Nails on header, 2-10d Nails Joist |
| Joist Size | 2 In. x 4 In. |
| Width (In.) | 1.5625 |
| Height (In.) | 3.125 |
| Base (In.) | 1.75 |
| Brand | Simpson Strong-Tie |
| UPC | 00044315804304 |
| Product type | Joist Hanger |
