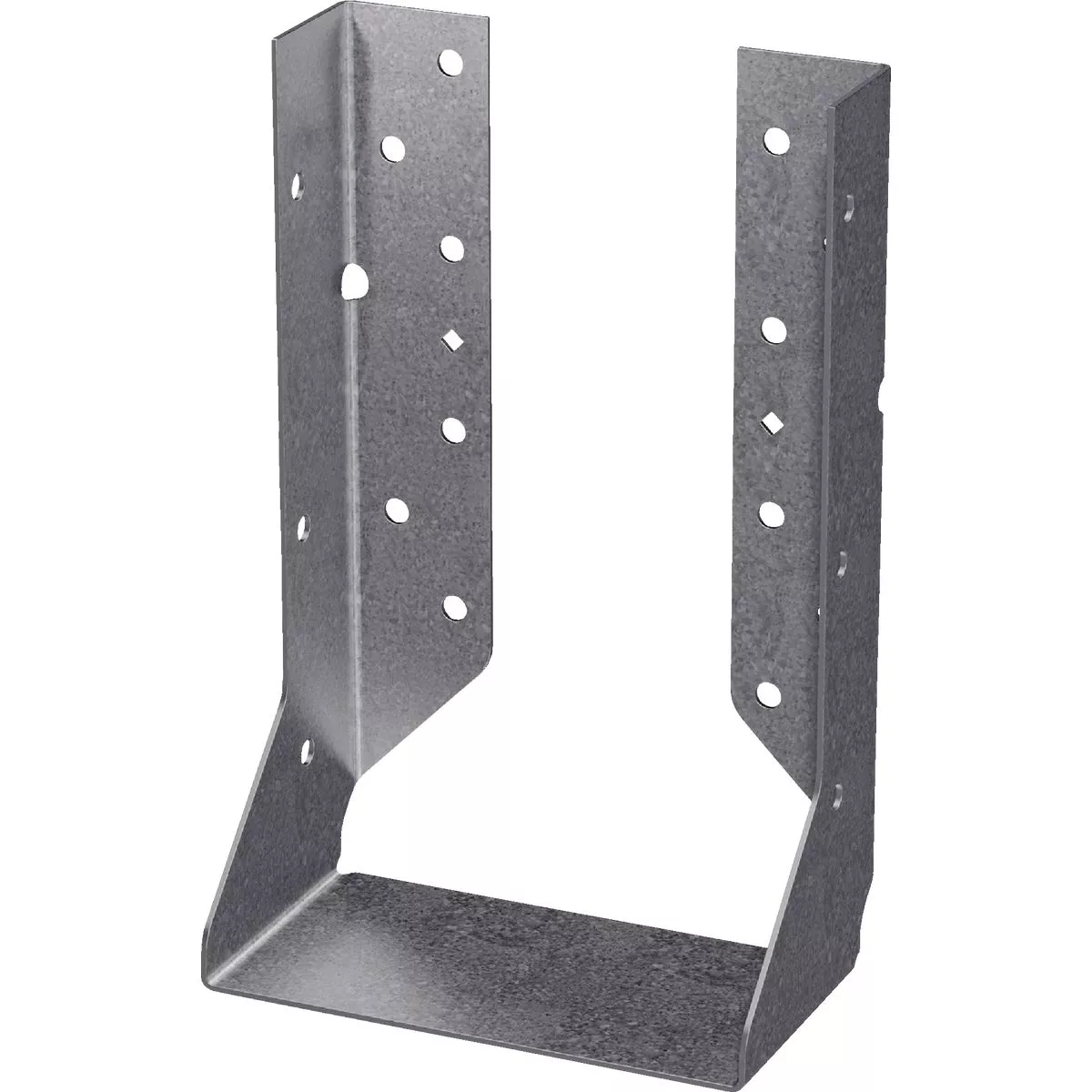

Simpson Strong-Tie Galvanized 6 x 10 Face Mount Concealed Joist Hanger with Screws
Model #HUCQ610-SDSItem #128203UPC 00707392814306
Tap to view
Product overview
The HUCQ is designed for structures requiring additional strength and safety factors. These face-mount joist hangers have concealed header flanges and can be installed close to the end of the supporting beam. These heavy-duty hangers install with Simpson Strong-Tie Strong-Drive SDS Heavy-Duty Connector screws for high capacity with no predrilling for ease of installation. HUCQ Heavy Face-Mount Concealed-Flange Joist Hanger for 6x10 w/ Screws (Pack of 15).
- Concealed flanges provide cleaner lines for exposed conditions
- HUCQ-series hangers are tested, load rated and code compliant
- Strong-Drive SDS Heavy-Duty Connector screws are included
- Install wood joists to wood, masonry and concrete
- Seat width: 5-1/2-in
- Nominal joist size: 6x10
- Made from 14-Gauge steel
- Galvanized (G90) for extra corrosion resistance
- Install with (12) 1/4 in. x 2-1/2 in. SDS screws in the header and (6) 1/4 in. x 2-1/2 in. SDS screws in the joist (screws included)
Specifications
| Material | Steel |
| Finish | Galvanized |
| Gauge | 14 |
| Joist Size | 6 In. x 10 In. |
| Brand | Simpson Strong-Tie |
| UPC | 00707392814306 |
| Product type | Joist Hanger |
