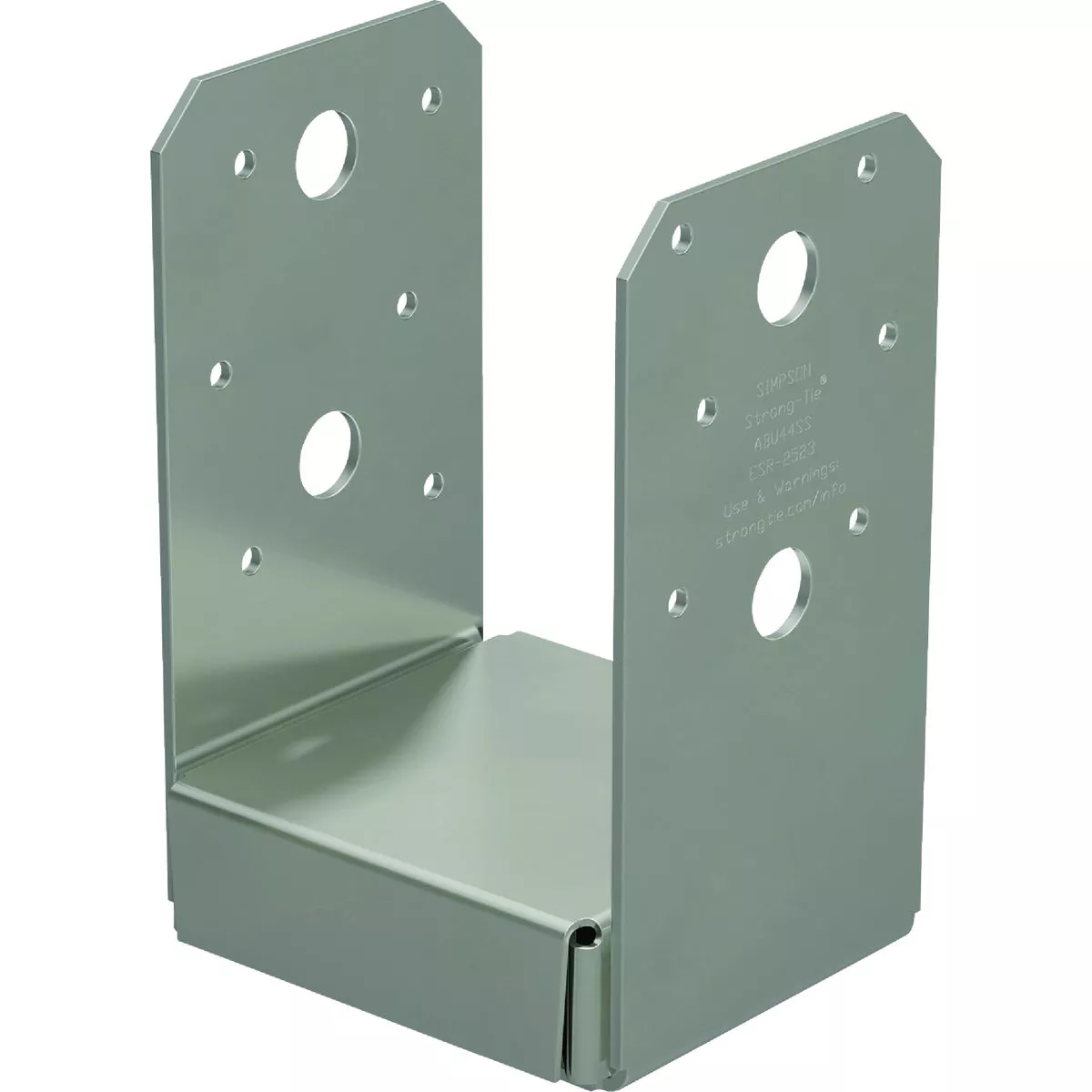

Simpson Strong-Tie 4X4 Stainless Steel Adjustable Post Base
Model #ABU44S UPC 00707392440307
Item #128920
Tap to view
Product overview
The Simpson Strong-Tie ABU is designed to attach wooden posts to existing concrete in high capacity applications. The built-in 1 In. standoff of this adjustable post base helps to prevent rot at the end of the post. The ABU has a slotted anchor hole in the base for adjustability and attaches to the post with nails, Strong-Drive SD Connector screws or bolts. This versatile post base makes a cost-effective option for securing a post to the foundation, with a design built for maximum uplift performance.
- The slot in the base enables flexibility around the anchor bolt, making precise post placement easier
- 1 In. standoff design meets code requirements for structural posts installed in basements or exposed to weather or water splash
- Increased uplift loads for earthquake or wind loading
- Nominal post size: 4x4
- Steel gauge: Base 16, strap 12
- Stainless steel for high/severe corrosion resistance
Specifications
| Material | Steel |
| Finish | Stainless Steel |
| Size | 4x4 |
| Gauge | Base: 16 ; Strap: 12 |
| Install With | (3) 1/2 In. nails; 1/2 In. bolts |
| Brand | Simpson Strong-Tie |
| UPC | 00707392440307 |
| Product type | Post Base |
