Simpson Strong-Tie 2.89 In. W x 14.8 In. H x 3.32 In. B 14 ga Galvanized Predeflected Holdown
Model #HDUE7-SDS3 UPC 00707392030256
Item #132240
Tap to view
Product overview

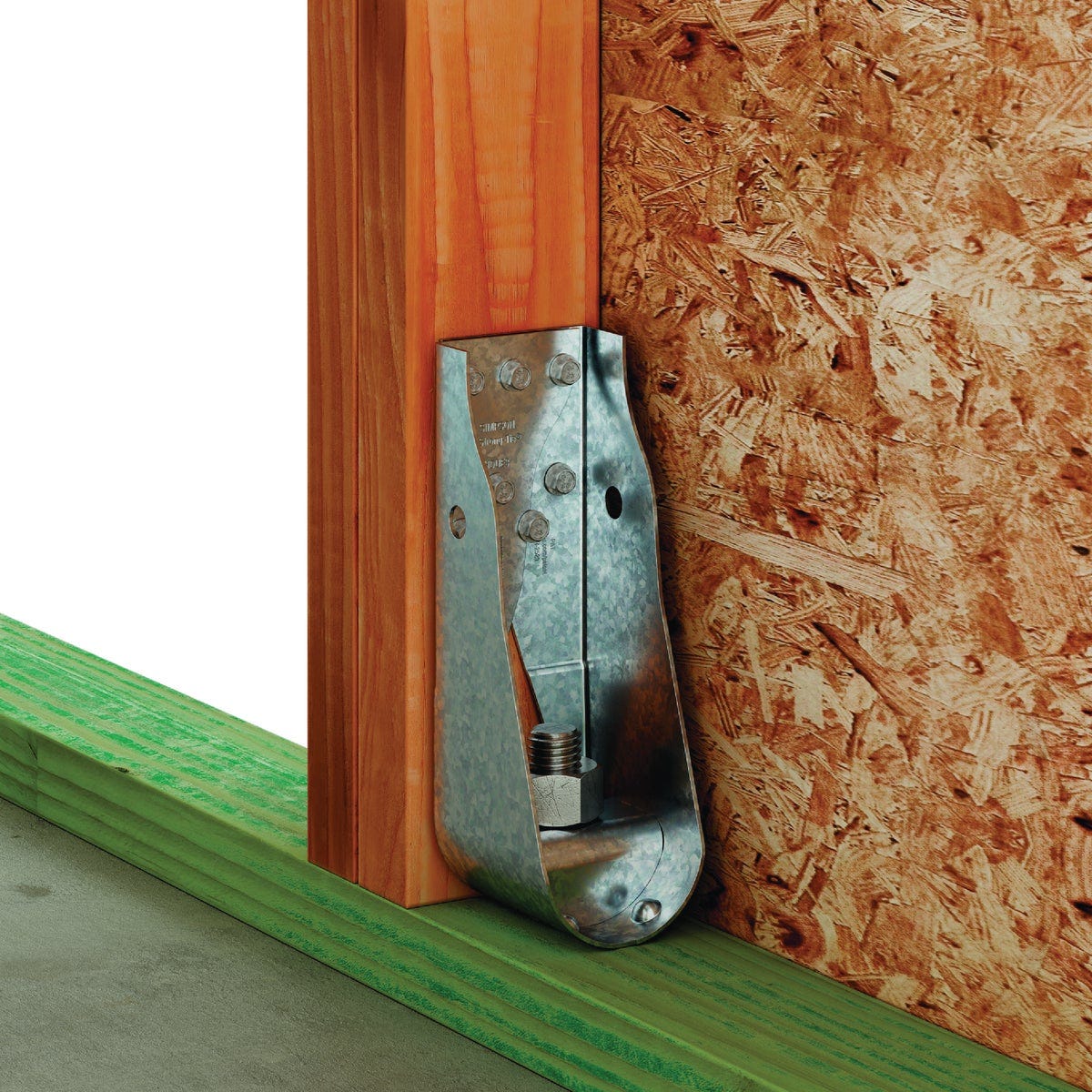

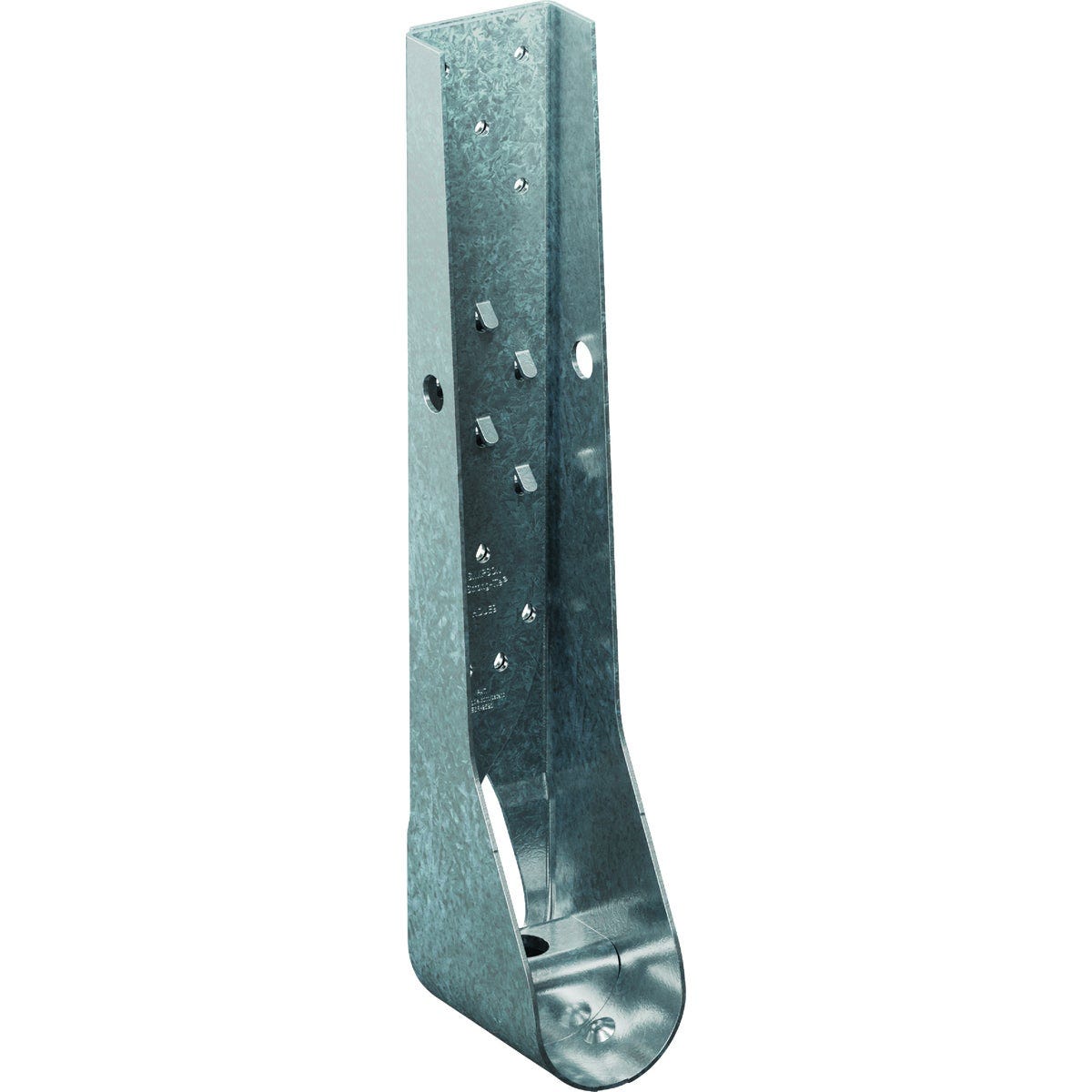

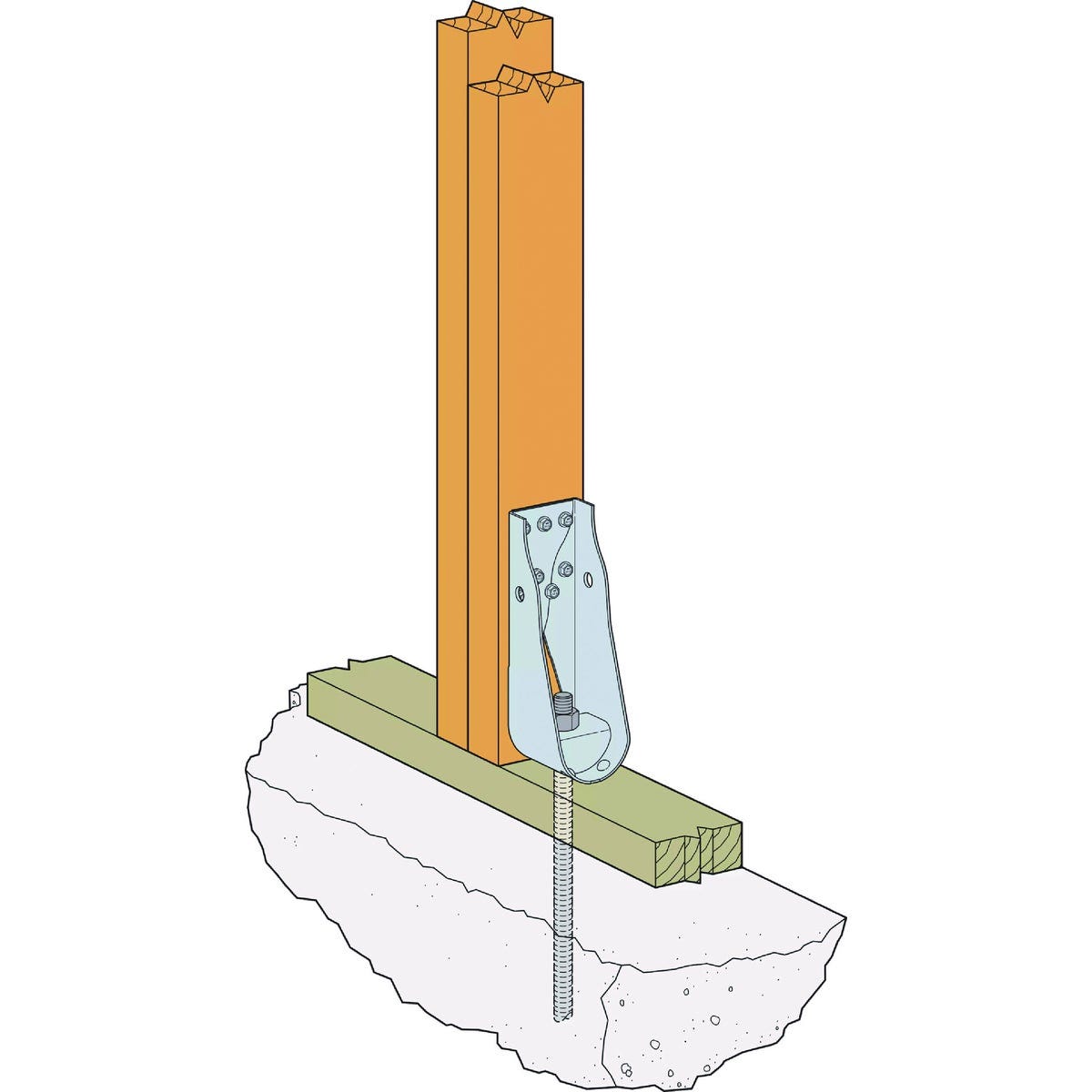

The patent-pending HDUE holdown is designed to meet the increased design demands of today's residential wood structures, including three-story homes with more windows and limited shearwall space. Offering higher load capacities than previous models, the HDUE serves as an easy one-to-one replacement for our industry-leading HDU. This holdown provides exceptional overturning resistance for shearwalls, braced wall panels and other lateral-force-resisting applications in wood construction.
- Predeflected seat reduces deflection under load
- Overlapping back plate increases fastener strength and shear values, helping prevent post splitting
- Optimized screw patterns reduce splitting at the end of the post and maximize individual fastener capacity
- Extruded seat adds a greater cross-sectional steel section for added strength
- Teardrop holes allow higher and more even distribution of load
Specifications
| Material | Stainless Steel |
| Finish | Galvanized |
| Size | 3.32 In. W x 14.8 In. H x 2.89 In. B |
| Gauge | 14 |
| Install With | 5/8 In. Anchor and (13) 3 In. Screws |
| Brand | Simpson Strong-Tie |
| UPC | 00707392030256 |
| Product type | Holdown |
