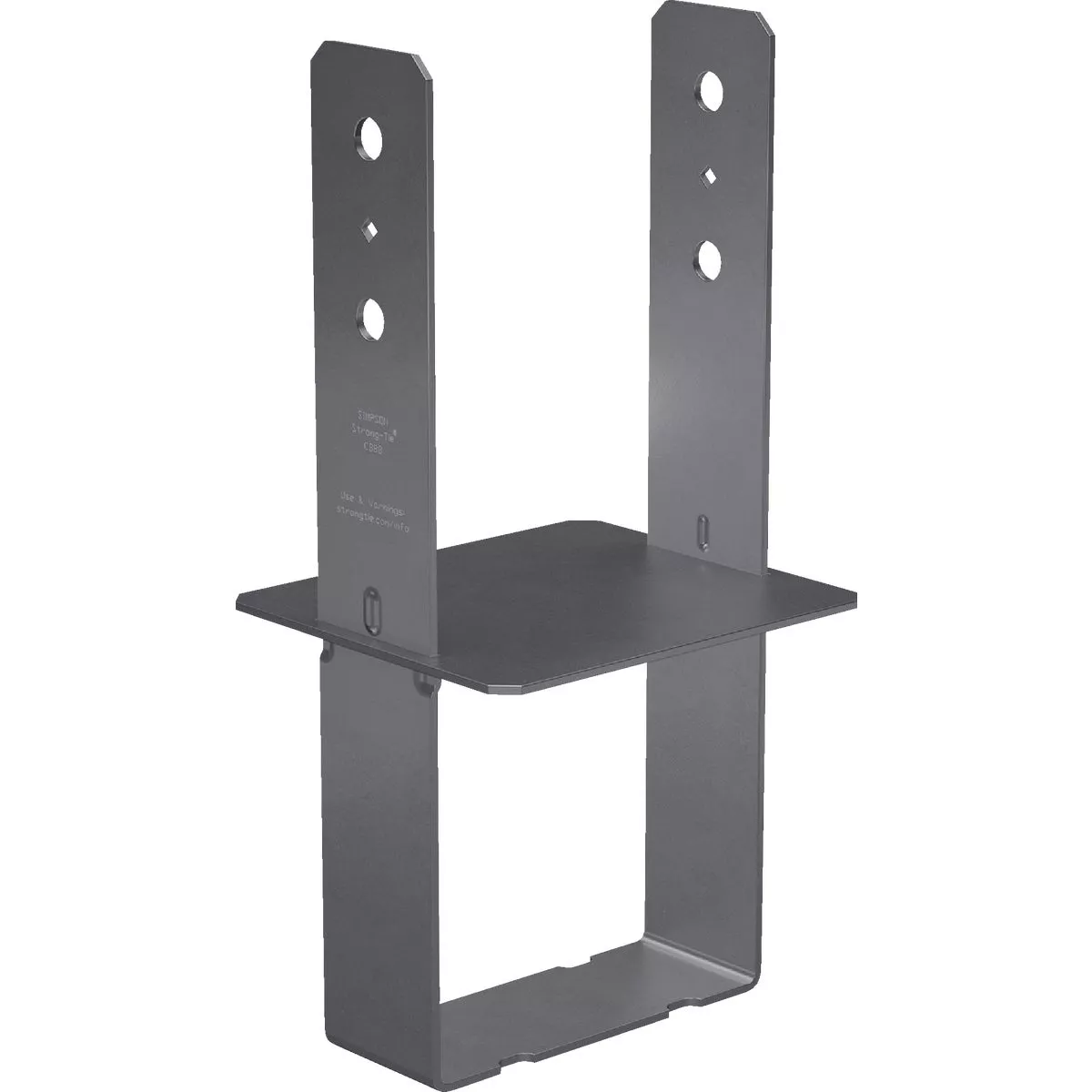

Simpson Strong-Tie 8 In. x 8 In. 7 ga Column Base

Model #CB88Item #137662UPC 00044315155208
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

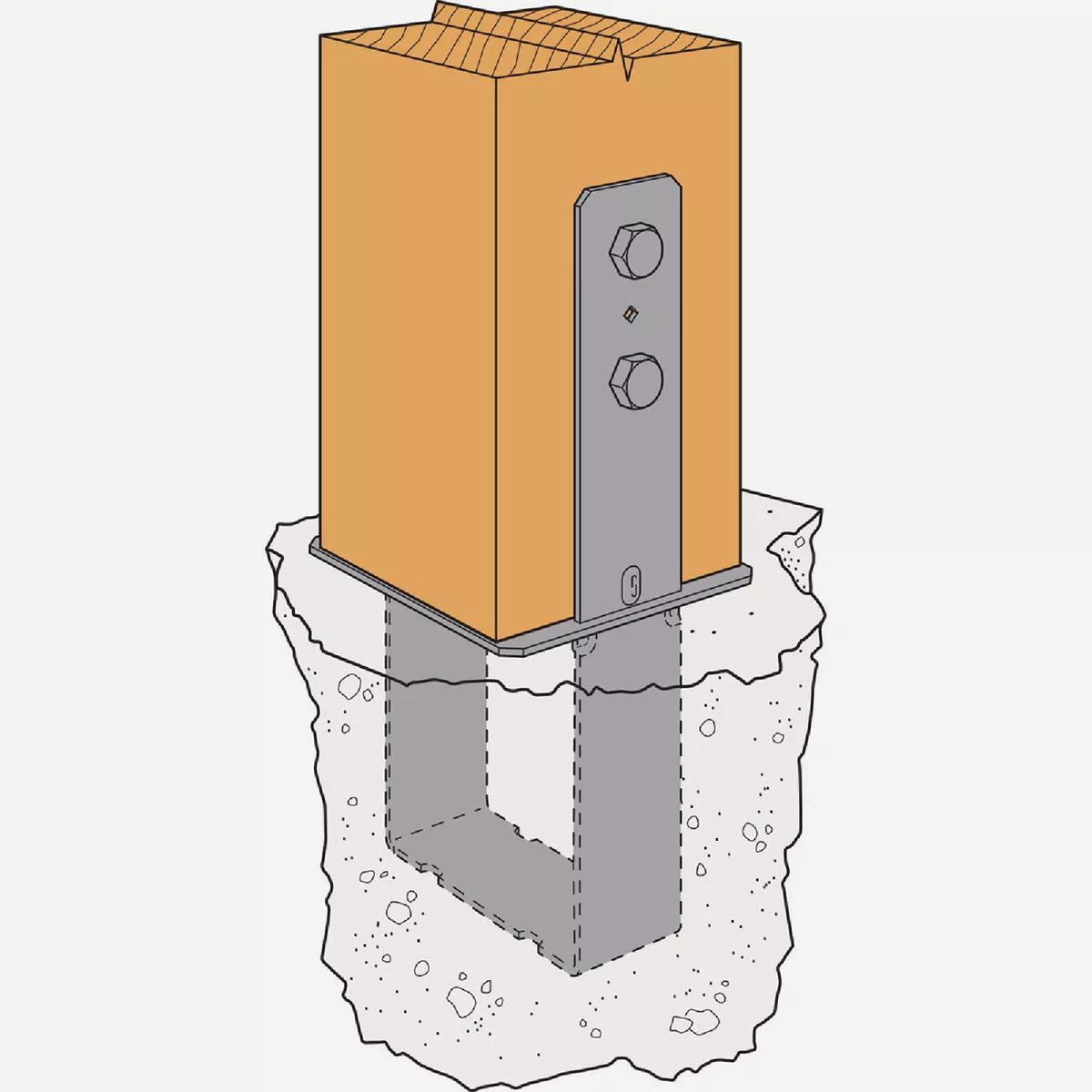

    The column base is designed to connect posts to concrete foundations for a wide range of lumber, glulam, and engineered wood product sizes. This column base is either cast-in-place or wet set into the concrete where the bottom of the base plate sits flush with the concrete for full post bearing. The column base is ideal for columns that require high structural values and rugged performance.
    • Increased uplift resistance for wind or seismic loading
    • Helps connect posts to concrete
    • Nominal column size: 8x8
    • Accommodates glulam and solid sawn members
    • Steel gauge: strap 3 ga., base 7 ga.
    • Use with 4x4 to 12x12 members
    • Simpson Strong-Tie gray paint finish
    • bolt hole locations meet code-required spacing for optimal capacity
    • Paint
    Width7-1/2 In.
    MaterialSteel
    FinishPaint
    Size8 In. x 8 In.
    Gauge7
    Dimensions7.88 In. x 17.75 In. x 7.5 In.
    Post Size8 In. x 8 In.
    Depth7-1/2 In.
    BrandSimpson Strong-Tie
    UPC00044315155208
    Product typeColumn Base
