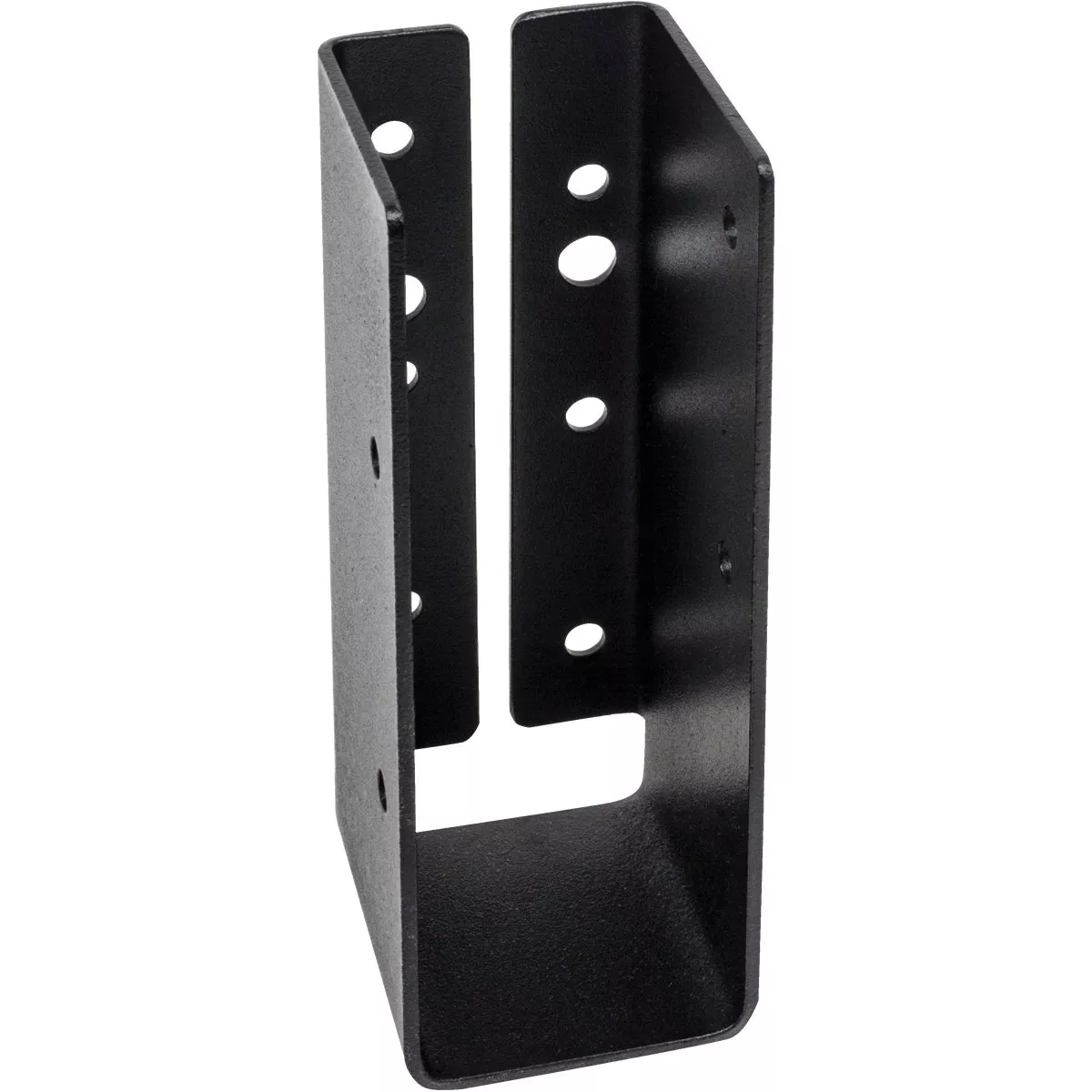

Simpson Strong-Tie ZMAX 2 x 6 Concealed Flange Face Mount Joist Hanger
Model #APLH26Item #140590UPC 00707392994435
Tap to view
Product overview
Black powder-coated light concealed flange hanger connects 2x joists to beams. Features straight edges and provides a cleaner looking installation for joist connections. 14-Ga. steel. ZMAX galvanization offers extra corrosion resistance for exterior and treated wood applications. Complements the Outdoor Accents Mission Collection. Installs with the Outdoor Accents SD10112DBB connector screw (sold separately).
- Connects 2x joists to beams
- Straight edges
- 2 In. x 6 In.
- ZMAX
Specifications
| Material | Steel |
| Type | Concealed Flange |
| Finish | ZMAX |
| Gauge | 14 |
| Install With | (10) #10 x 1-1/2 In. Screws |
| Joist Size | 2 In. x 6 In. |
| Width (In.) | 1.5625 |
| Height (In.) | 5.125 |
| Base (In.) | 1.875 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392994435 |
| Product type | Joist Hanger |
