Simpson Strong-Tie 6 In. x 6 In. 12 ga ZMAX Standoff Column Base with SDS Screws
Model #CBSTQ66Z-SDS2Item #146112UPC 00707392032779
Tap to view
Product overview

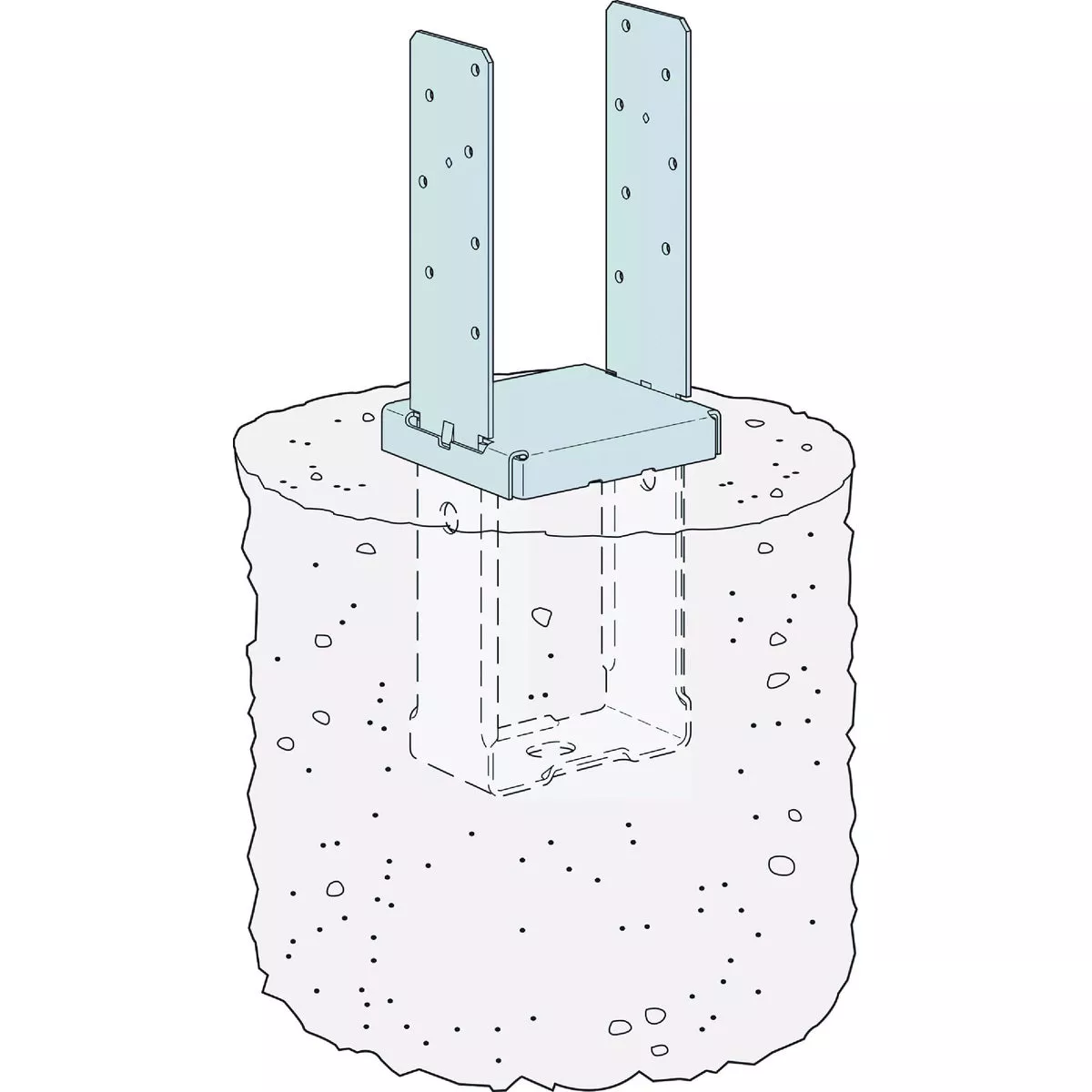

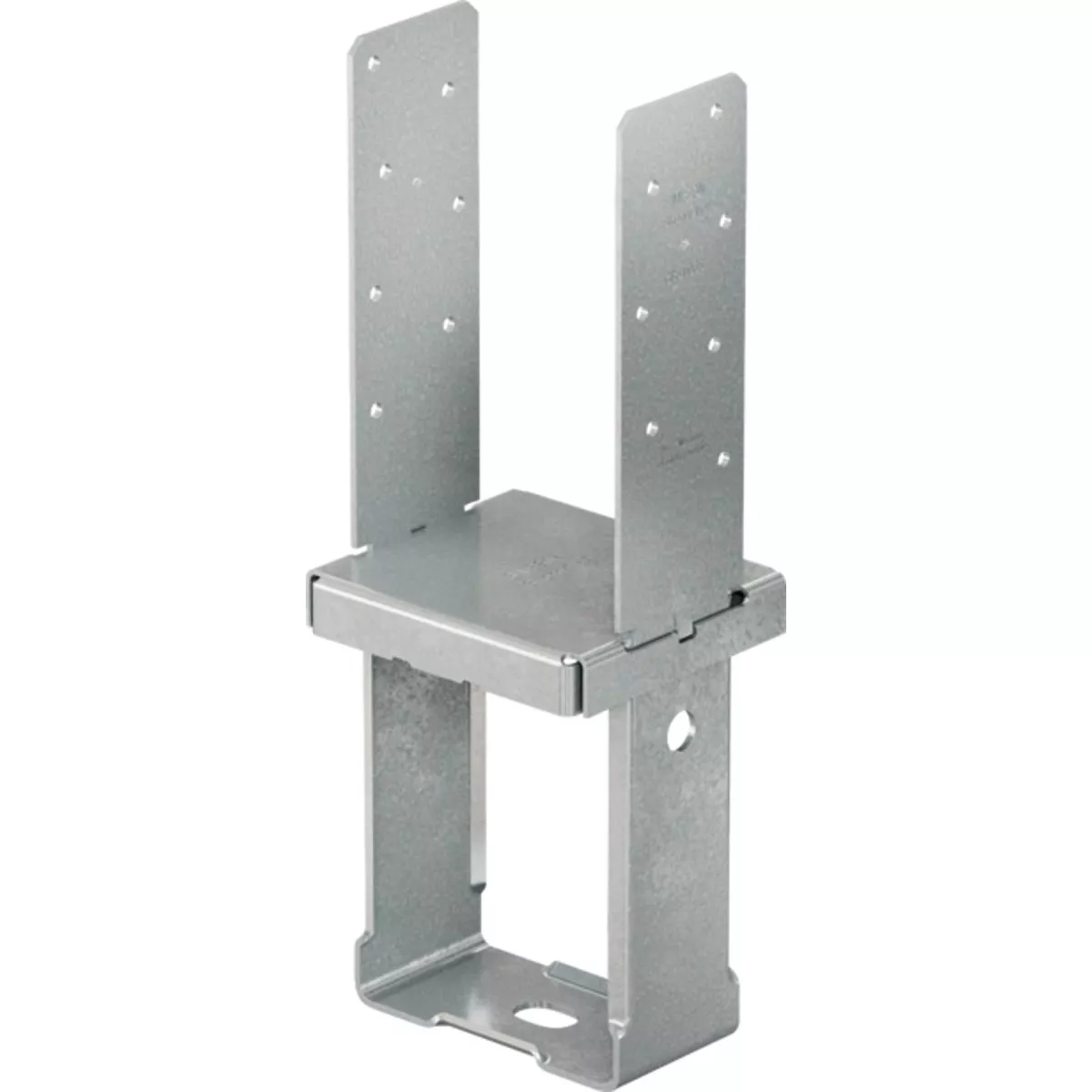

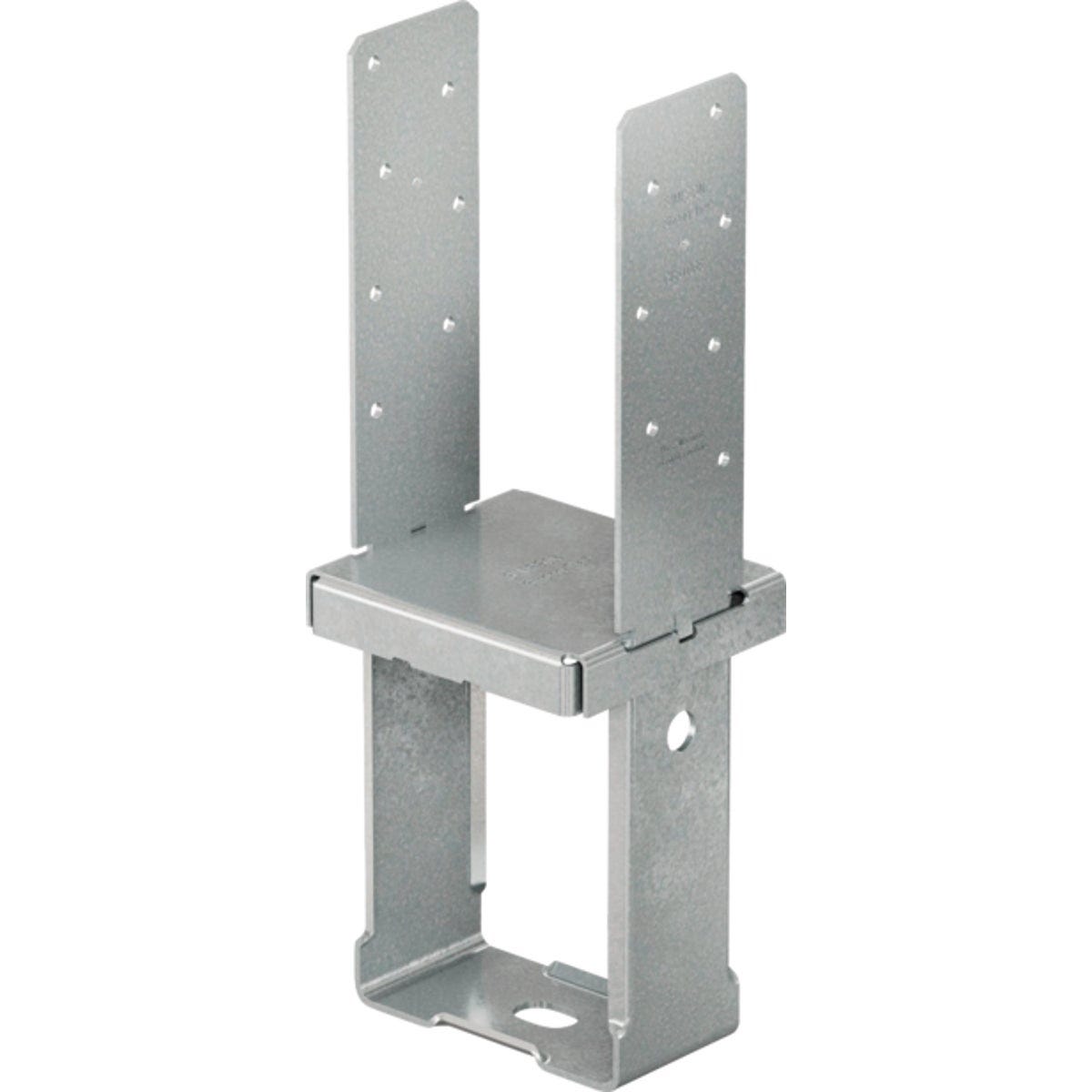

The CBSTQ cast-in-place column base is engineered to support wood posts in residential and light commercial construction. With higher download capacities than previous models, the CBSTQ offers a reliable solution for projects requiring a secure connection between wood posts and concrete. It incorporates a 1" standoff to comply with building codes and reduce moisture-related post-end rot. Equipped with S-shaped bearing tabs, the CBSTQ provides increased load capacity and enhanced structural stability.
- Code-required 1 in. standoff design that elevates the post above the concrete, protecting it from moisture and resisting rot
- S-shaped bearing tabs that provide increased strength, allowing for higher downloads

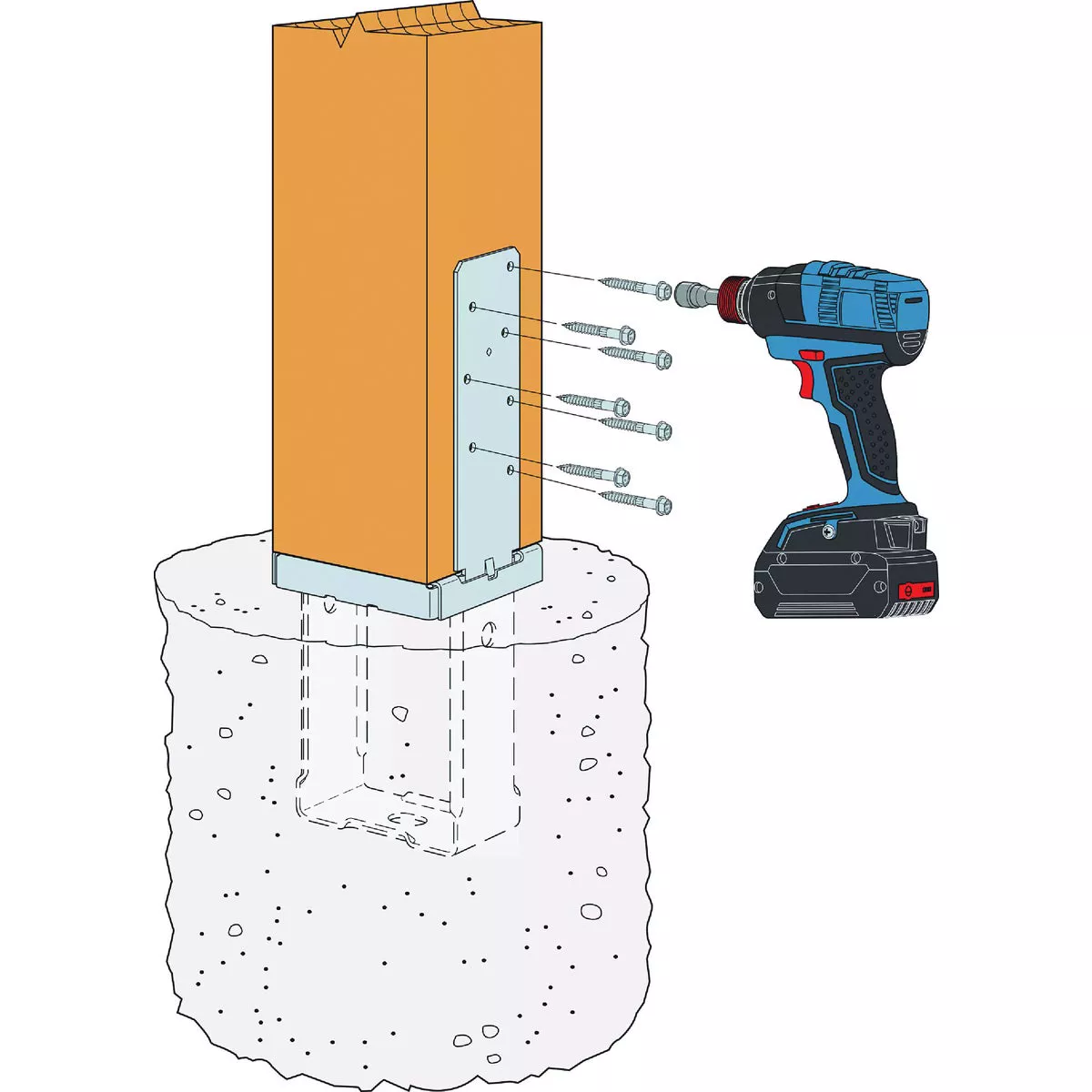

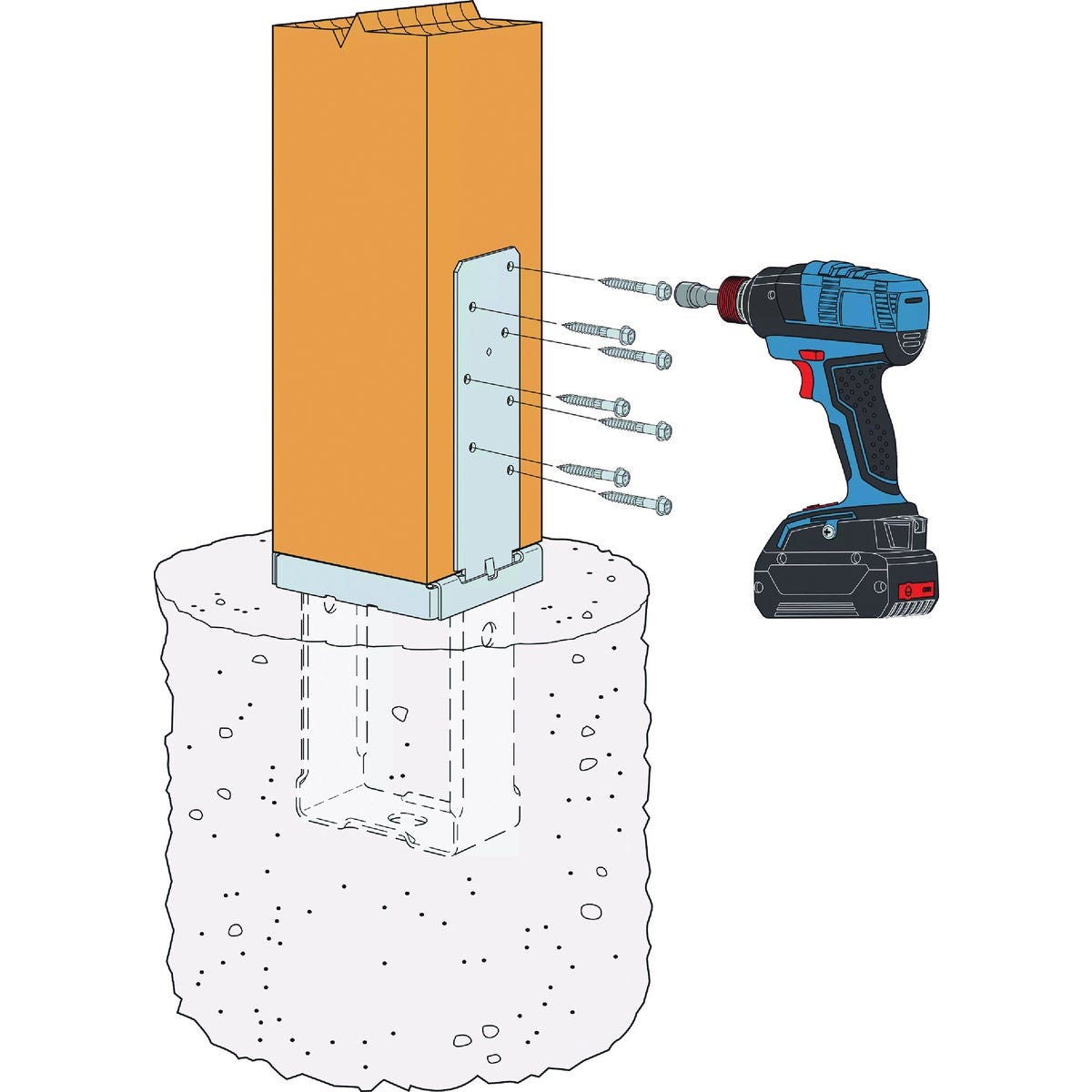

- Strong-Drive SDS Heavy-Duty Connector screws (included) provide a greater wood net section area than bolts
Specifications
| Width | 16.66 |
| Material | Stainless Steel |
| Finish | ZMAX |
| Gauge | Base: 12, Strap: 10 |
| Post Size | 6x6 |
| Depth | 6.03 |
| Brand | Simpson Strong-Tie |
| UPC | 00707392032779 |
| Product type | Column Base |
