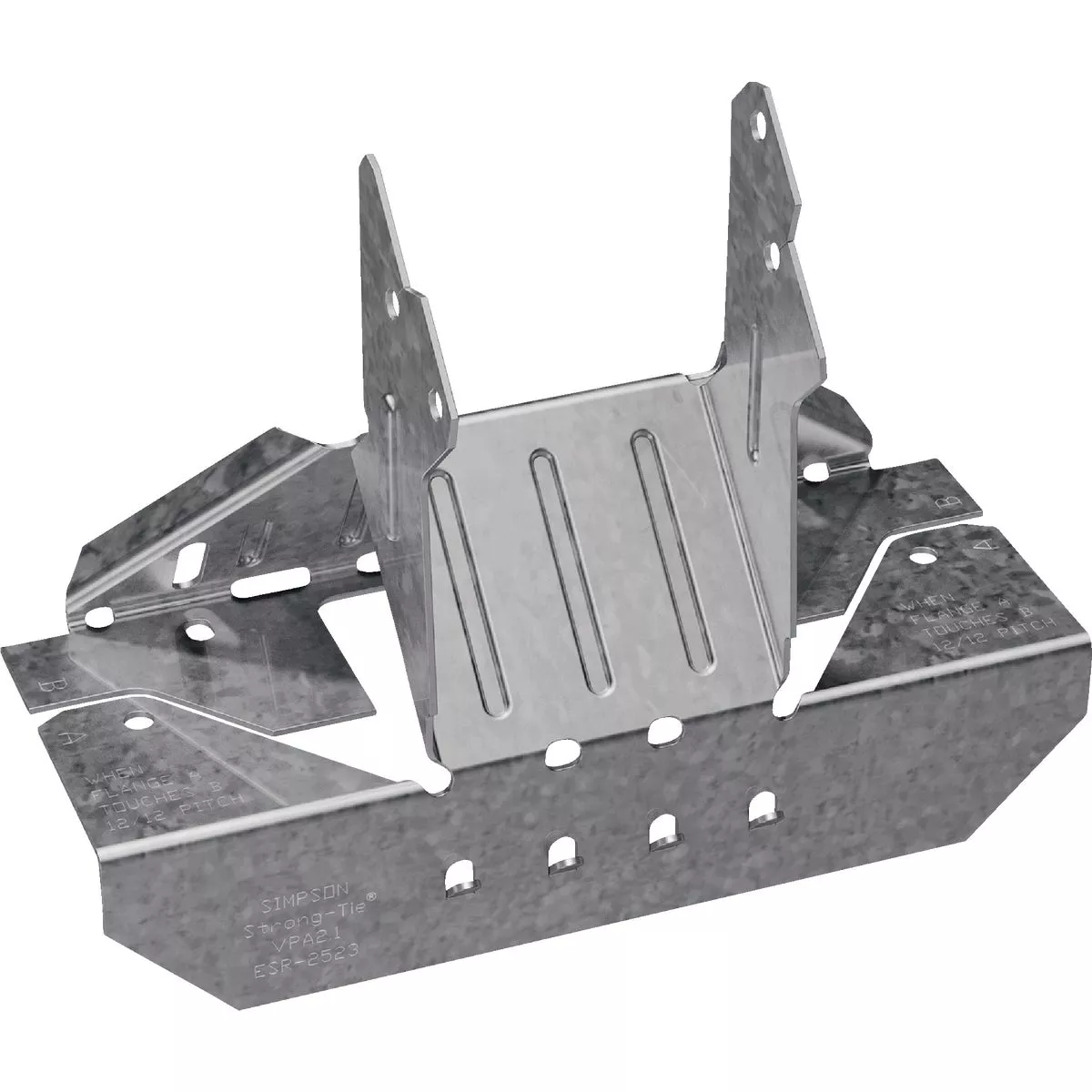

VPA Galvanized Variable-Pitch Connector for 1-1/2 in. Joist
Model #VPA2 UPC 00044315134609
Item #146672
Tap to view
Product overview

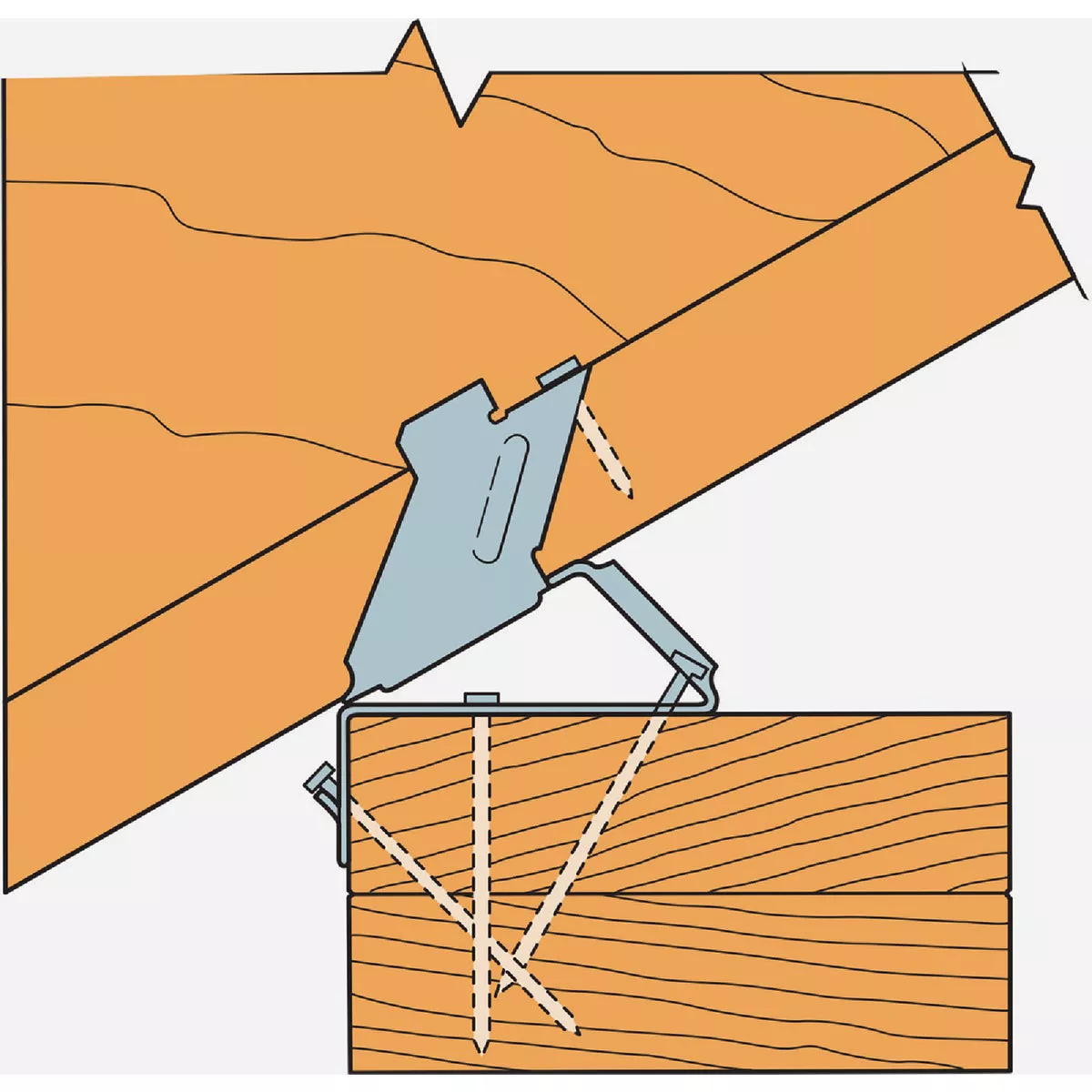

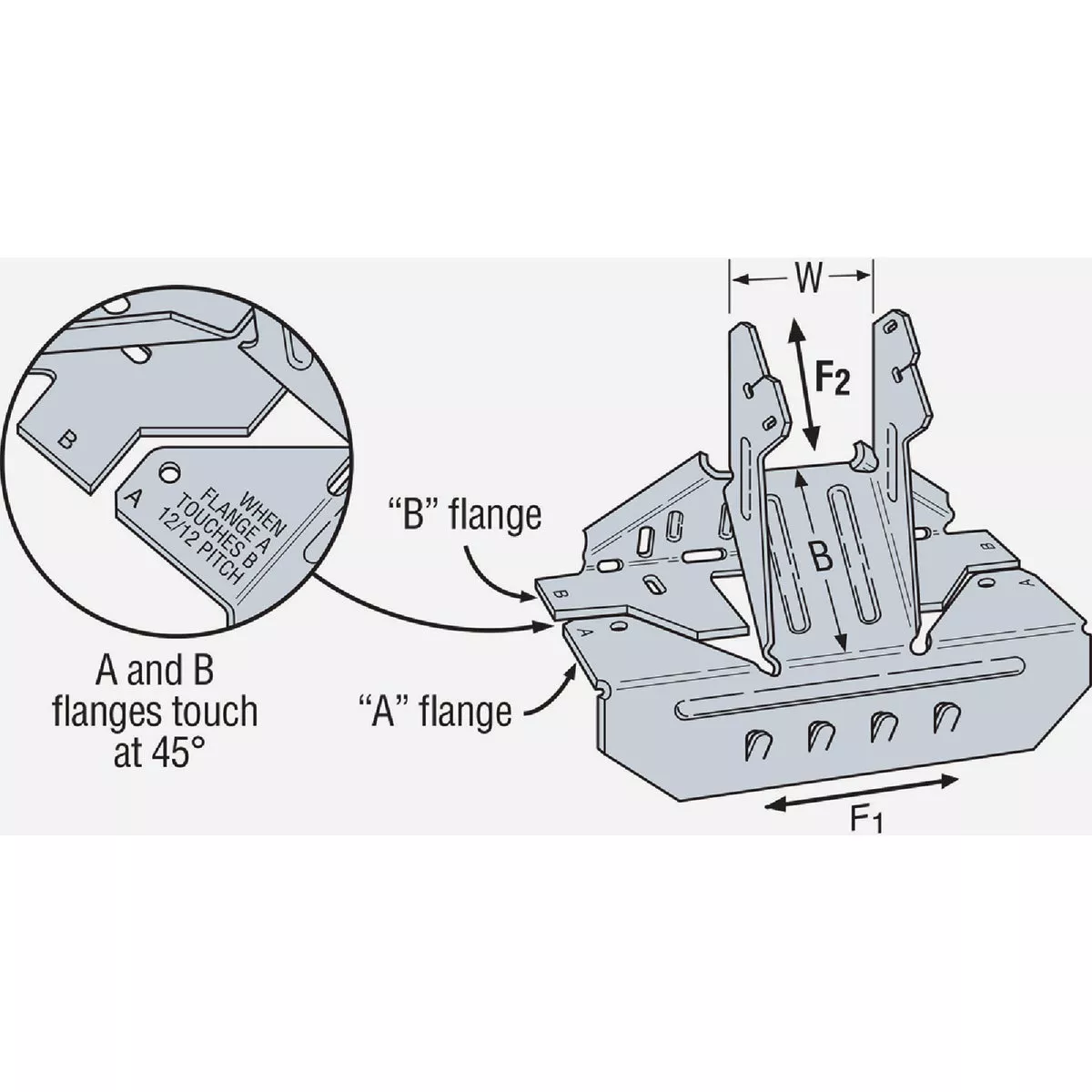

The VPA may be sloped in the field, offering a versatile solution for attaching rafters to the top plate. It will adjust to accommodate slopes between 3:12 and 12:12, making it a complement to the versatile LSSU. This connector eliminates the need for notched rafters, beveled top plates and toe nailing.
- Joist width: 1-1/2 in.
- Width: 1-9/16 in.
- Made from 18-gauge steel
- Galvanized (G90) for extra corrosion resistance
Specifications
| Material | Steel |
| Finish | Galvanized |
| Gauge | 18 ga |
| Joist Size | 1.5 In. |
| Brand | Simpson Strong-Tie |
| UPC | 00044315134609 |
| Product type | Joist Connector |
