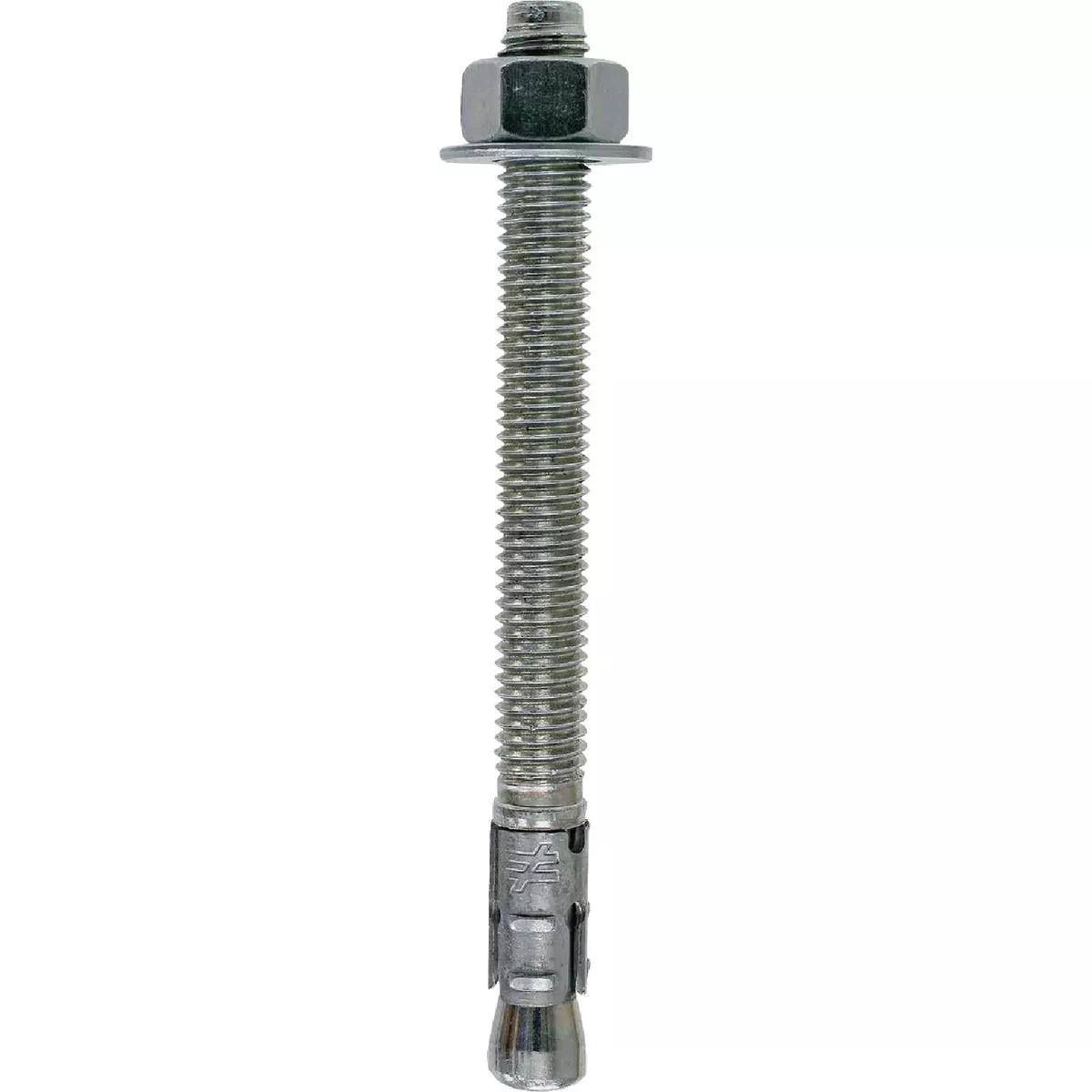

Simpson Strong-Tie Strong-Bolt 2-5/8 In. x 8-1/2 In. Wedge Anchor
Model #STB2-62812P1Item #231188UPC 00707392307655
Tap to view
Product overview
Code listed for cracked and uncracked concrete, and masonry applications, the Strong-Bolt 2 wedge-type expansion anchor is an optimal choice for high-performance even in seismic and high-wind conditions. Dual undercutting embossments on each clip segment enable secondary expansion should a crack form and intersect the anchor location; this feature significantly increases the ability of Strong-Bolt 2 to carry load if the hole expands.
- Chamfered top designed to prevent mushrooming during installation
- Qualified for static and seismic loading conditions (seismic design categories A through F)
- Suitable for horizontal, vertical and overhead applications
- Tested per ACI355.2 and AC193
- Made from carbon steel
Specifications
| Length | 8-1/2 |
| Material | Carbon Steel |
| Size | 5/8 x 8-1/2 |
| Diameter | 5/8 |
| Head Type | Chamfered |
| Brand | Simpson Strong-Tie |
| UPC | 00707392307655 |
| Product type | Concrete & Masonry Anchors |
