Prime-Line Plain Back Steel Tandem Roller Assembly
Model #D 1791Item #234145UPC 00049793017918
Tap to view
Product overview

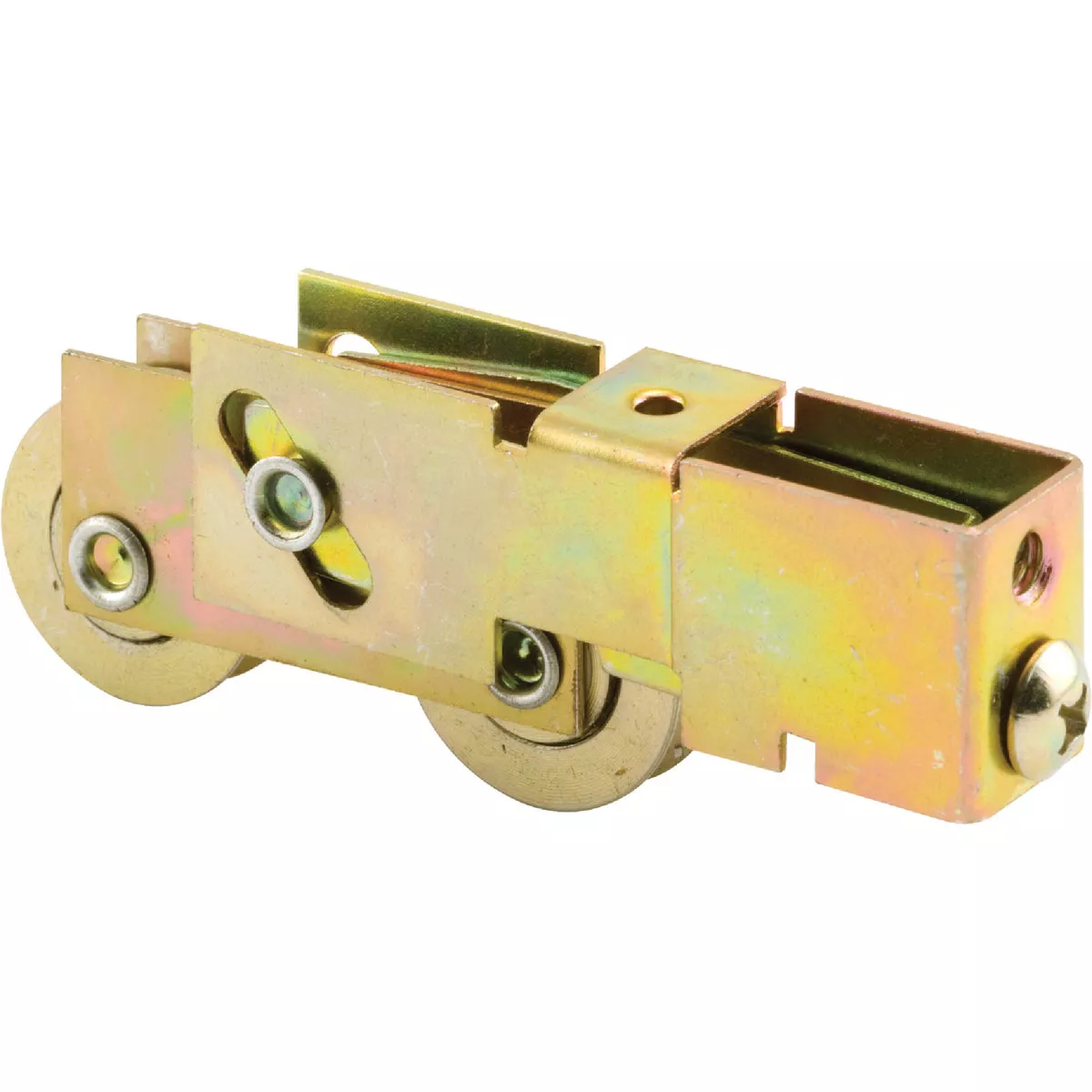

Plain back tandem roller assembly with two 1-1/8 inch concave steel ball bearing rollers. The stamped steel housing is adjustable. Used by MIlgard as well as other manufacturers primarily on vinyl patio doors. The housing is 3/4 inches wide and 1 inch tall with a 1/4-20 threaded mounting hole on the back end and an optional use 10-32 threaded hole on the top.
- This patio door roller is constructed from steel and has tandem rollers with a diameter of 1-1/8 in.
- It comes affixed to an adjustable steel housing assembly
- This roller is used by several patio door manufacturers
Specifications
| For Use With | Milgard & More |
| Roller Diameter | 1-1/8 In. |
| Roller Width | 3/4 In. |
| Wheel Material | Steel |
| Roller Edge Type | Concave |
| Housing Material | Steel |
| Housing Height | 1 In. |
| Housing Width | 3/4 In. |
| Housing Length | 3-1/8 In. |
| Brand | PRIME-LINE |
| UPC | 00049793017918 |
| Product type | Patio Door Roller |
