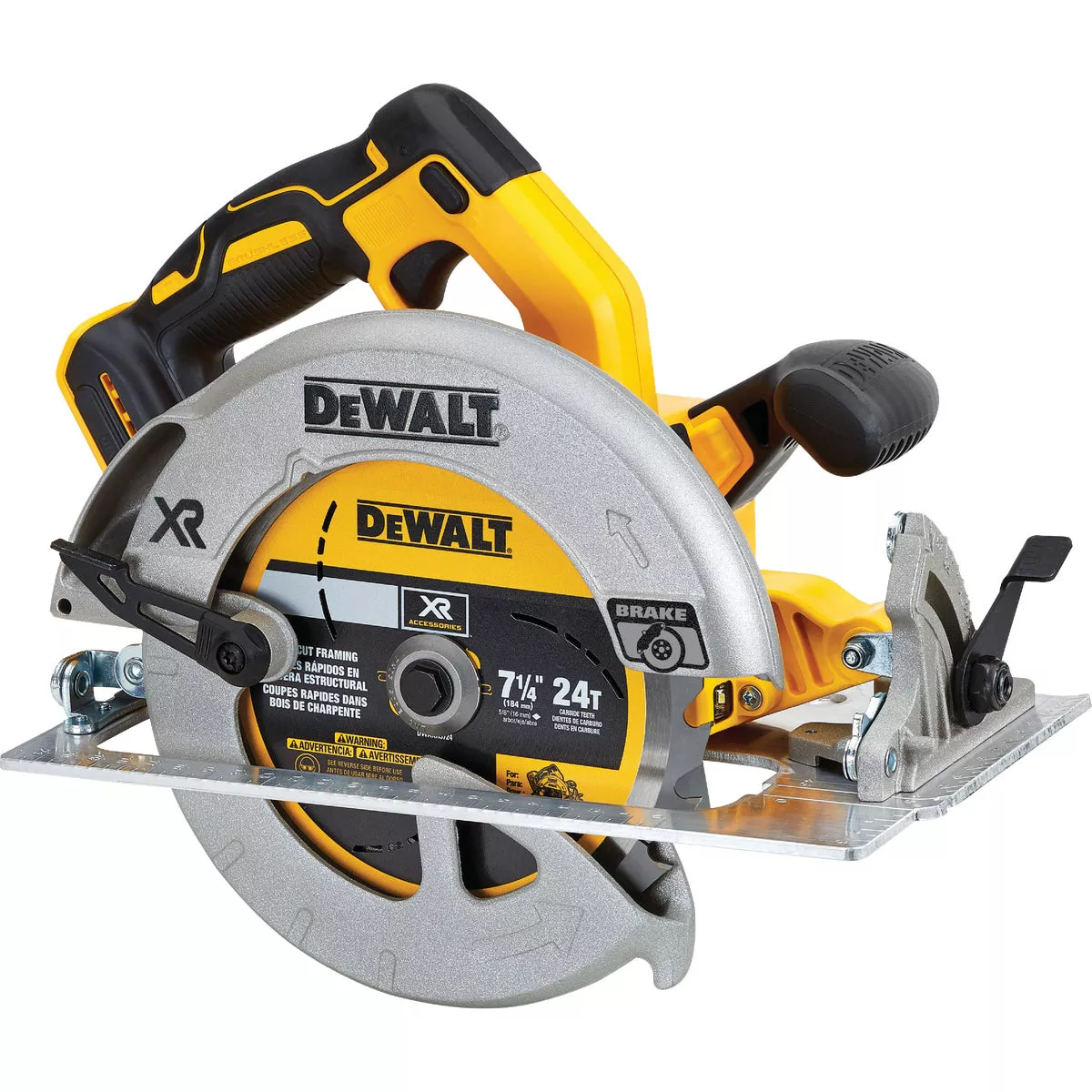

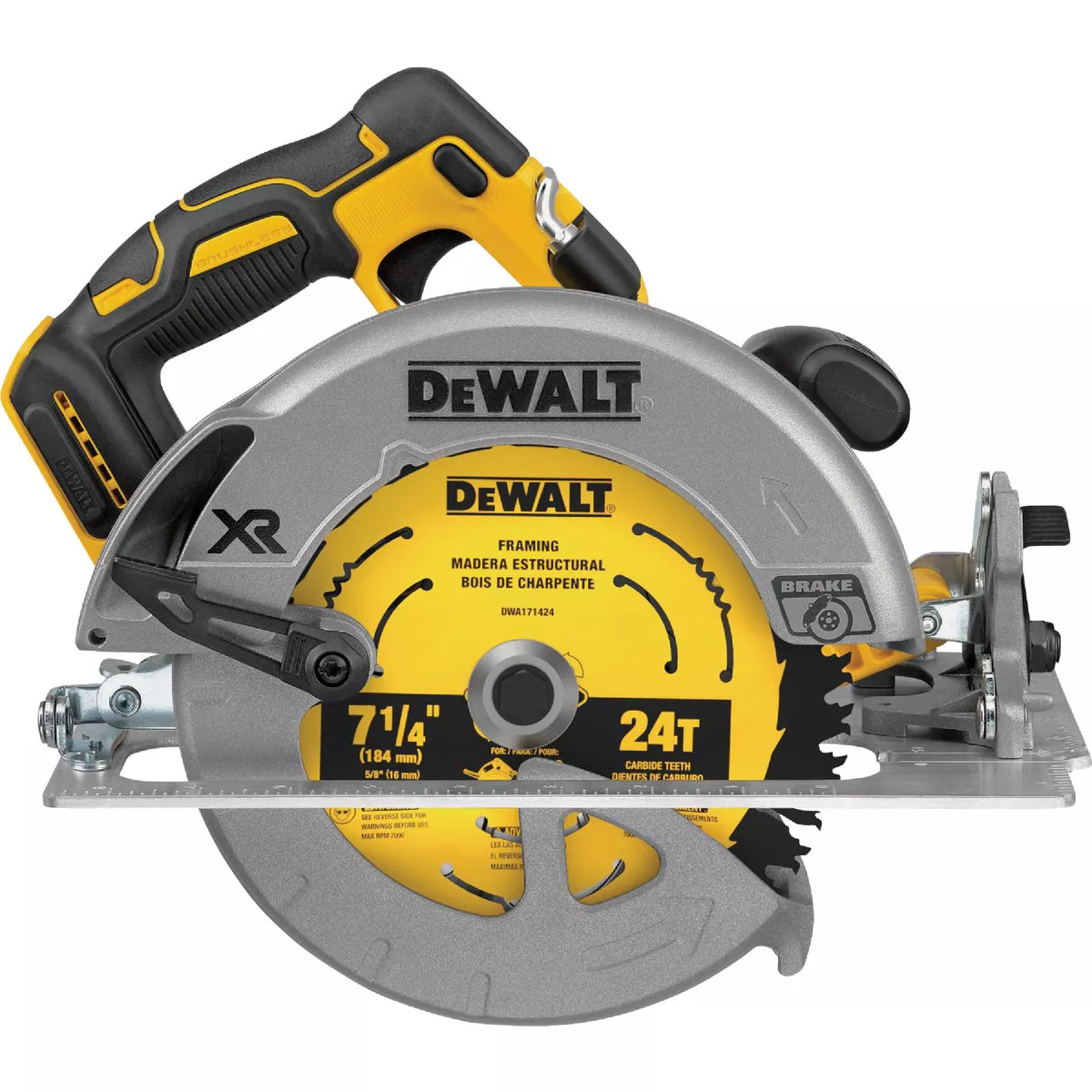

DEWALT 20V MAX XR Brushless 7-1/4 In. Cordless Circular Saw (Tool Only)

Model #DCS570B Item #303198 UPC 00885911489355
Tap to view
Product overview
Get the power and depth-of-cut of a corded circular saw with the portability and convenience of cordless. Powered by a brushless motor, the 20V MAX XR Brushless Cordless 7-1/4 in. Circular Saw delivers excellent performance and runtime on tough jobs. Brushless motor provides 5200 rpm maintaining speed under load. Bevel capacity up to 57 degrees for increased versatility and ease of use. Includes 7-1/4 In. circular saw, (1) 7-1/4 In. blade, (1) blade changing wrench, and (1) rafter hook. Tool Only - battery and charger not included.
  • Brushless motor provides 5500 RPM maintaining speed under load

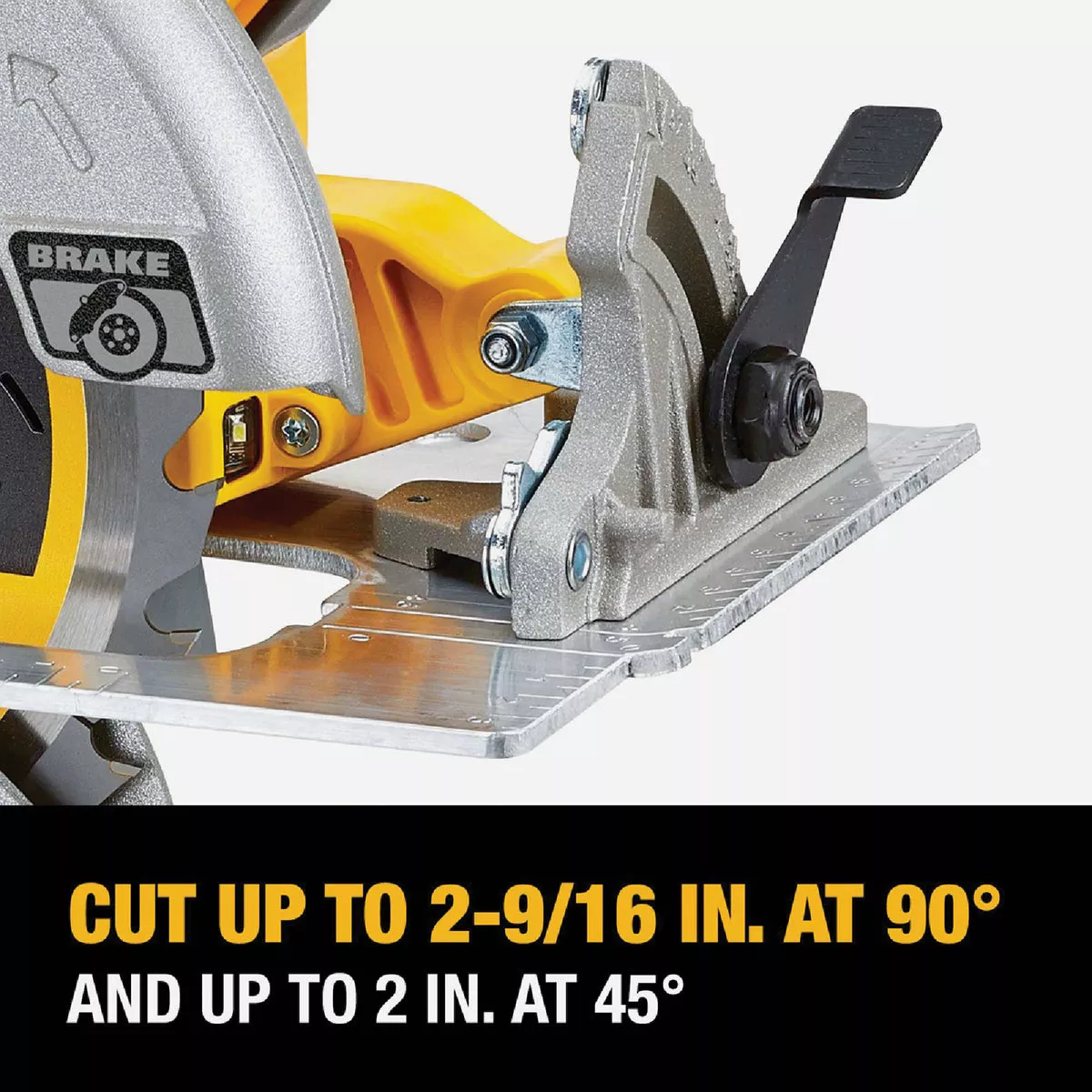

  • 7-1/4 In. blade provides 2-9/16 In. cutting capacity at 90 degrees

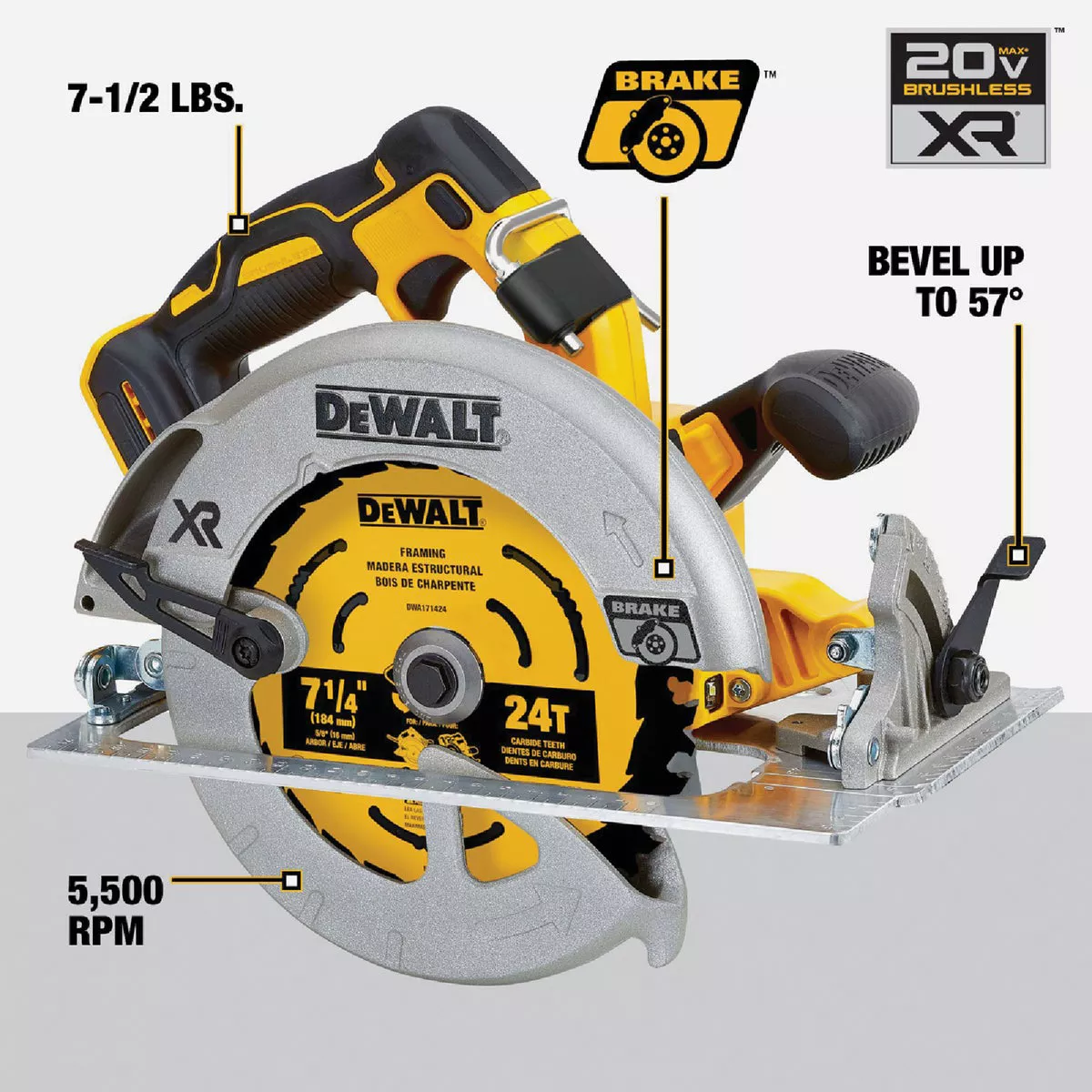

  • Bevel capacity up to 57 degrees for increased versatility

Product manuals and information

Voltage 20
Weight 7-1/2 Lb.
Warranty 3 Year
Battery Type Lithium-Ion
Charger Included No
Corded/Cordless Cordless
Case Included No
Motor Type Brushless
Batteries Included No
Dimensions 10 In. H x 11.3 In. L
Arbor Size 5/8 In.
Blade Diameter 7-1/4 In.
Depth of Cut at 90 Deg 2-9/16 In.
Bevel Capacity 57 Degree
Maximum Speed 0-5500 rpm
Depth of Cut at 45 Deg 2 In.
Battery Platform DEWALT 20V MAX
Height (In.) 10
Length (In.) 11.3
Weight (Lb.) 7.5
Drive Type Sidewinder
Blade Diameter (In.) 7-1/4
UPC 00885911489355
