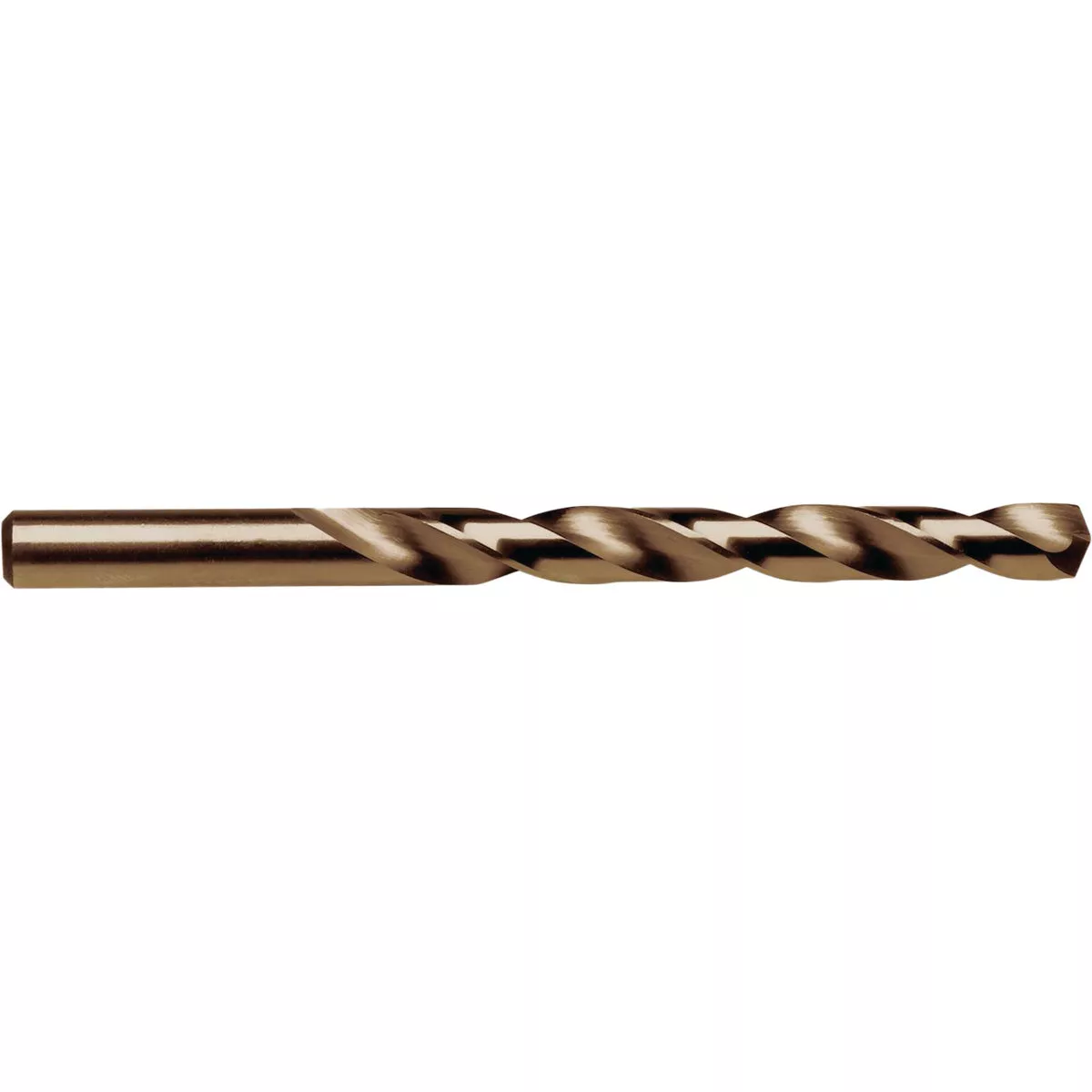

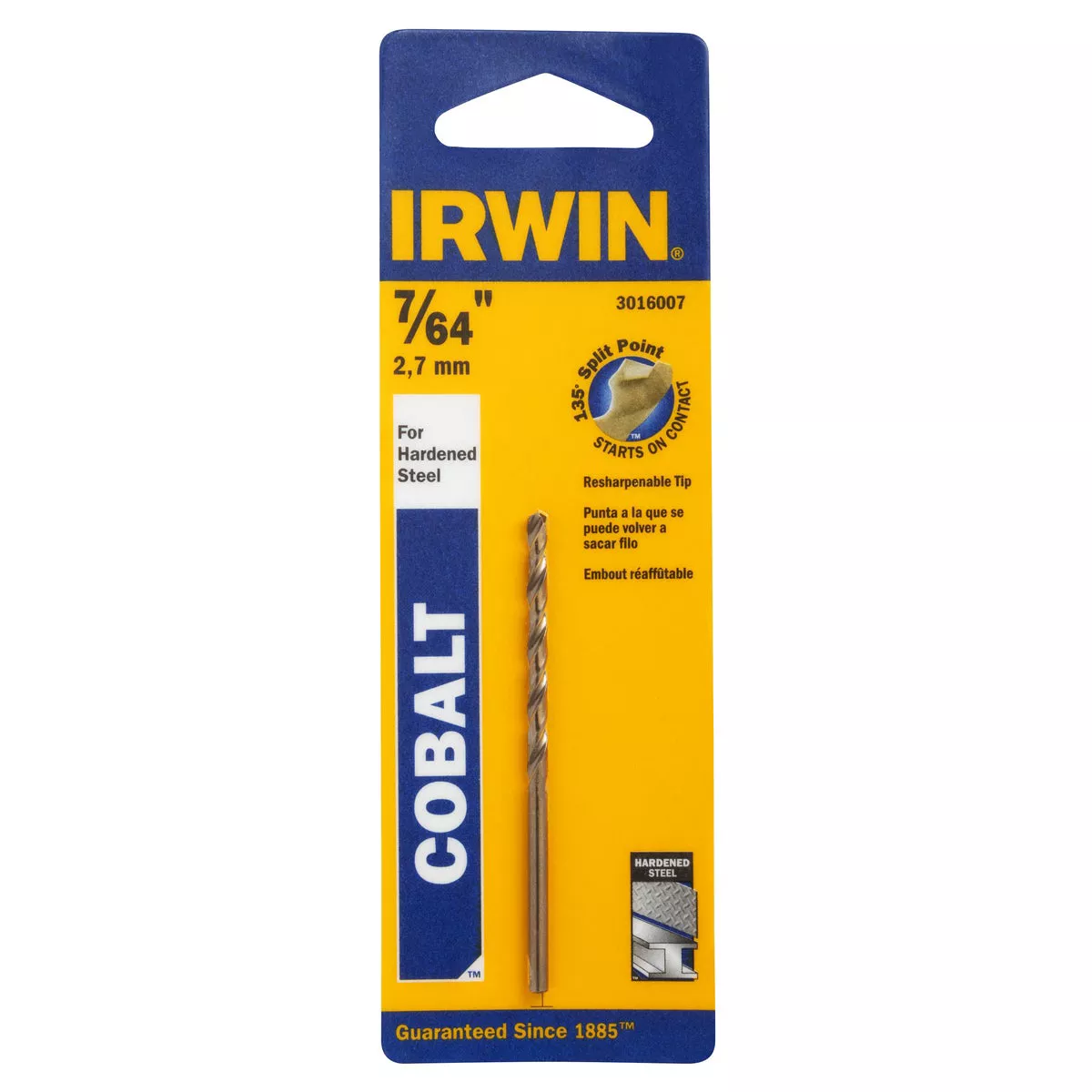

Irwin 7/64 In. Cobalt Pilot Point Drill Bit
Model #3016007 UPC 00024721066961
Item #311103
Tap to view
Product overview

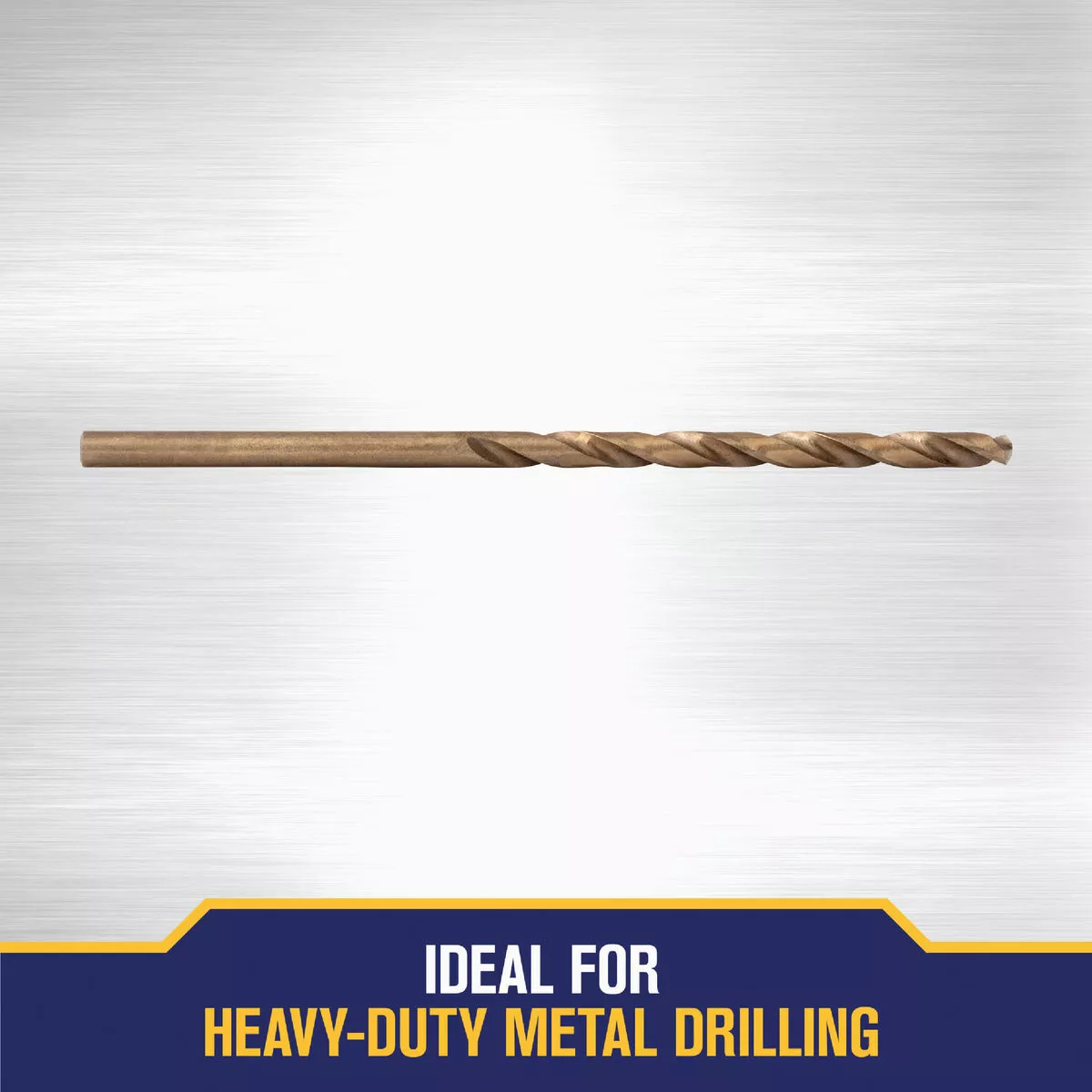

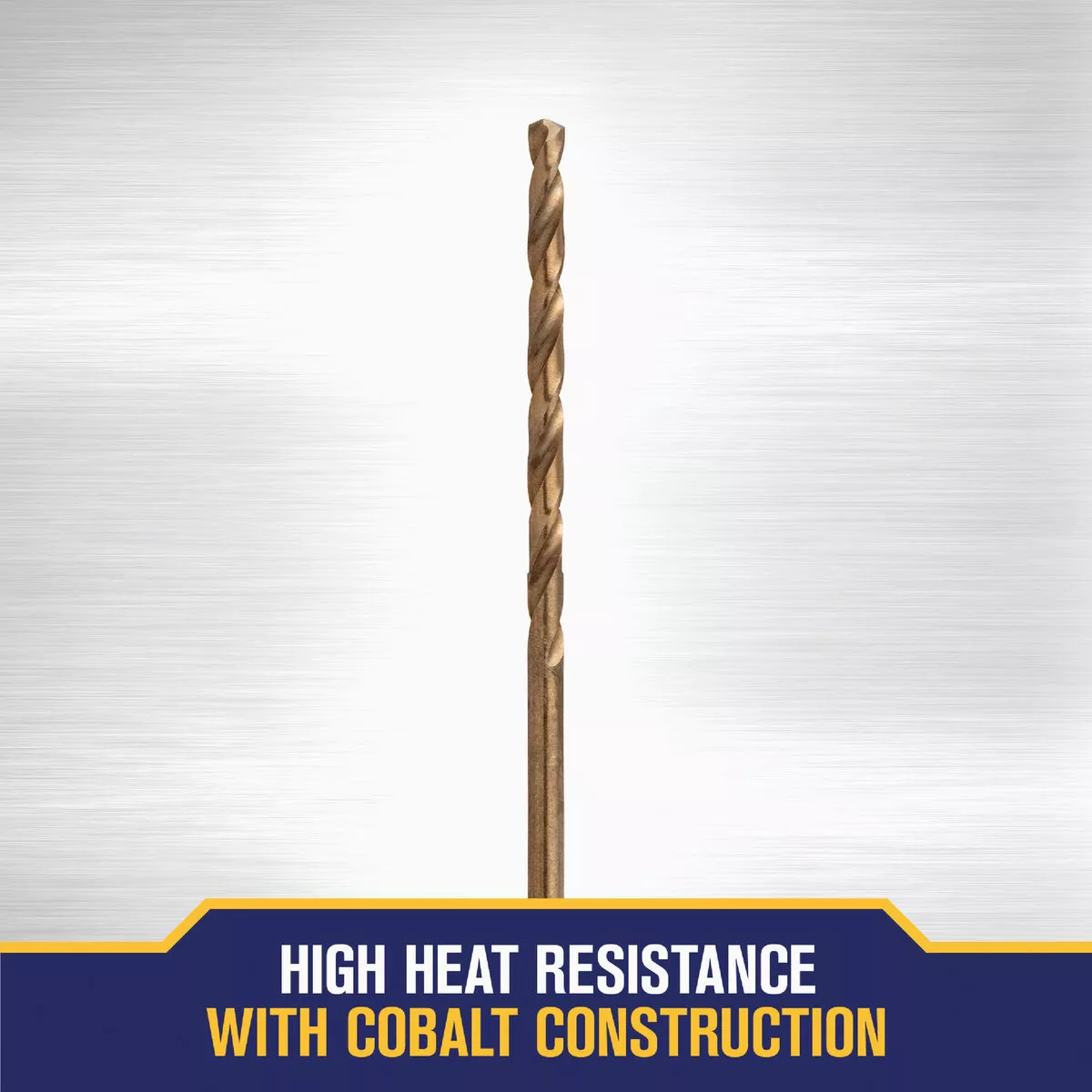

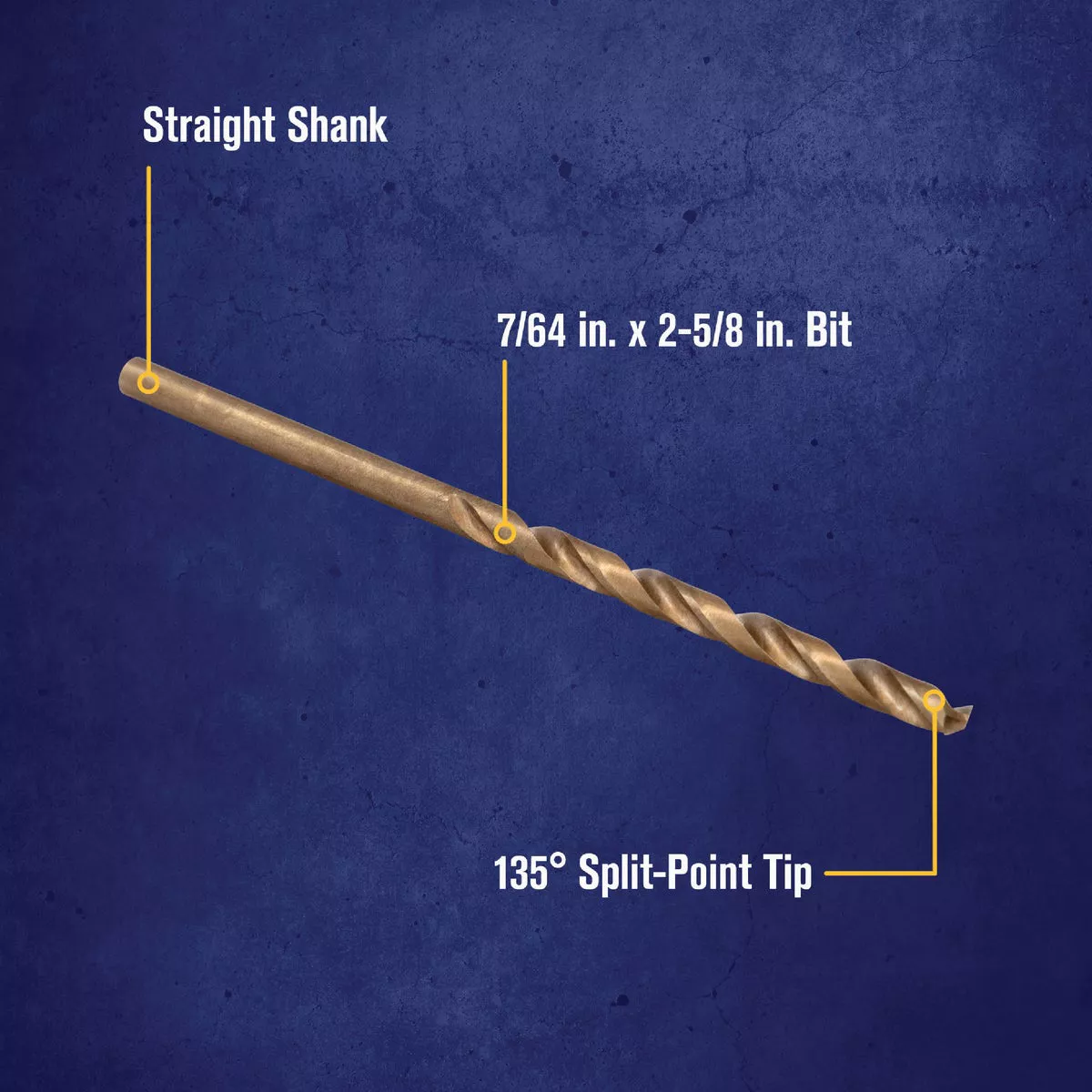

Industrial M42 grade steel with 8% cobalt for drilling in stainless steel, abrasive metals, and other hard to drill alloys. Pilot point, 135 deg (degree) split point design penetrates immediately and prevents walking. Parabolic flute design for improved heat dissipation and increased life. No spin shank eliminates bit slippage. Jobbers length. Sizes 7/16" and 1/2" have a 3/8" reduced shank.
- Pilot point tips produce clean holes with minimal breakout, easy pull-through, and faster chip ejection
- Available in multiple lengths including short sizes for drilling in tight spaces and extended lengths for drilling through walls, ceilings, and floors
Specifications
| Bit Diameter | 7/64 In. |
| Material | Cobalt |
| Length | 2-5/8 In. |
| Shank Diameter | 7/64 In. |
| Tip Angle | 135 Degree |
| Individual/Set | Individual |
| Drilling Depth | 1-1/2 In. |
| Brand | Irwin |
| UPC | 00024721066961 |
| Product type | Drill Bit |
