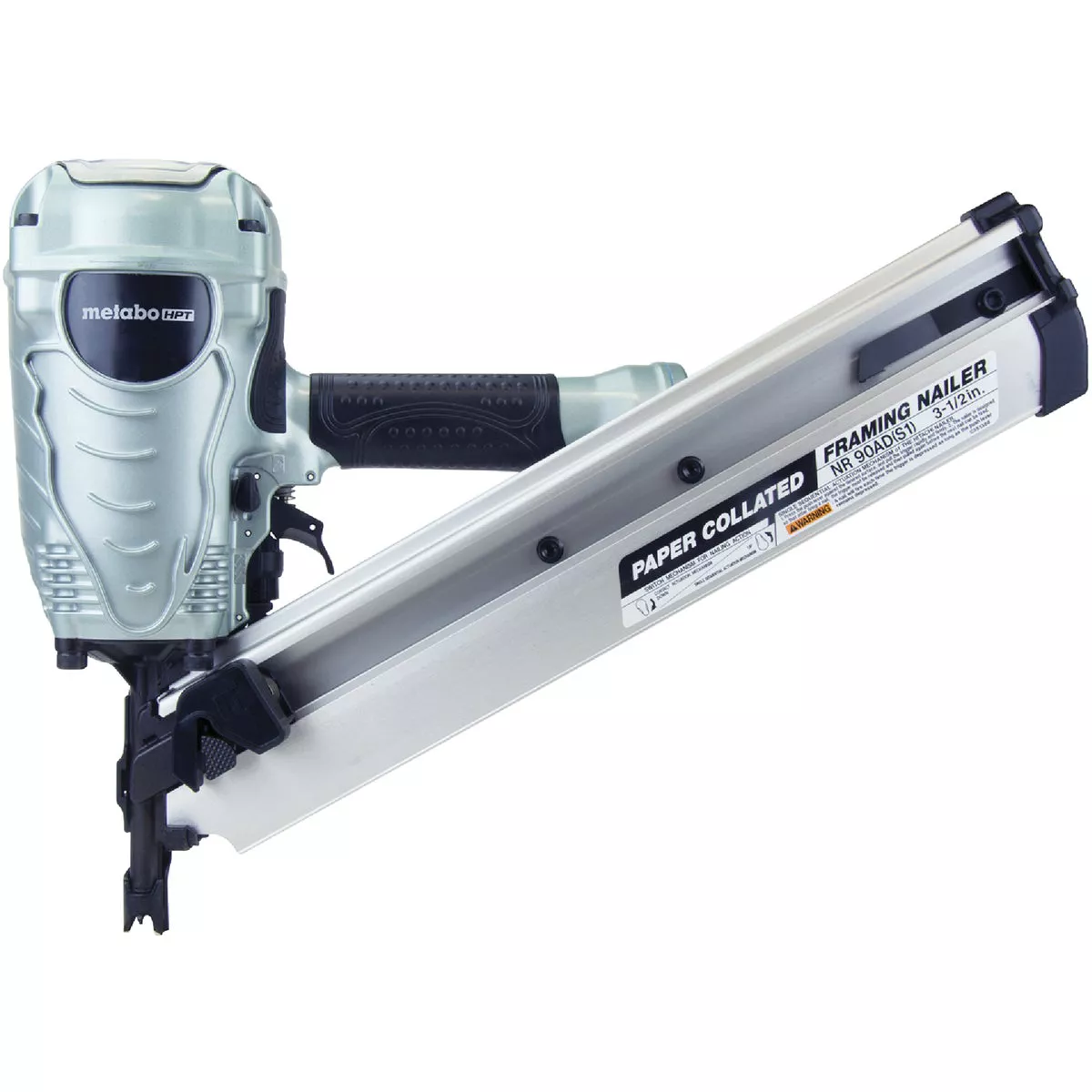

Metabo HPT 30 Degree 3-1/2 In. Paper Tape Framing Nailer

Model #NR90ADS1MItem #312468UPC 00717709023932
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    Selective actuation switch allows for quick transitions between sequential and contact nailing with the simple flip of a switch. Accepts 2 In. up to 3-1/2 In. paper collated framing nails. Tool-less depth adjustment dial allows the user to countersink or flush drive nails into a variety of materials without having to adjust the pressure at the compressor. Two-piece anodized aluminum magazine makes repairs or replacements easy and with minimal expense. Two-step nail loading makes fastener replenishment quick and easy, reducing downtime. Open nose design provides easy access to clear nail jams. Rubber grip over-mold on the handle and trigger provides a secure grip, while additional rubber grip on the backside of the nailer adds comfort when nailing in overhead applications. New head guard design allows for quicker disassembly during tool maintenance. Includes safety glasses.
    Warranty5 Year
    Dimensions5 In. W x 12-11/16 In. H x 18-1/4 In. L
    Weight7 Lb.
    Fastener Range2 In. to 3-1/2 In.
    Operating Pressure70-120 psi
    Air Inlet3/8 In.
    CollationPaper Tape
    Magazine Angle30 Degree
    Fastener Capacity86 to 94 Nails
    Magazine LoadRear
    Fastener TypeClipped Head or Offset Round
    Firing ModeContact or Sequential
    Power TypePneumatic
    Weight (Lb.)7
    Height (In.)12.6875
    Length (In.)18.25
    Width (In.)5
    Corded/CordlessCorded
    BrandMetabo HPT
    UPC00717709023932
    Product typeFraming Nailer
