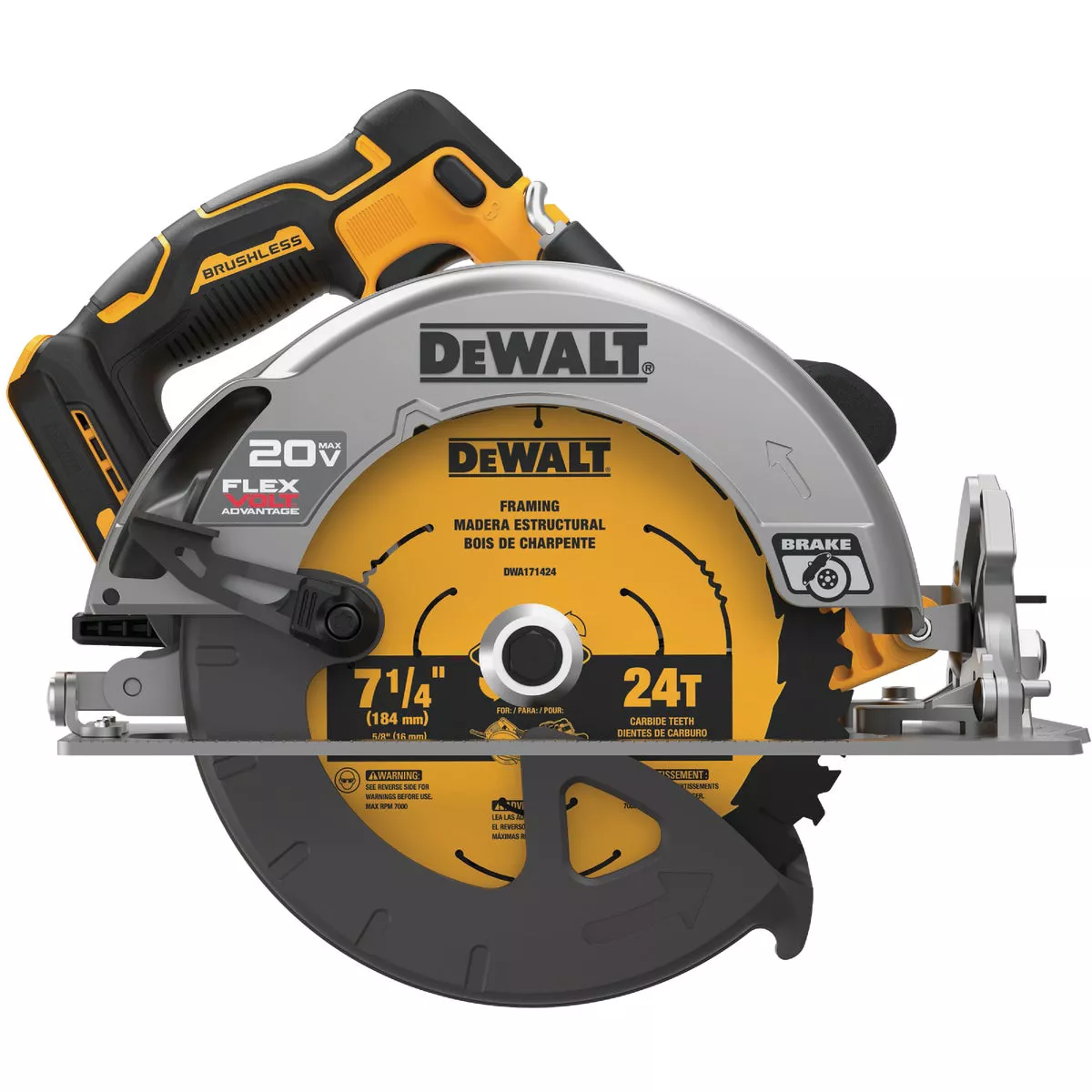

DEWALT 20V MAX Brushless 7-1/4 In. Cordless Circular Saw with FLEXVOLT Advantage (Tool Only)
Model #DCS573BItem #316373UPC 00885911683234
Tap to view
Product overview

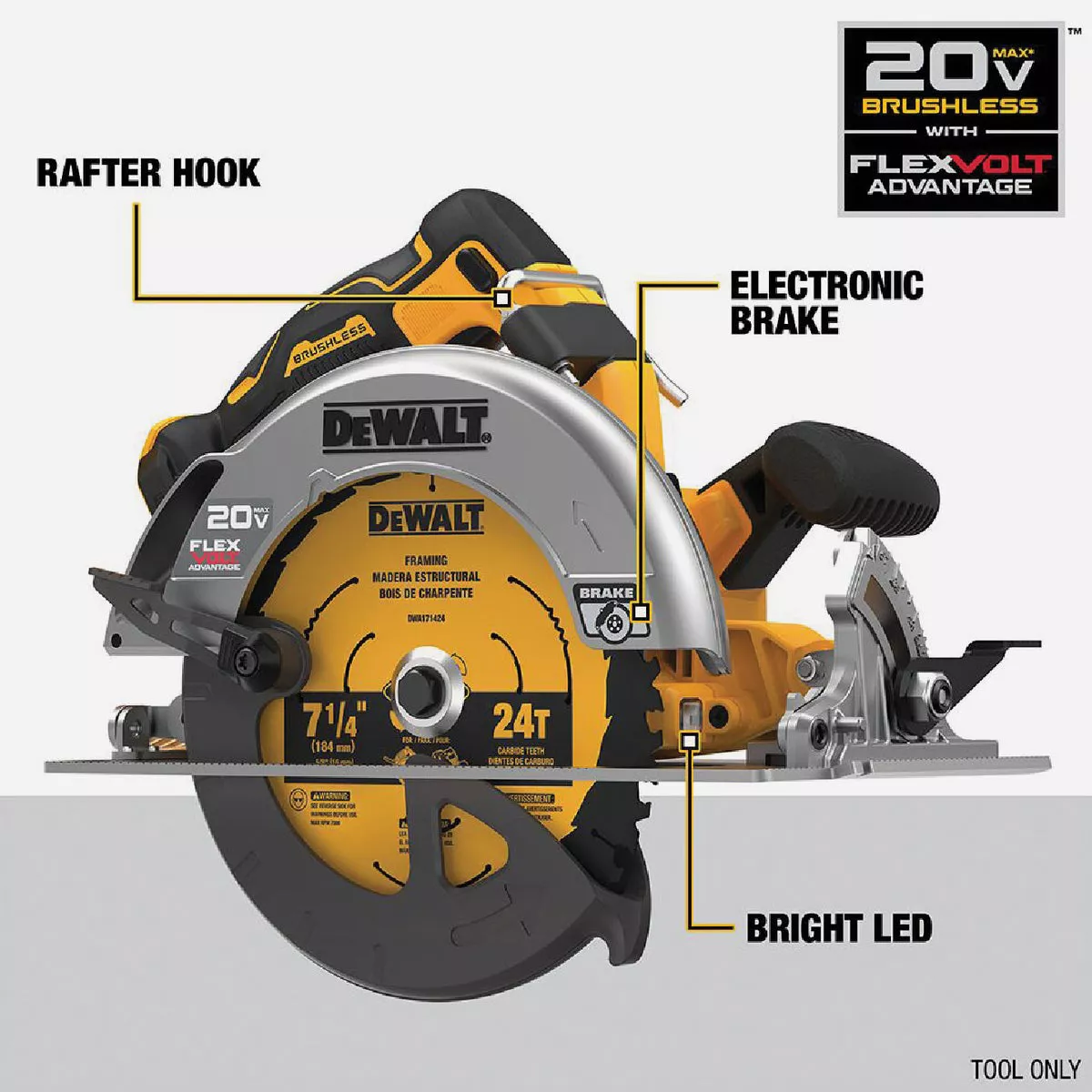

The 20V MAX 7-1/4 in. Brushless Cordless Circular Saw features FLEXVOLT Advantage technology. Built with a powerful brushless motor that provides 5,500 rpm for fast cutting, this saw delivers a maximum depth of cut of 2-9/16 in. at a 90 degrees. As a part of the expanding 20V MAX lineup, this tool is compatible with 20V MAX batteries and chargers. The 7-1/4 in. Circular Saw has up to 77% more power when paired with a DCB606 FLEXVOLT battery vs a DCB205 20V MAX battery. Tool only - battery and charger not included.
- Powerful brushless motor delivers 5500 RPM for faster cutting

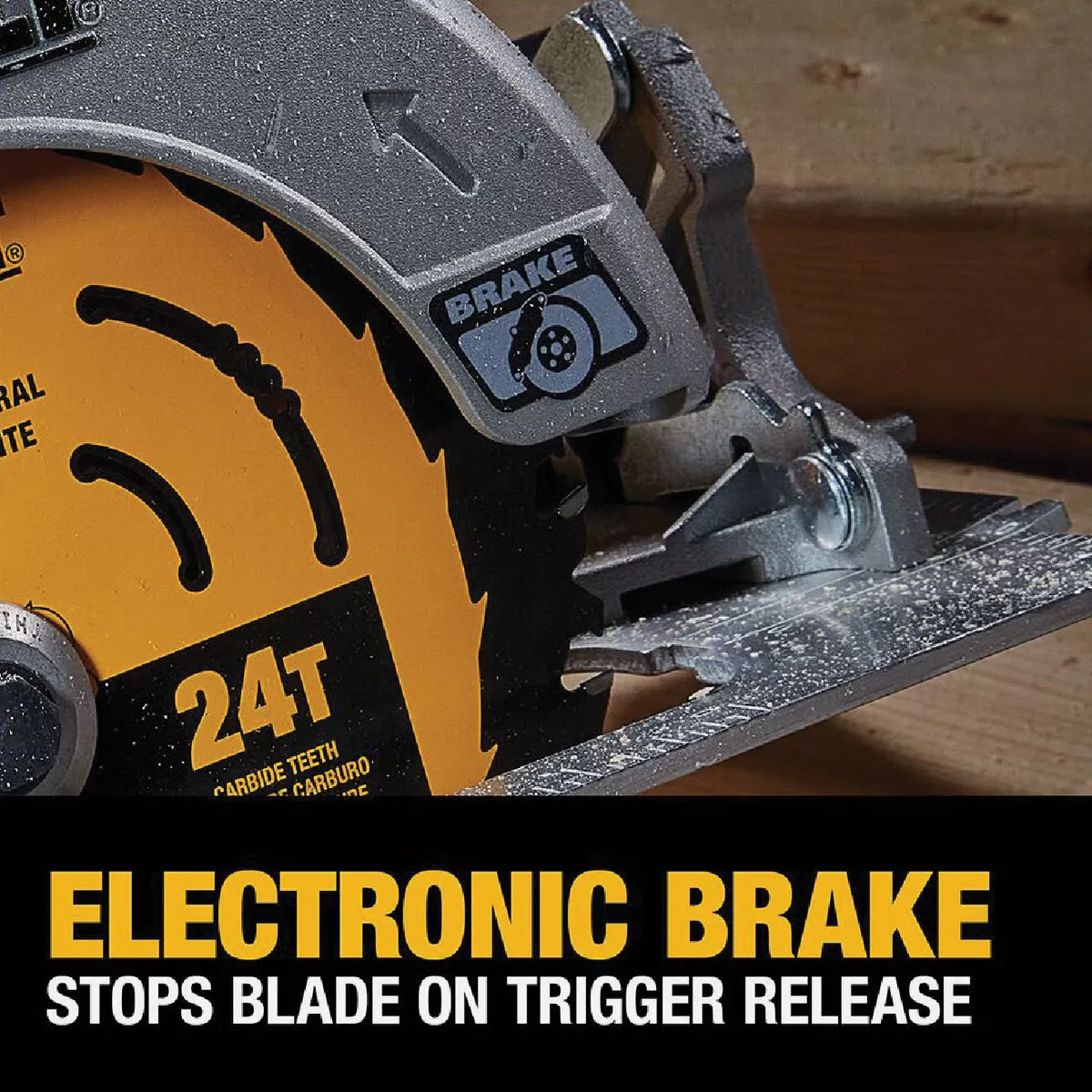

- Electric brake stops the blade after the trigger is released
- Up to 77% more power when paired with FLEXVOLT batteries

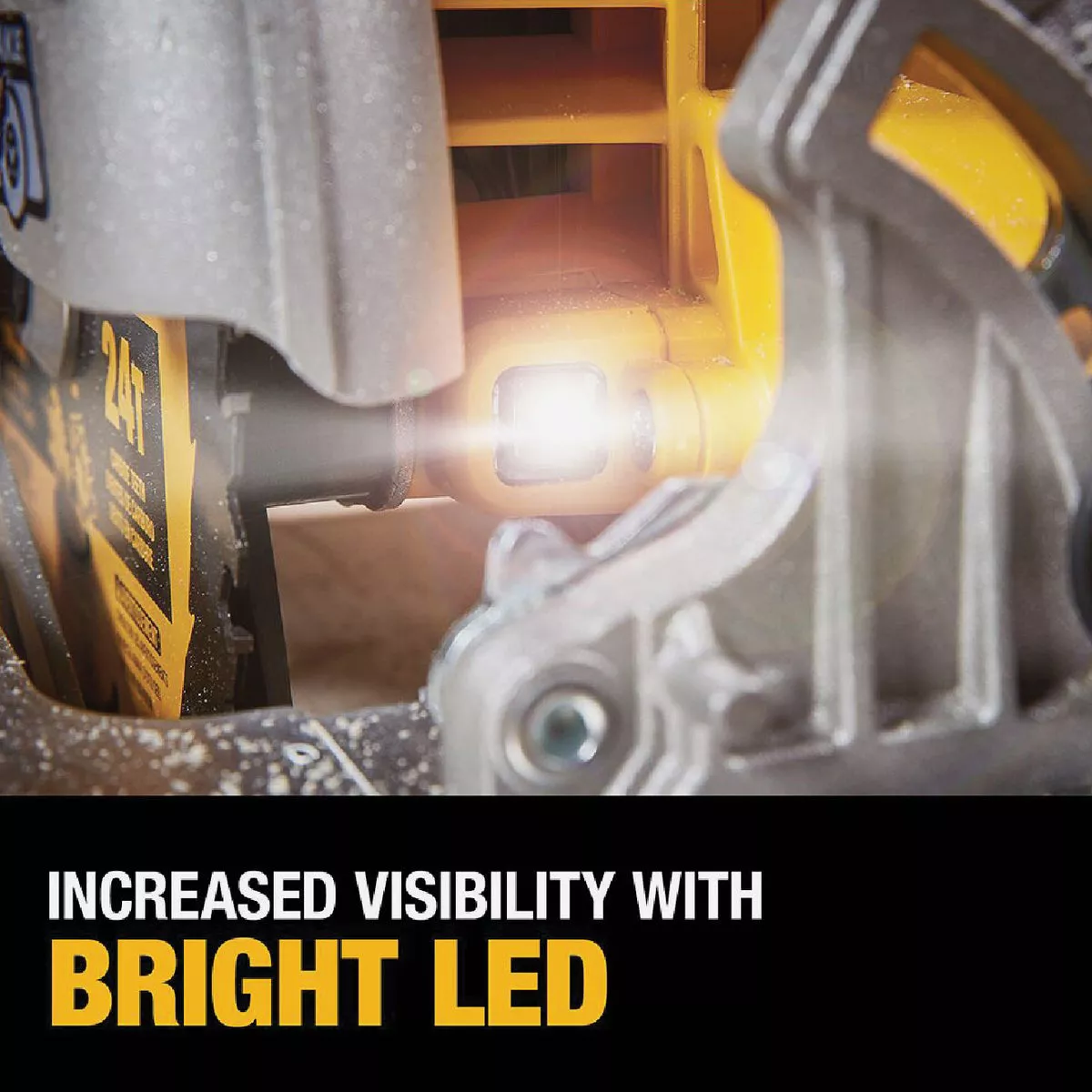

- Bright LED increases visibility and cut accuracy
- Maximum depth of cut of 2-9/16 In. at a 90 degree
- Maximum depth of cut of 2 In. at a 45 degree

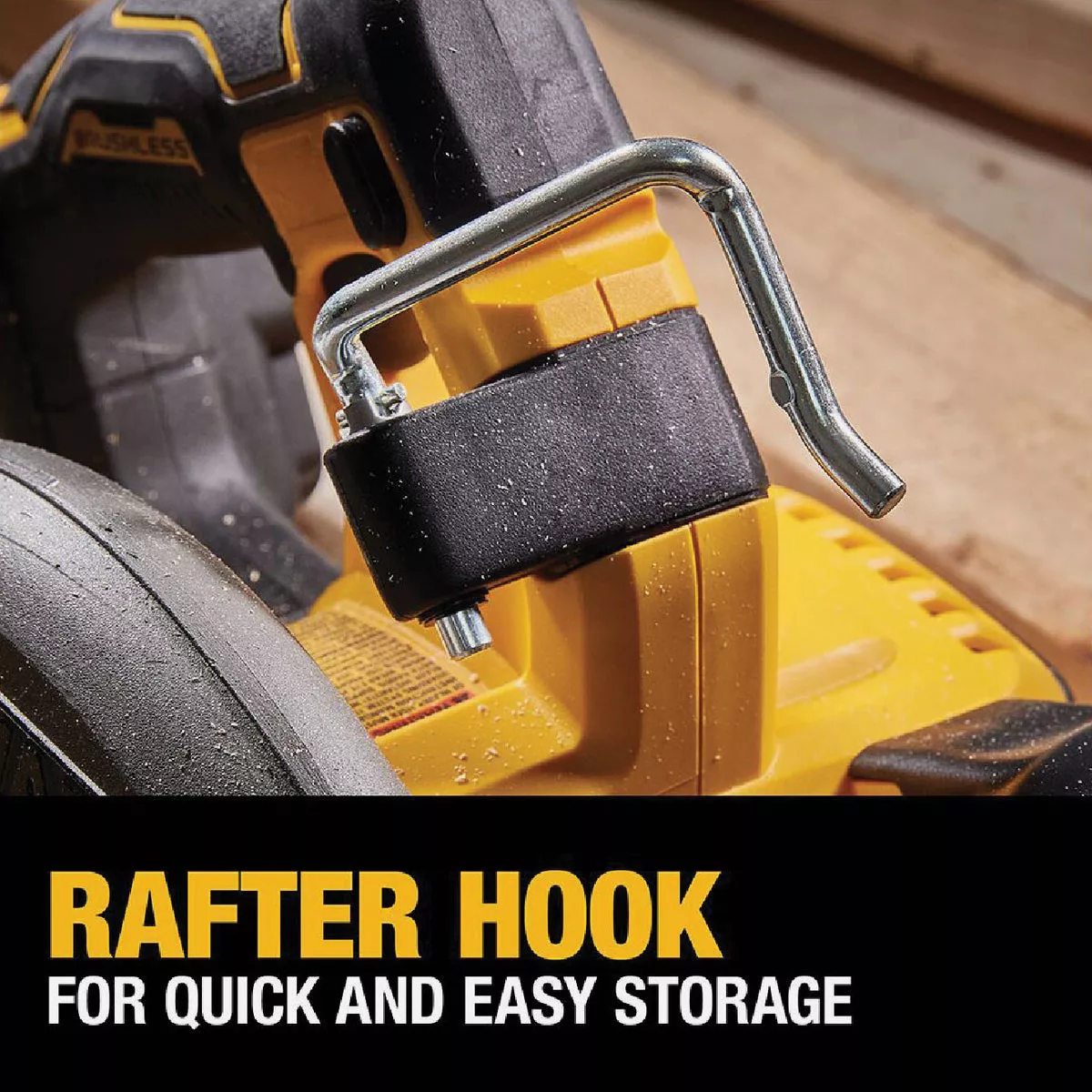

- Integrated rafter hook for quick and easy storage
Specifications
| Voltage | 20 |
| Weight | 8.2 Lb. |
| Warranty | 3 Year |
| Battery Type | Lithium-Ion |
| Charger Included | No |
| Corded/Cordless | Cordless |
| Case Included | No |
| Motor Type | Brushless |
| Batteries Included | No |
| Dimensions | 8.19 In. W x 10.81 In. H x 15.35 In. D |
| Arbor Size | 5/8 In. |
| Blade Diameter | 7-1/4 In. |
| Depth of Cut at 90 Deg | 2-9/16 In. |
| Bevel Capacity | 57 Degree |
| Maximum Speed | 5500 rpm |
| Depth of Cut at 45 Deg | 2 In. |
| Battery Platform | DEWALT 20V MAX |
| Width (In.) | 22.25 |
| Height (In.) | 8.25 |
| Weight (Lb.) | 8.2 |
| Drive Type | Sidewinder |
| Blade Diameter (In.) | 7-1/4 |
| Maximum Cut Depth at 45 Degrees | 2 In. |
| Maximum Cut Depth at 90 Degrees | 2-9/16 In. |
| Brand | DEWALT |
| UPC | 00885911683234 |
| Product type | Cordless Circular Saw |
