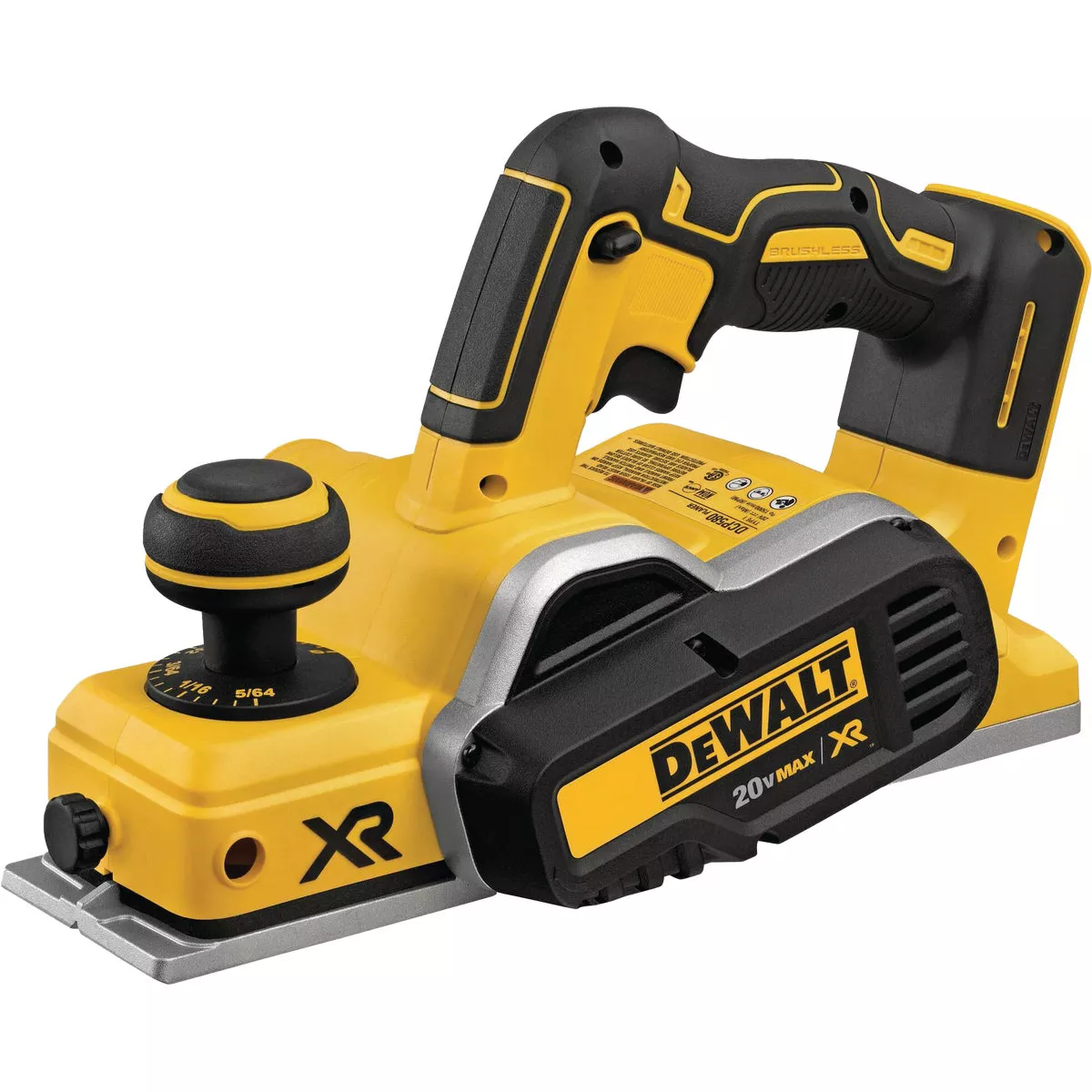

DEWALT 20V MAX XR 3-1/4 In. Brushless Cordless Planer (Tool Only)

Model #DCP580B Item #326447 UPC 00885911450126
Tap to view
Product overview
The DCP580B features a brushless motor for maximum efficiency that helps to maintain speed under load. The brushless planer features a 3-1/4-inch width capacity and ability to adjust depth at 1/256-inch adjustments with a rebate capacity of 5/64-inch The planer weighs 6.8 lbs. and operates on the DEWALT 20V MAX battery system. Lightweight and cordless, the hand planer for woodworking can be easily transported around the jobsite without the hassle of a cord. Tool only - battery and charger not included.
  • Brushless Motor provides power and runtime
  • 30,000 cuts per minute achieve a fast removal rate
  • 5/64 in. (2 mm.) maximum depth of cut

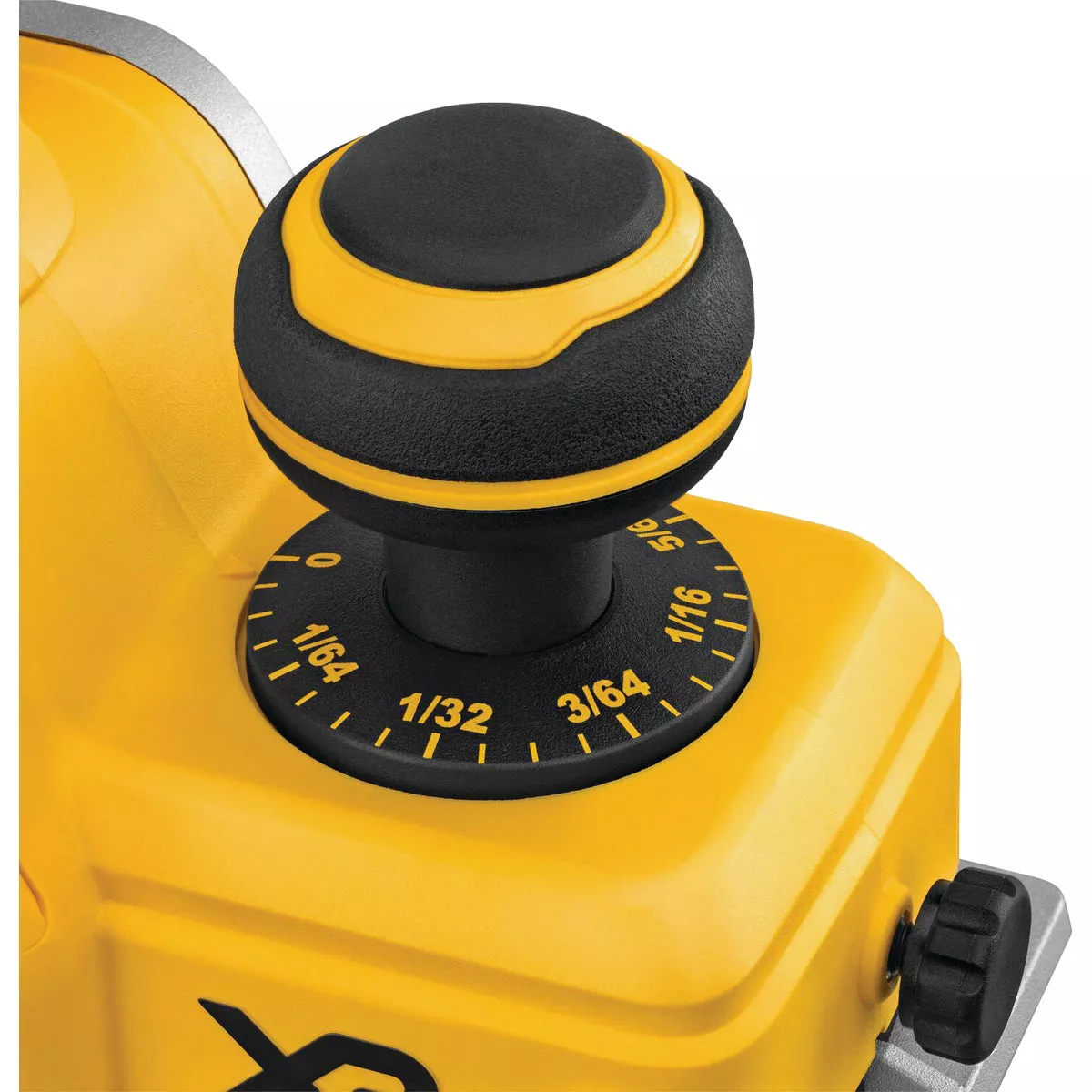

  • Calibrated depth adjustment knob to 1/256 in. (0.01 mm. approximately)

Product manuals and information

Voltage 20
Weight 6.8 Lb.
Warranty 3 Year
Battery Type Lithium-Ion
Charger Included No
Corded/Cordless Cordless
Batteries Included No
Dimensions 8 In. W x 6.938 In. H x 16 In. L
Maximum Speed 15,000 rpm
Planing Width 3-1/4 In.
Planing Depth 5/64 In.
Battery Platform DEWALT 20V MAX
UPC 00885911450126
