DEWALT 20V MAX XR Brushless 1/2 In. Compact Drill/Driver Kit with 1.7 Ah POWERSTACK Battery & 2.0 Ah Battery & Charger
Model #DCD800D1E1 UPC 00885911801454
107623
Tap to view
Product overview

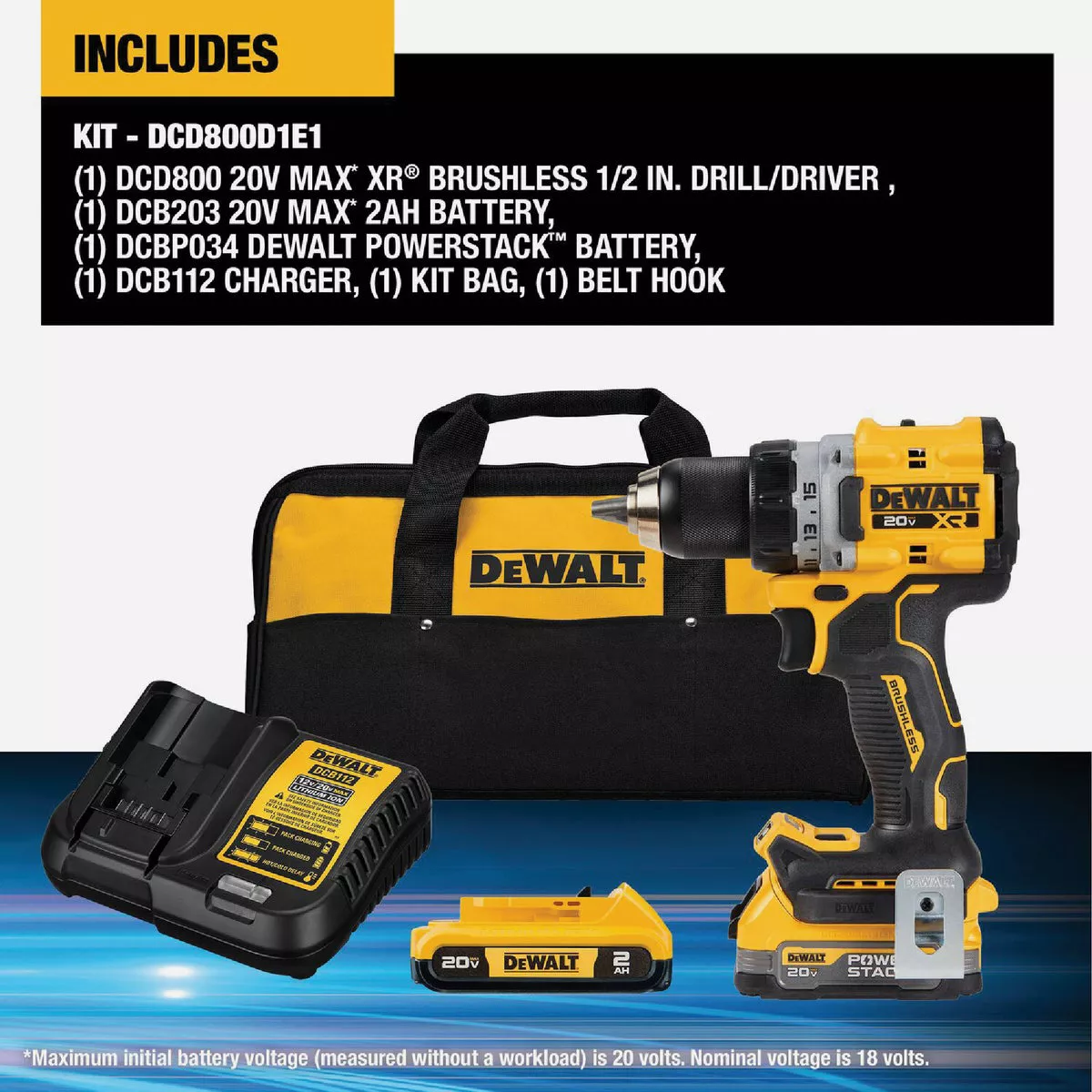

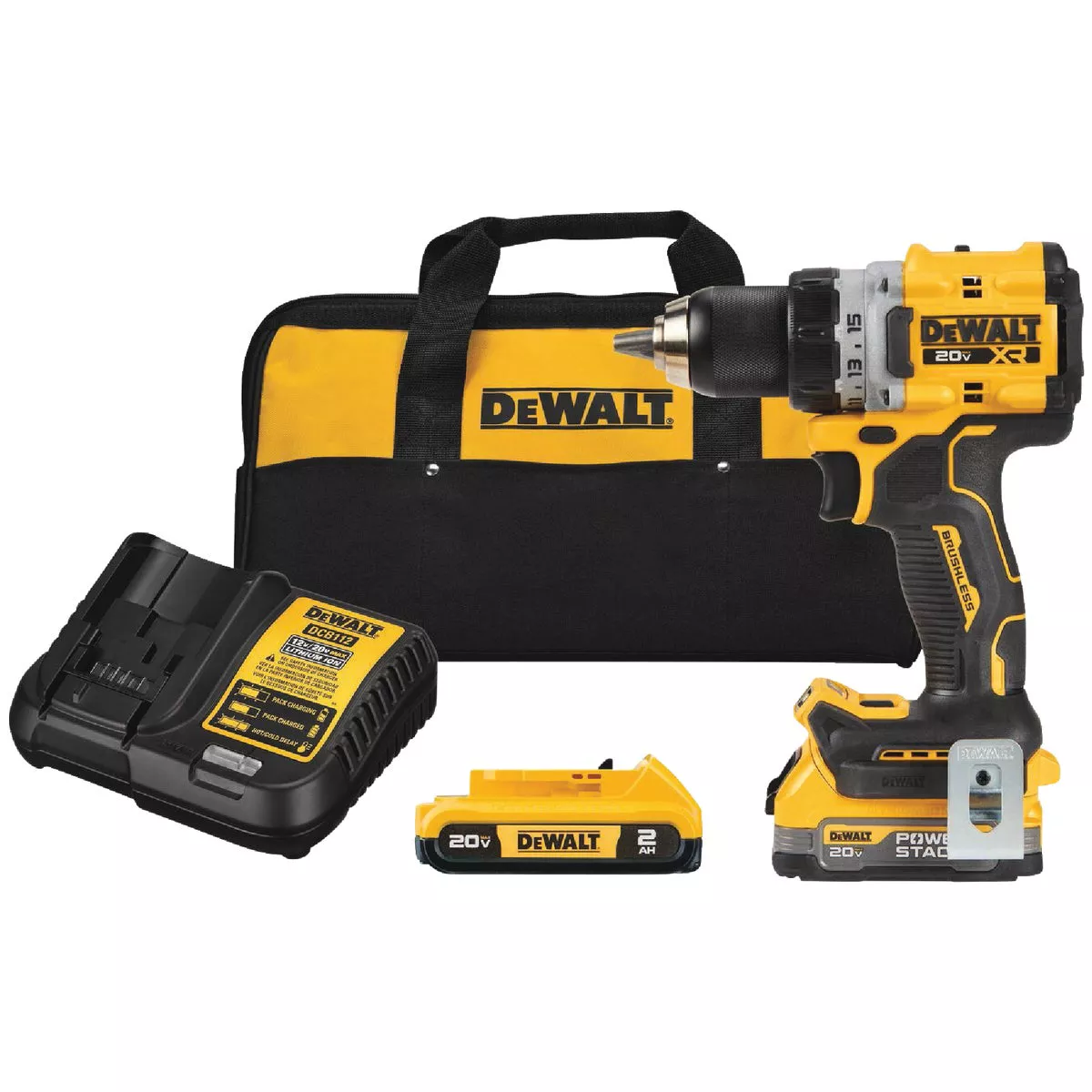

Engineered for professional-grade performance, the 20V MAX XR Brushless 1/2 In. Drill/Driver delivers the power and speed needed for heavy-duty drilling and fastening applications. The high-output brushless motor helps you tackle demanding projects with up to 40% more Unit Watts Out compared to the DEWALT DCD791B using DCBP034 DeWalt POWERSTACK Battery. Complete a wide range of drilling jobs with this versatile power tool, which outputs up to 2,000 rpm when drilling into wood and metal. This lightweight, well-balanced Drill/Driver was built compact to help users comfortably work in tight spaces for extended periods of time. The 3-position, pivoting LED is designed to enhance visibility in dimly lit work areas with its 3 mode settings and up to 70 Lumens of brightness. Includes DCD800 brushless compact drill/driver, DCBP034 DEWALT POWERSTACK battery, (1) DCB203 20V MAX 2 Ah battery, charger, belt hook, and kit bag.

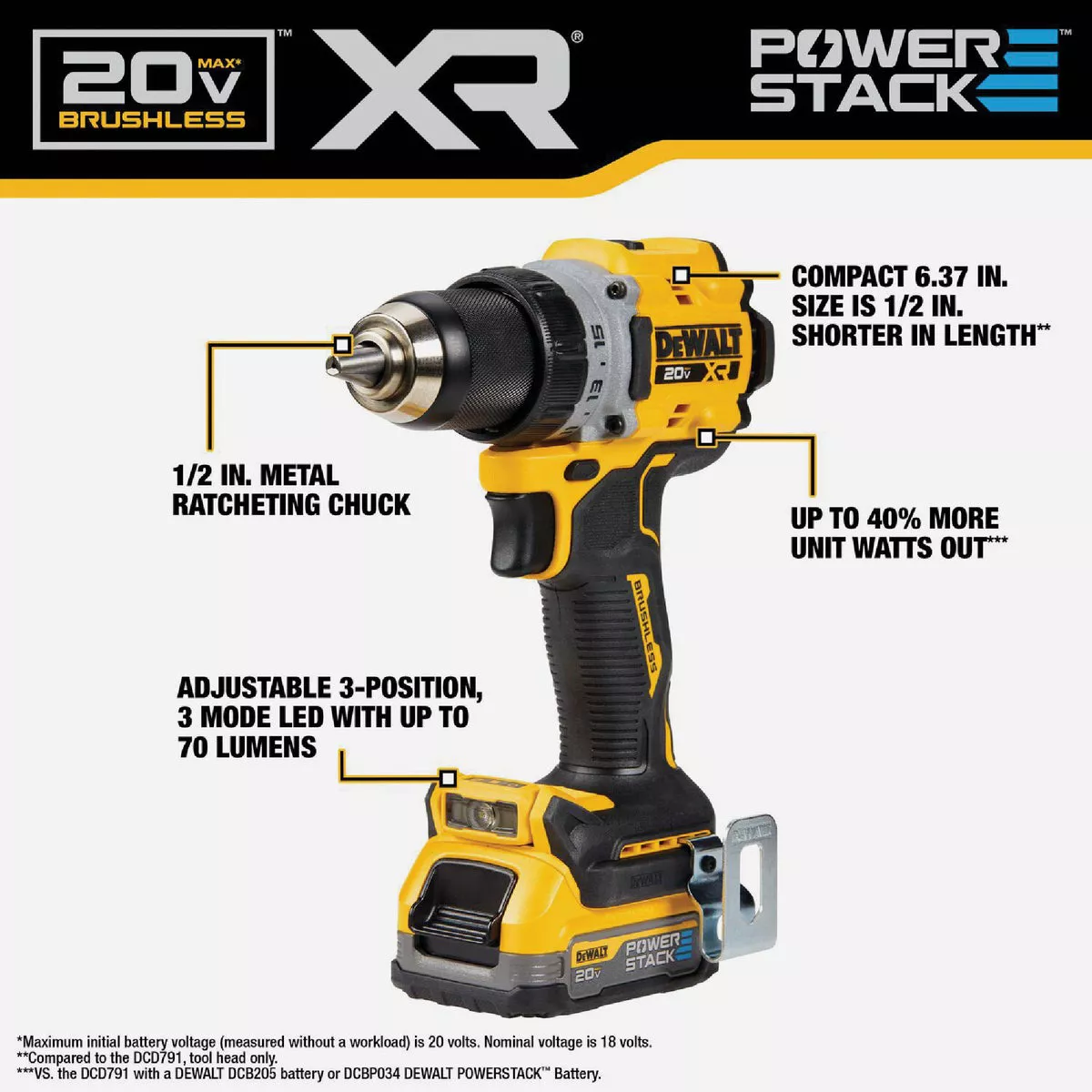

- Compact 6.37 In. length is 1/2 In. shorter in length compared to the DCD791, tool head only

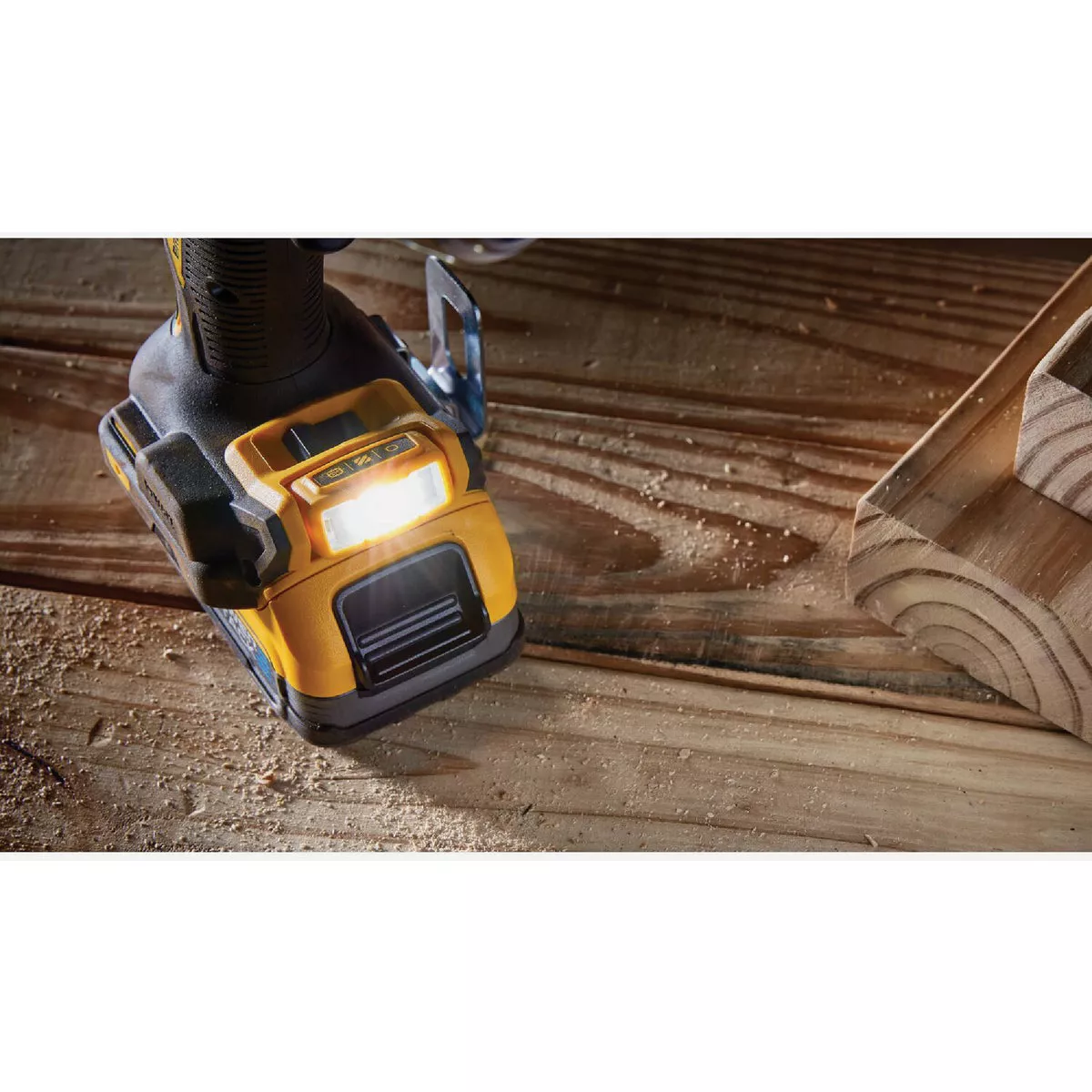

- Adjustable 3-position, 3 mode, up to 70 lumen LED including spotlight mode which features a 20-minute shutoff function for extended work time in low-light spaces
- High-speed transmission with variable trigger and 2 speed settings (0-650/0-2,000 rpm)
- High bit retention with 1/2 In. metal ratcheting chuck
- Drill/Driver chip pocket accepts Tool Connect chip DCE042 and connects with Tool Connect Site Manager app for seamless worksite asset management (DCE042 sold separately)
- 40% more UWO versus the DCD791 using DCBP034 DeWalt POWERSTACK Battery
Specifications
| Voltage | 20 |
| Weight | 2.82 Lb. |
| Warranty | 3 Year |
| Battery Type | Lithium-Ion |
| Charger Included | Yes |
| Corded/Cordless | Cordless |
| Case Included | Yes |
| Motor Type | Brushless |
| Ampere Hour | 1.7 Ah & 2.0 Ah |
| Batteries Included | Yes |
| Dimensions | 6.37 In. L |
| Chuck Size | 1/2 In. |
| Chuck Type | Keyless |
| Maximum Speed | 2000 rpm |
| Clutch Settings | 15 |
| Battery Amp Hour | Multiple |
| Battery Platform | DEWALT 20V MAX |
| Width (In.) | 2.5 |
| Height (In.) | 8.14 |
| Length (In.) | 6.37 |
| Weight (Lb.) | 2.82 |
| Number of Batteries Included | 2 |
| Brand | DEWALT |
| UPC | 00885911801454 |
| Product type | Cordless Drill |
