DEWALT XTREME 12V MAX Brushless 3/8 In. 5-In-1 Cordless Drill/Driver Kit with 2.0 Ah Battery & Charger

Model #DCD703F1 Item #336004 UPC 00885911780551
Tap to view
Product overview

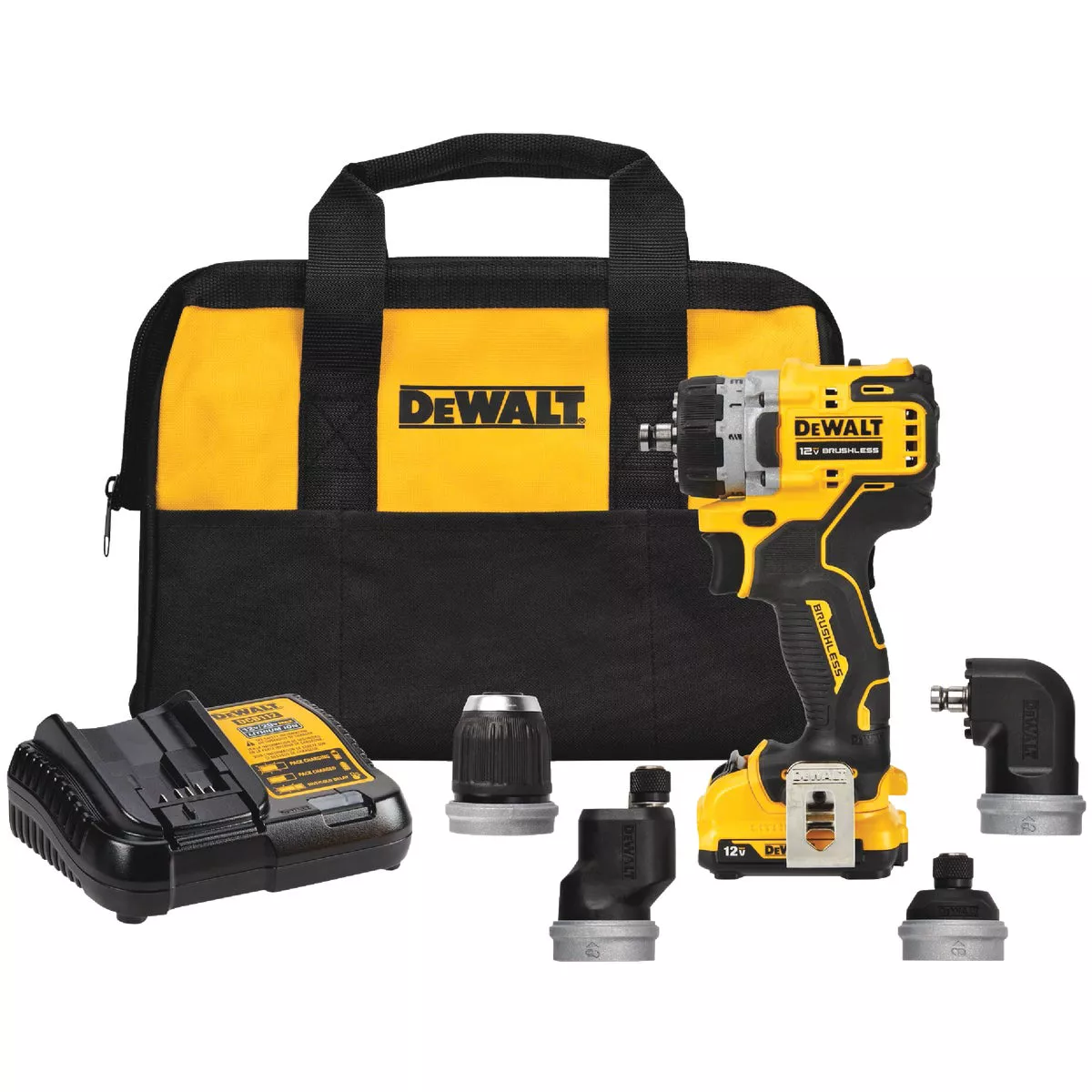

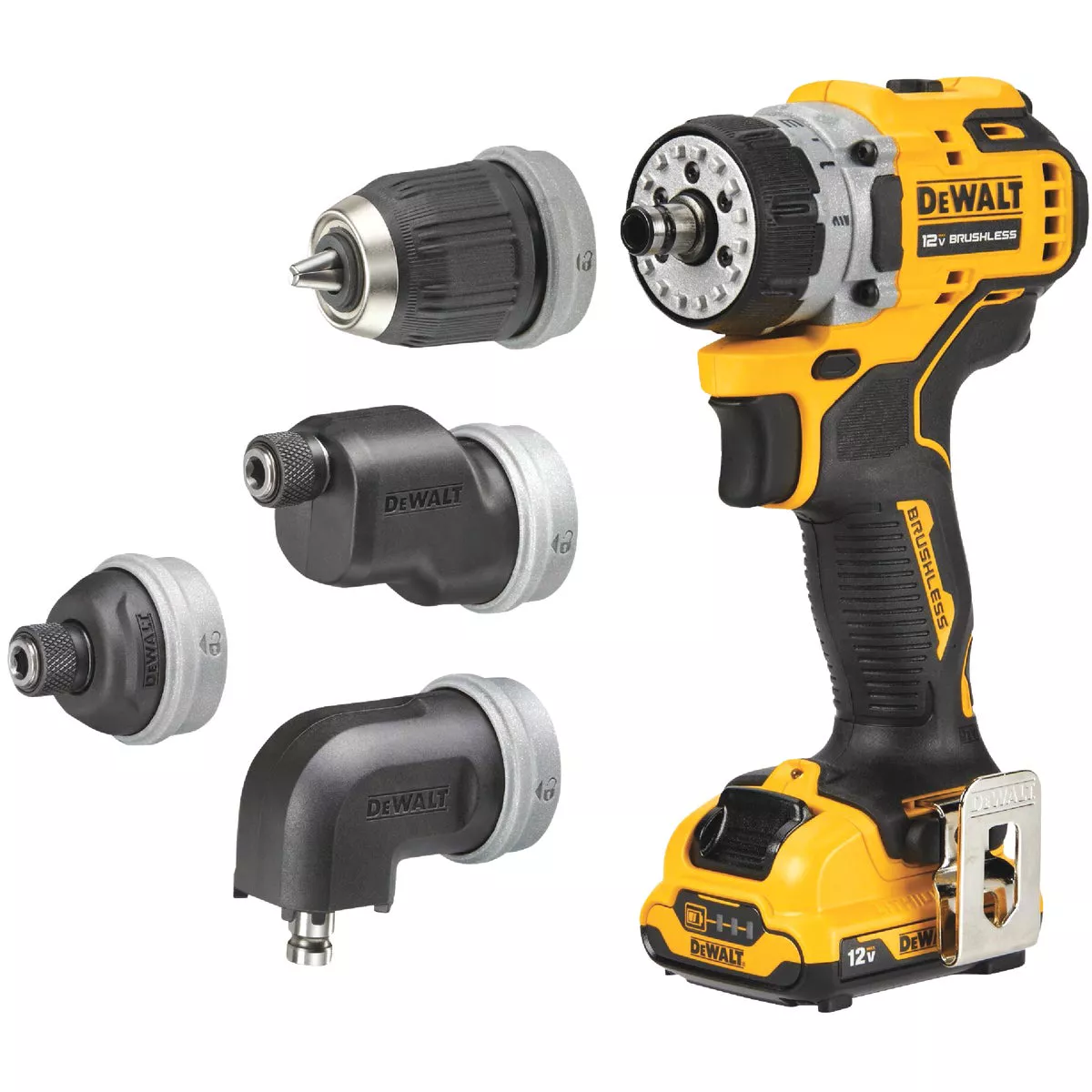

Take on a wide range of drilling jobs with the incredible versatility offered by the DeWalt XTREME 12V MAX Brushless Cordless 5-in-1 Drill/Driver Kit. Designed to improve access in hard-to-reach spaces, this Multi-Head Drill/Driver Kit features 4 dedicated attachment solutions. Drill and fasten in confined spaces with ease using the 1/4 In. hex right angle attachment, while the 1/4 In. hex quick release offset accessory delivers high performance in challenging corner spots. Conveniently load 1 In. bits using one hand with the 1/4 In. hex quick release add-on, then tackle precision applications like drilling small pilot holes with the 3/8 In. ratcheting chuck attachment. Keep your bits close at hand with the built-in 1/4 In. hex bit holder with internal magnet for short tool length. At less than 5 In. long, this compact tool offers pro-level usability with 2-speed transmission and 15 clutch settings for the control you need to complete a variety of projects. Includes DCD703 XTREME 12V MAX 5-in-1 drill/driver, (1) DCB122 12V MAX 2.0 Ah battery, (1) DCB112 charger, (1) 3/8 In. chuck attachment, (1) 1/4 In. hex right angle attachment, (1) 1/4 In. hex quick release attachment, (1) 1/4 In. hex quick release offset attachment, belt hook, and kit bag.
  • Compact, lightweight design (1.6 Lb.) with 4 dedicated attachment solutions
  • High speed transmission with 2 speed settings and 15 clutch settings
  • Brushless motor offers pro-grade efficiency
  • LED foot light illuminates dark workspaces

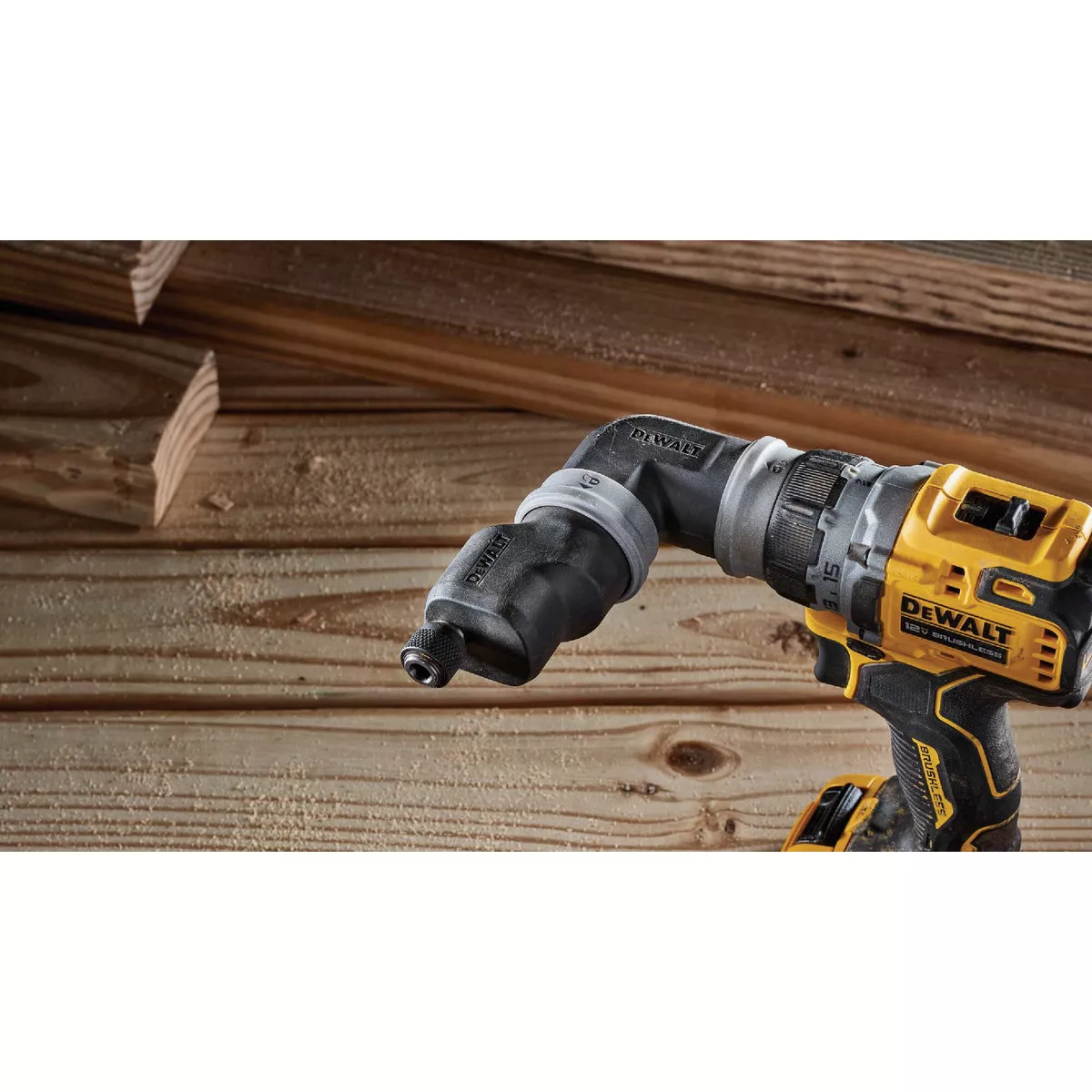

  • 1/4 in. hex right angle attachment provides 90 degree drilling and fastening solution in confined spaces
  • 3/8 in. ratcheting chuck attachment provides a wide range of drilling application

Product manuals and information

Voltage 12
Weight 1.6 Lb.
Warranty 3 Year
Battery Type Lithium-Ion
Charger Included Yes
Corded/Cordless Cordless
Case Included Yes
Motor Type Brushless
Ampere Hour 2.0 Ah
Batteries Included Yes
Dimensions 4.96 In. L
Chuck Size 3/8 In.
Chuck Type Keyless
Maximum Speed 1500 rpm
Clutch Settings 15
UWO (Unit Watts Out) 255
Battery Amp Hour 2.0
Battery Platform DEWALT 12V MAX
Width (In.) 2.26
Height (In.) 7.375
Length (In.) 4.96
Weight (Lb.) 1.6
Number of Batteries Included 1
UPC 00885911780551
