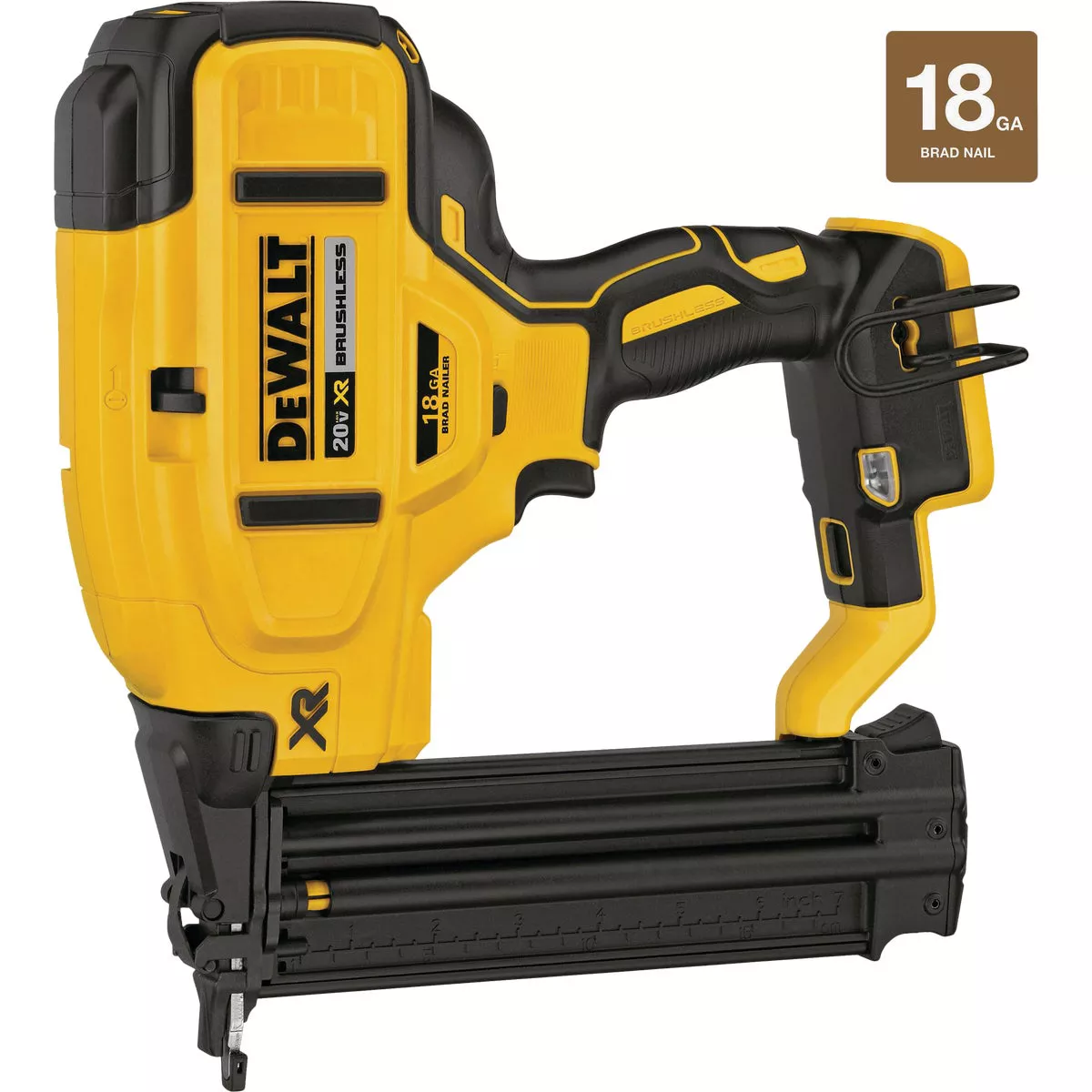

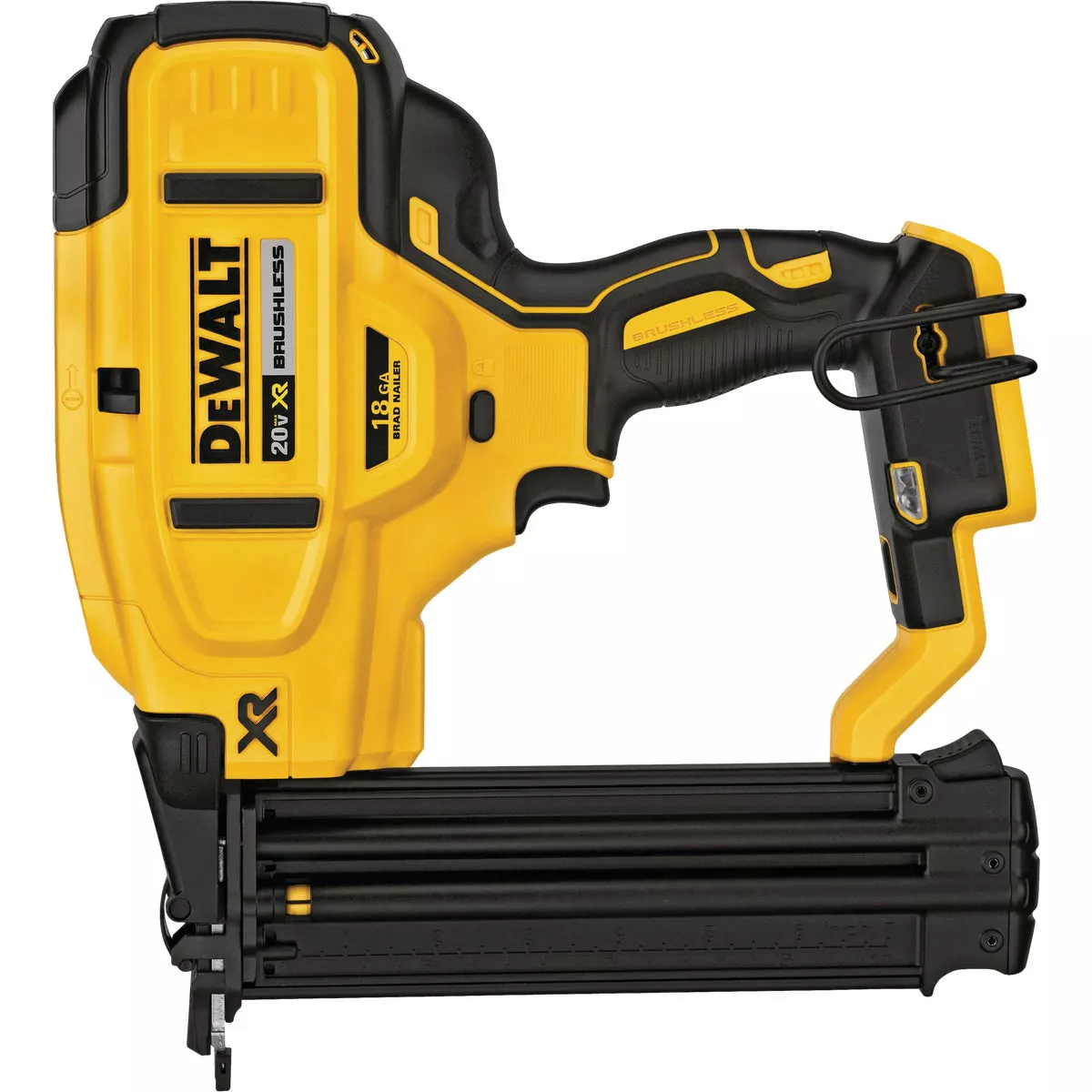

DEWALT 20V MAX XR Brushless 18-Gauge 2-1/8 In. Cordless Brad Nailer (Tool Only)

Model #DCN680BItem #362385UPC 00885911482233
Tap to view
In-store price may vary. Not all products available at all stores.

    Product overview

    The DEWALT DCN680 Brad Nailer drives 18 Gauge brad nails from 5/8 in. to 2-1/8 in. which makes it ideal for fastening decorative molding, casing, kitchen crown, and shoe molding. With its brushless motor powered by a DEWALT 20V MAX Lithium-Ion battery (not included), the DCN680 is ready to work without the hassle of using gas, compressor, and hose. Tackle jobs both large and small with the features of a pneumatic tool and the freedom of cordless. Tool only - battery and charger not included.
    • Brushless motor maximizes runtime and durability
    • Tool-free depth adjustment for precise countersinking of nails
    • Tool-free jam release to quickly and easily clear nail jams
    • Multi-functional LED lights help to provide both workspace illumination and tool diagnostics
    • Tool-free selectable trigger for sequential or contact actuation modes
    • Integrated tool-free stall release lever to quickly reset the driver blade in the event of a stall
    • Adjustable belt hook for left or right attachment depending on user preference
    • Low nail lockout prevents dry firing and unwanted marks on the work material
    Voltage20
    Weight5.3 Lb.
    Warranty3 Year
    Battery TypeLithium-Ion
    Charger IncludedNo
    Corded/CordlessCordless
    Case IncludedNo
    Motor TypeBrushless
    Ampere Hour2.0 Ah
    Batteries IncludedNo
    Dimensions11.8 In. x 10.3 In. x 3.7 In.
    Gauge18
    Fastener Range5/8 In. to 2-1/8 In.
    Fastener Capacity110 Nails
    Firing ModeContact or Sequential
    Magazine LoadSide
    Battery Amp Hour2.0
    Battery PlatformDEWALT 20V MAX
    Battery PlatormDEWALT 20V MAX
    Width (In.)3.7
    Height (In.)11.8
    Length (In.)10.3
    Minimum Fastener Size5/8 In.
    Maximum Fastener Size2-1/8 In.
    Weight (Lb.)5.3
    Power TypeBattery
    BrandDEWALT
    UPC00885911482233
    Product typeCordless Brad Nailer
