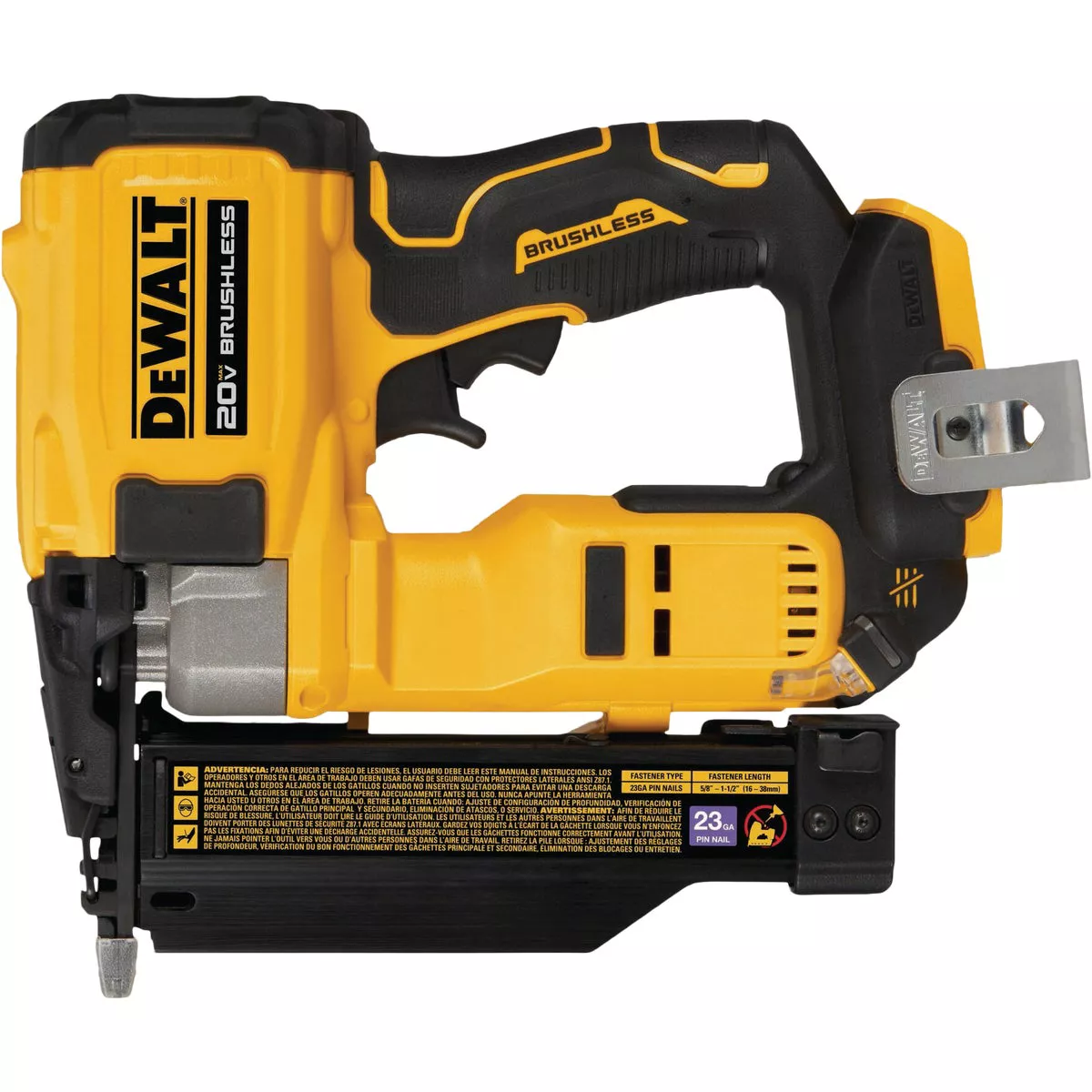

DEWALT ATOMIC 20V MAX 23-Gauge Brushless Cordless Pin Nailer (Tool Only)

Model #DCN623B Item #385617 UPC 00885911658003
Tap to view
Product overview
Complete finish, trim, and remodeling work with this ATOMIC Compact Series 20V MAX Brushless Cordless 23 Ga. Pin Nailer. The battery-powered nailer is designed to drive 23 Ga. pin nails measuring between 5/8 in. and 1-1/2 in. with its high-output brushless motor. Take advantage of cordless convenience as you seamlessly drive nails with no hoses, compressors, or gas cartridges required. Tool only - battery and charger not included.
  • Unit works with 23 Ga. pin nails from 5/8" up to 1-1/2" in length
  • Designed for ease of use with tool-free jam release and tool-free depth adjust
  • Low nail lockout system with LED indicator to inform user when its time to reload

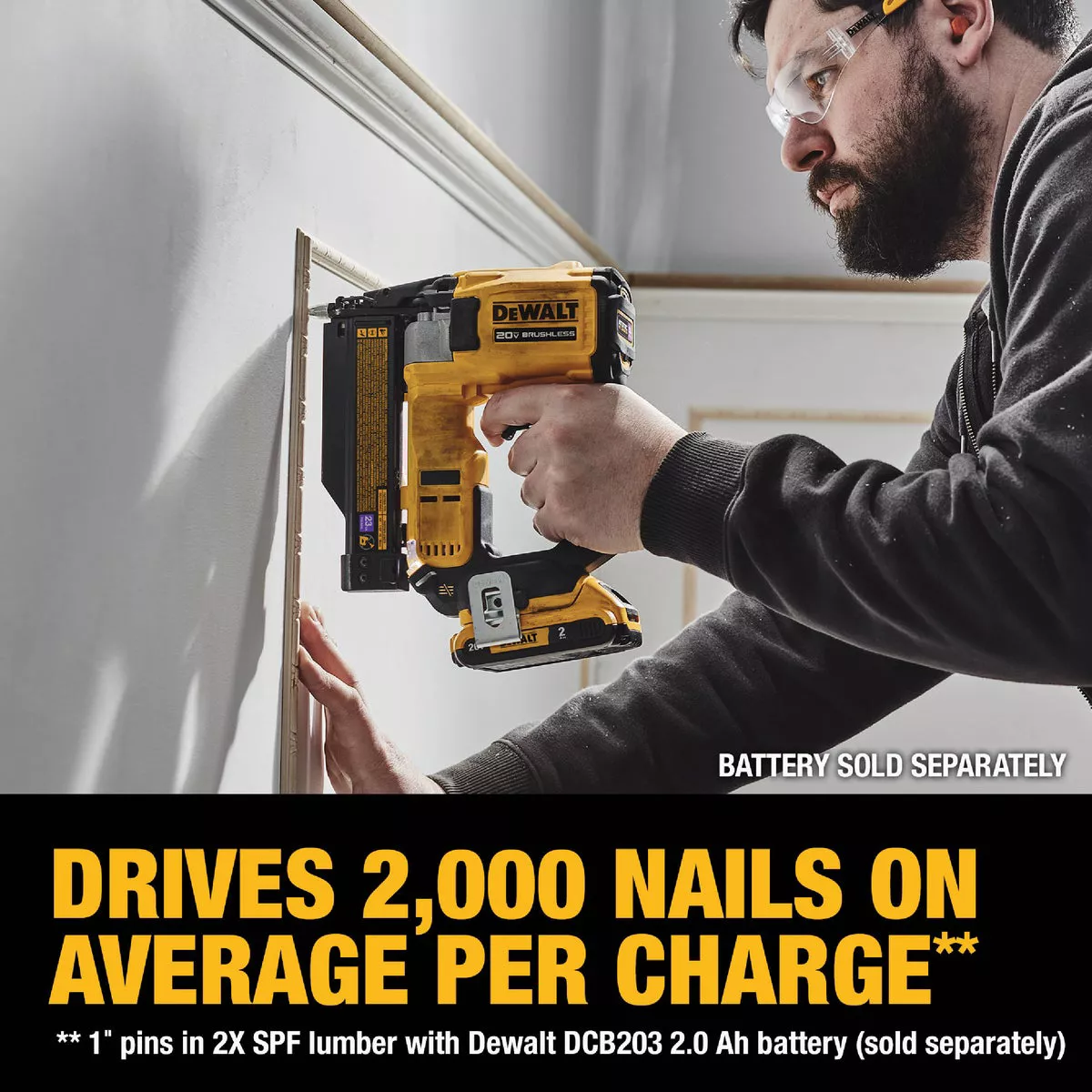

  • Drives 2,000 nails on average per charge when using 2.0h batter (DCB203)

Product manuals and information

Voltage 20
Warranty 3 Year
Battery Type Lithium-Ion
Charger Included No
Corded/Cordless Cordless
Case Included No
Motor Type Brushless
Batteries Included No
Gauge 23
Fastener Capacity 110
Firing Mode Sequential
Magazine Load Side Load
Battery Platform DEWALT 20V MAX

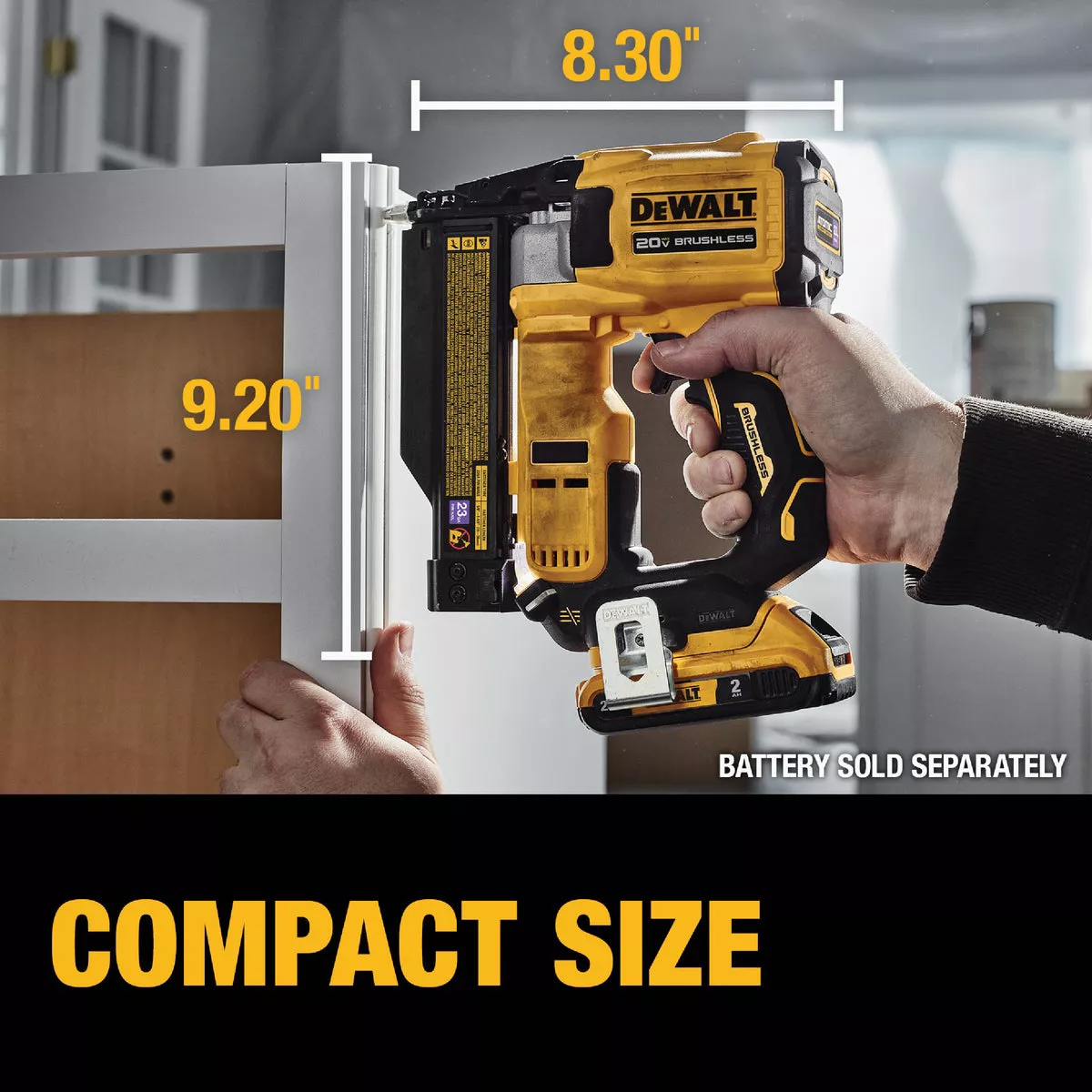

Width (In.) 3.15
Height (In.) 8.3
Length (In.) 9.2
Minimum Fastener Size 5/8 In.
Maximum Fastener Size 1-1/2 In.
Weight (Lb.) 4.1
UPC 00885911658003
