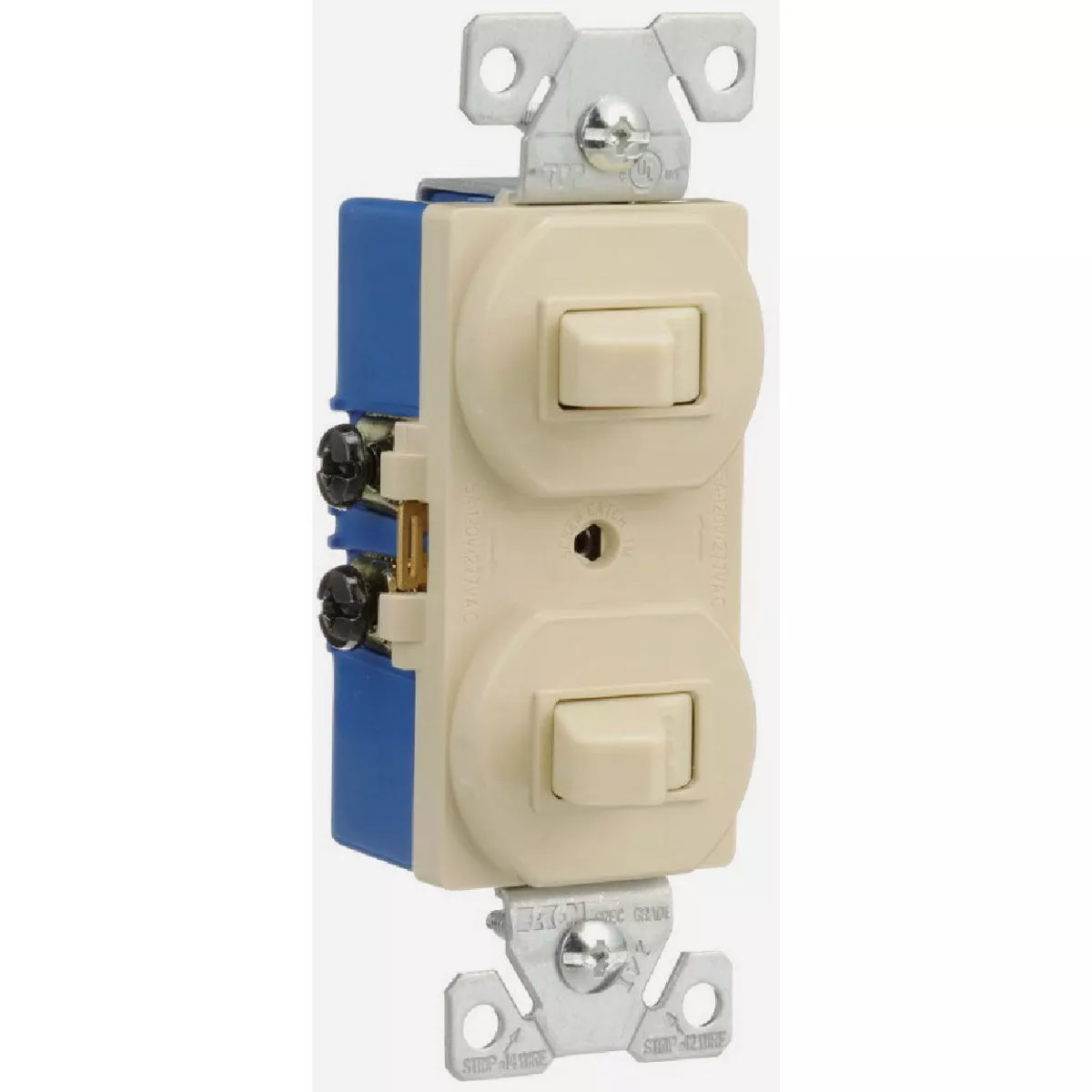

Eaton Single Pole Ivory 15A Duplex Switch
Model #271V-BOXItem #3ZMFSPUPC 00032664750304
Tap to view
Product overview
Eaton commercial grade combination switch. Accepts #14 -#12 AWG (American Wire Gauge). Each switch controls one light from one location. Automatic grounding eliminates need for bonding jumper in metal enclosures. Tri-combo head terminal and mounting screws, plus easy-access grounding terminal. Welded construction provides superior assembly security under heavy use. Strapped line ground contacts ensure solid contact; ground screw clamp provides secure wiring. Smooth face for ease of cleaning. Tapered back-wire openings handle multiple sizes and types, up to #10 AWG solid or stranded wire. Built-in wire stripper to speed installation. Oversized termination screws for simplified wire installation.
- (2) Single pole switches
- Each switch controls one light from one location
- Automatic grounding eliminates need for bonding jumper in metal enclosures
- Tri-combo head terminal and mounting screws, plus easy-access grounding terminal
- Welded construction provides superior assembly security under heavy use
- Strapped line ground contacts ensure solid contact; ground screw clamp provides secure wiring
- Smooth face for ease of cleaning
- Tapered back-wire openings handle multiple sizes and types, up to #10 AWG solid or stranded wire
- Built-in wire stripper to speed installation
- Oversized termination screws for simplified wire installation
Specifications
| Color | Ivory |
| Amperage | 15 |
| Voltage | 120/277 |
| Switch Type | Single Pole |
| Termination | Back & Side Wire |
| UL Listed | cULus Listed |
| Brand | Eaton |
| UPC | 00032664750304 |
| Product type | Duplex Switch |
