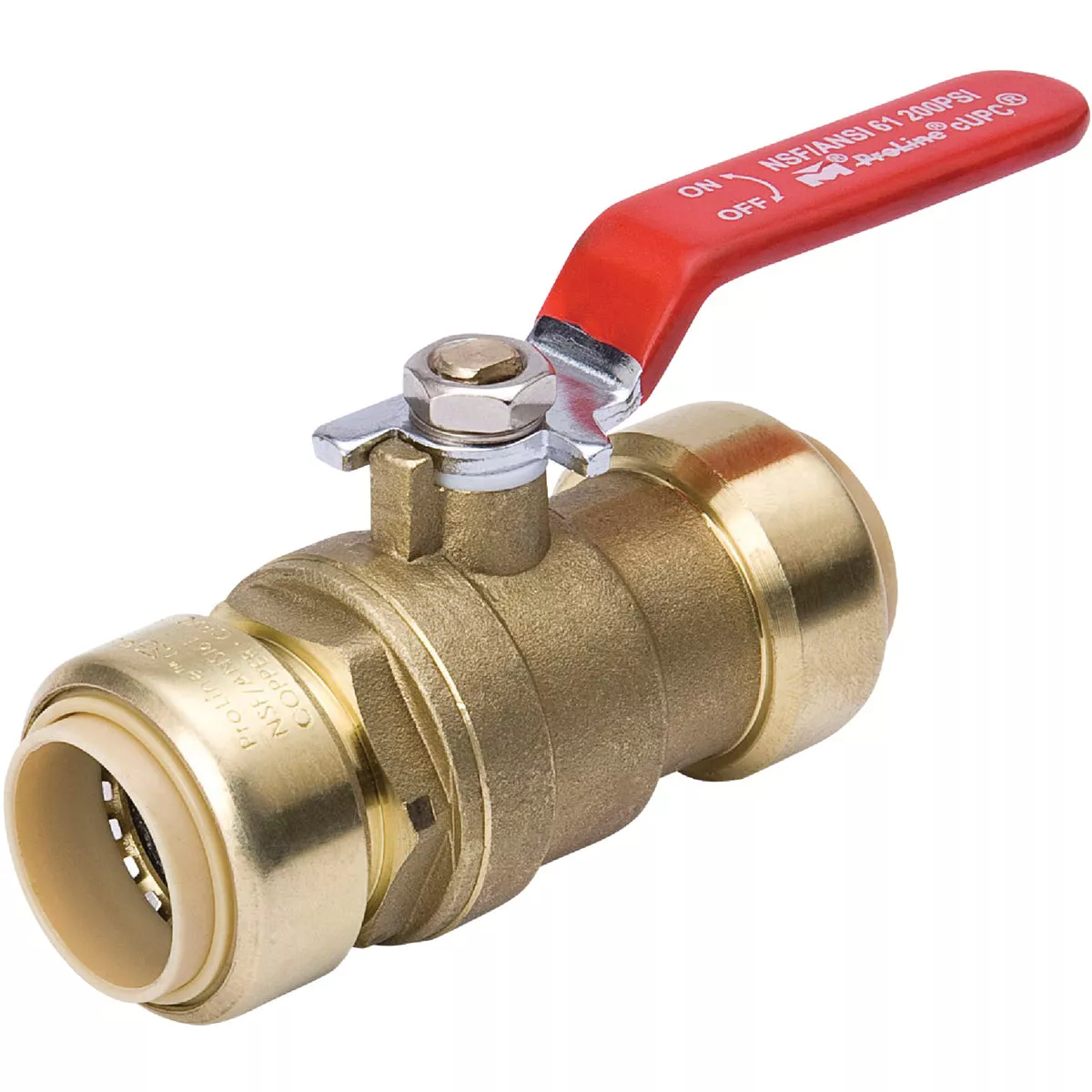

ProLine Brass 3/4 In. PF x 3/4 In. PF Ball Valve
Model #1107-064Item #400982UPC 00032888221802
Tap to view
Product overview
The Series 7690PF Ball Valve is our lighter ball valve line offering for ligt commercial and residental applications. Constructed of forged brass, this valve is designed to work with oil, gas and wate operations up to 600 PSI. This valve is deigned with a full port allowing for maximum flow rate and features a lever handle allowing for easy on/off operation. The packing gland feature allows for tightening the internal components when the stem leaks, ensuring a longer valve operational life. An additional feature of this valve is the push fit inlet and outlet, which allows for quick connections to copper, CPVC and PEX tube types.
Specifications
| Material | Brass |
| Type | Push Ball Valve |
| Finish | Brass |
| Pressure Rating | 200 psi |
| Temperature Rating | 200 F |
| Fitting Size 1 | 3/4 In. |
| Fitting Size 2 | 3/4 In. |
| Connection Type 1 | Push |
| Connection Type 2 | Push |
| Pressure Rating (psi) | 200 psi |
| Maximum Working Temperature (F) | 200 F |
| Brand | ProLine Series |
| UPC | 00032888221802 |
| Product type | Brass Valve |
