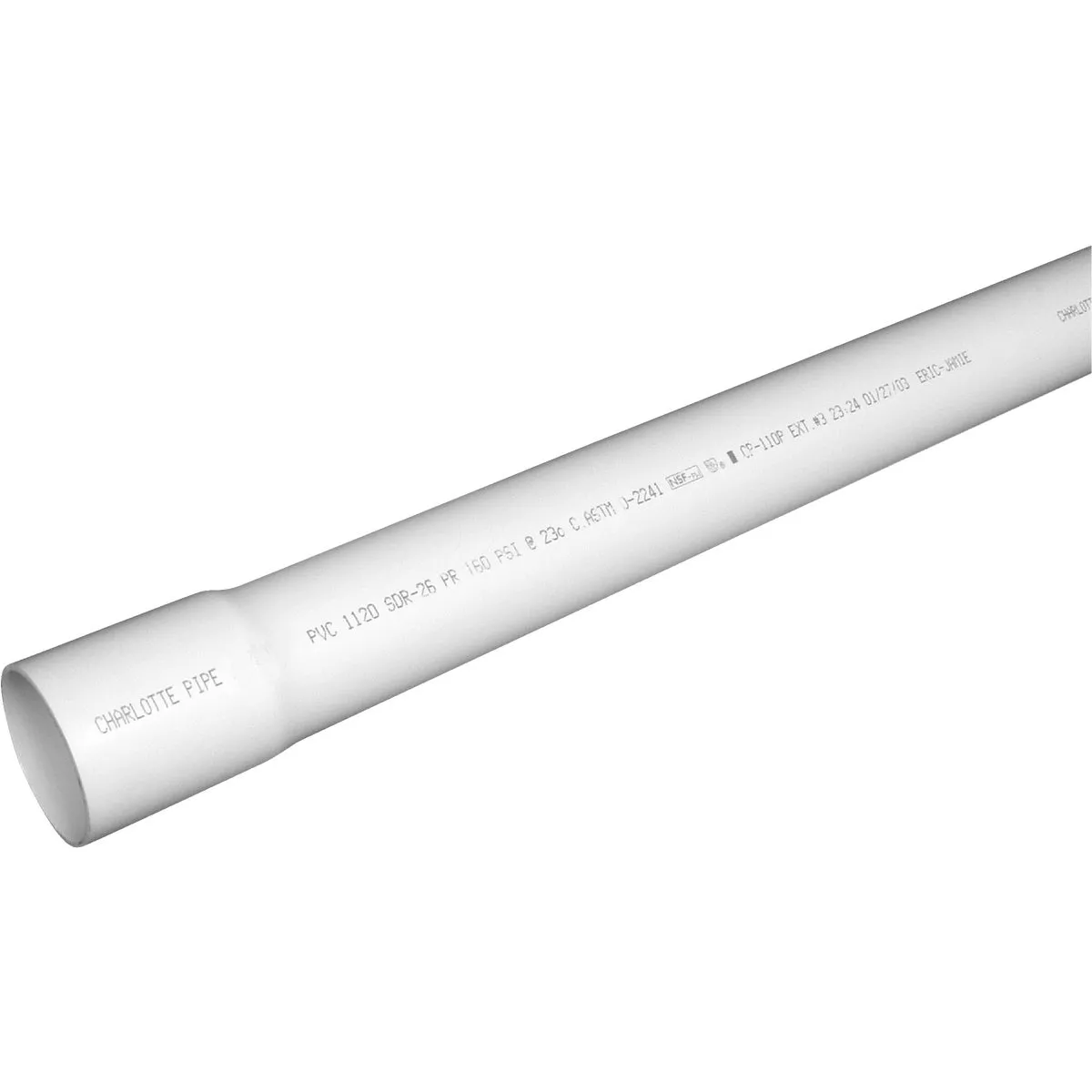

Charlotte Pipe 1-1/4 In. x 20 Ft. Cold Water PVC Pressure Pipe, SDR 26, Belled End
Model #PVC 16012B 0600 UPC 00611942042111
434586
Tap to view
Product overview
SDR 26 belled end cold water pipe is for pressure systems where the temperature will not exceed 140 F. They are highly resilient, with high tensile and high impact strength. All are inert to attack by many chemicals and can withstand high pressure for long periods. Do not use plastic pipe and fittings for compressed air systems. Rated at 160 psi.
- Conforms to standards: ASTM D 1784, ASTM D 1785, ASTM D 2241, and NSF 14 and 61
- Intended for pressure use
- SDR 26 white pipe with red print that is used in potable water applications only
- Maximum working temperature: 140 F
- SDR 26 is highly durable, with high tensile and impact strength
- SDR 26 pipe is used in irrigation, underground sprinkler systems, swimming pools, outdoor applications and cold water supply lines
- Requires no special tools for cutting and to be installed with solvent cement
Specifications
| Length | 20 Ft. |
| Color | WHITE |
| Size | 1-1/4 In. x 20 Ft. |
| Schedule | SDR 26 |
| Outside Diameter | 1.660 In. |
| Inside Diameter | 1-1/4 In. |
| Application | Water Supply |
| Wall Thickness | 0.064 In. |
| Pressure Rating | 160 psi |
| Temperature Rating | 140 F |
| Standard Dimension Ratio | SDR 26 |
| Pressure Rating (psi) | 160 |
| Maximum Working Temperature (F) | 140 |
| Brand | Charlotte Pipe |
| UPC | 00611942042111 |
| Product type | PVC Pressure Pipe |
Product manuals and information
- Buying Guides
- Related Product Articles
- California Prop-65 WarningWARNING:
This product can expose you to chemicals including Titanium Dioxide which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
WARNING:This product can expose you to chemicals including Titanium Dioxide which is known to the State of California to cause cancer. For more information go to www.p65warnings.ca.gov
- Request Safety Data Sheet (SDS)
